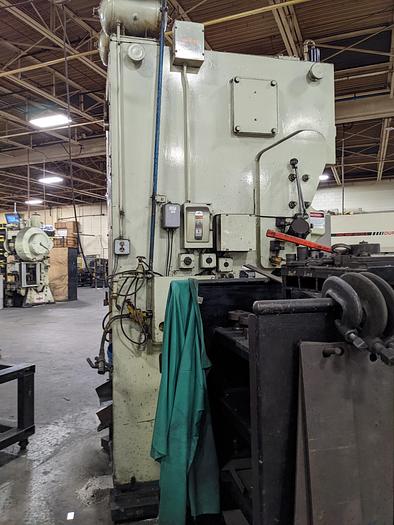

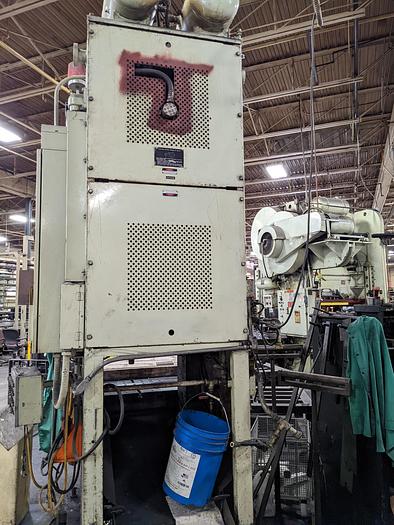

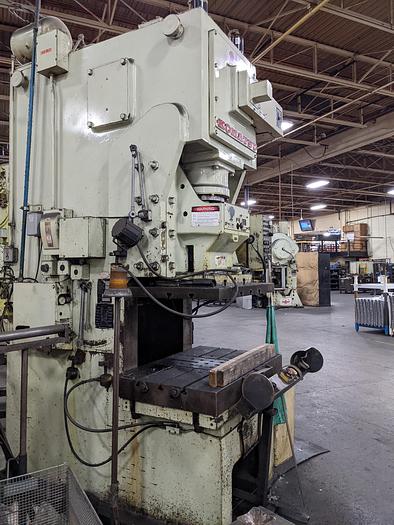

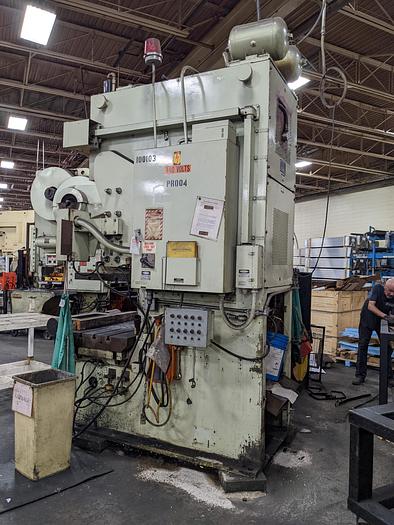

1986 Komatsu 121 Ton OBI Punch Press 110-2 OBS
1986 Komatsu 121 Ton OBI Punch Press 110-2 OBS
$34,500 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:
Dual sensor buttons for run air clutch & brake; air counterbalance; back geared type
Push buttons for start/stop
Key selector switch for inch – off- single – continuous
Selector switch for motor forward/reverse
Power ram adjustment w/control & position indicator
Wintriss clutch & brake control
Automatic oil lubrication w/pump
Crank angle indicator
Air surge tank
Knockout slot in slide
Production counter
Specifications
| Manufacturer | Komatsu 121 Ton OBI Punch Press |
| Model | 110-2 OBS |
| Year | 1986 |
| Condition | Used |
| Serial Number | 11255 |
| Stock Number | 10903 |
| Stroke | 5.9" |
| Slide adjustment | 3.94" |
| Shut height S.D.A.U. (to top of bed) | 18" |
| Shut height S.D.A.U. (to top of bolster) | 15" |
| Area of bed | 43.6" L-R x 27.6" F-B |
| Bolster thickness | 3" (T-slotted) |
| Area of slide | 23.6" L-R x 17.72" F-B |
| Shank hole diameter | 3-1/8" |
| Throat depth | 14.5" |
| Opening through back | 22.8" |
| Floor to top of bed | 36" |
| S.P.M. approximate | 32-65 |
| Motor | 15 HP, 1765 RPM, 230/460/3/60, variable |
| Approximate dimensions | 64" L-R x 87" F-B x 134" H |
| Approximate weight | 24,000 LBS |
