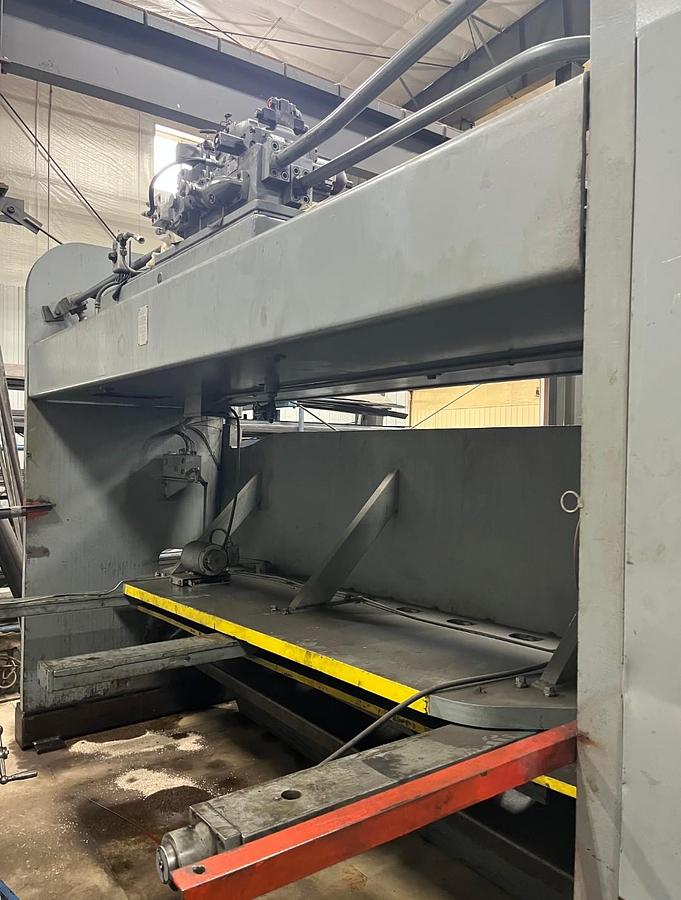

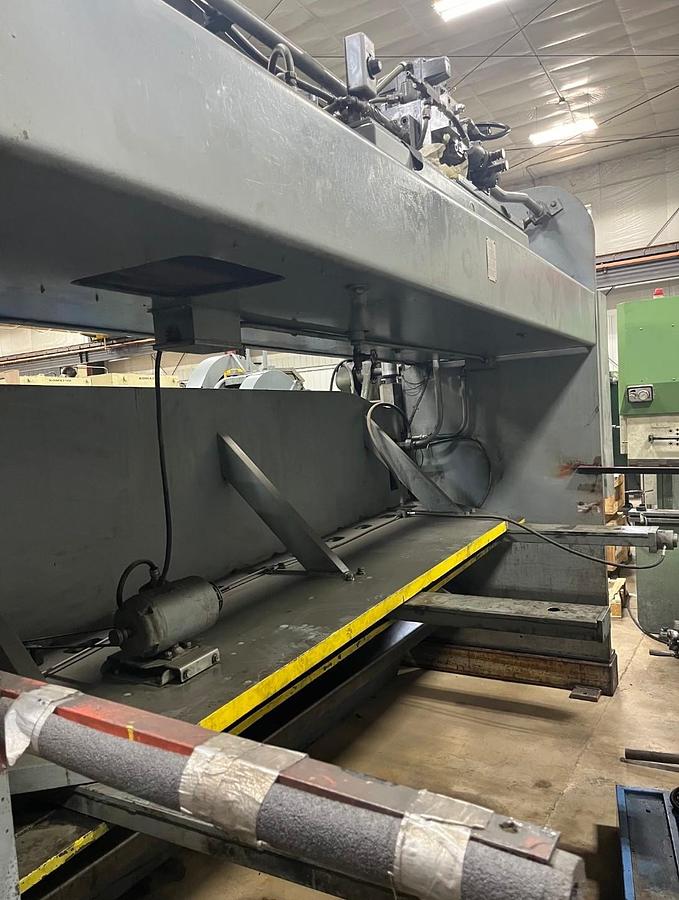

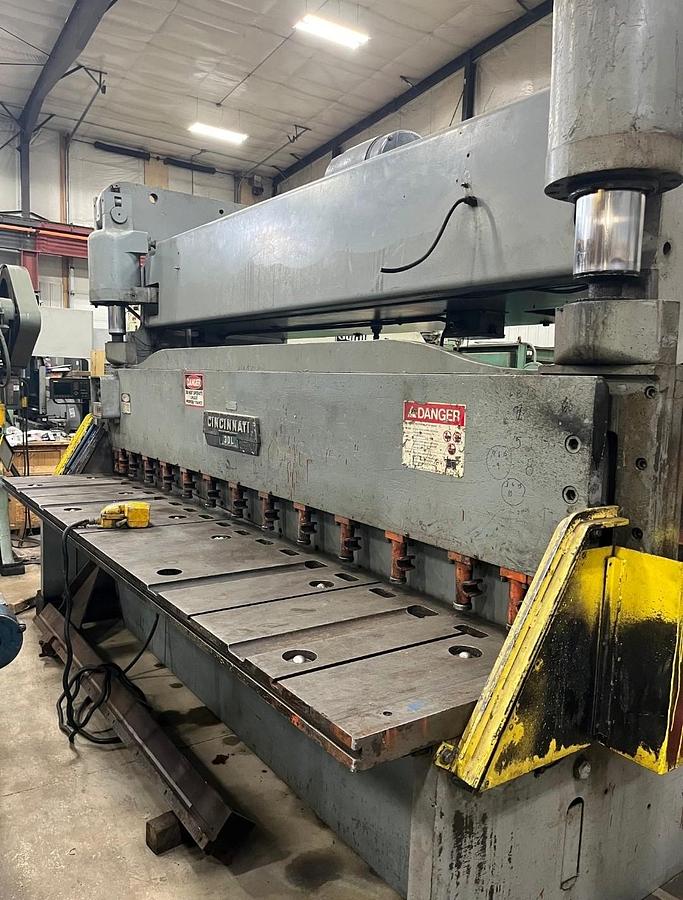

Cincinnati 12' x 3/8" Hydraulic Shear 3DL12
Cincinnati 12' x 3/8" Hydraulic Shear 3DL12
$32,500 (USD)
Location:Orange City, IA
orCall 712-737-8700
Description
Equipped with:

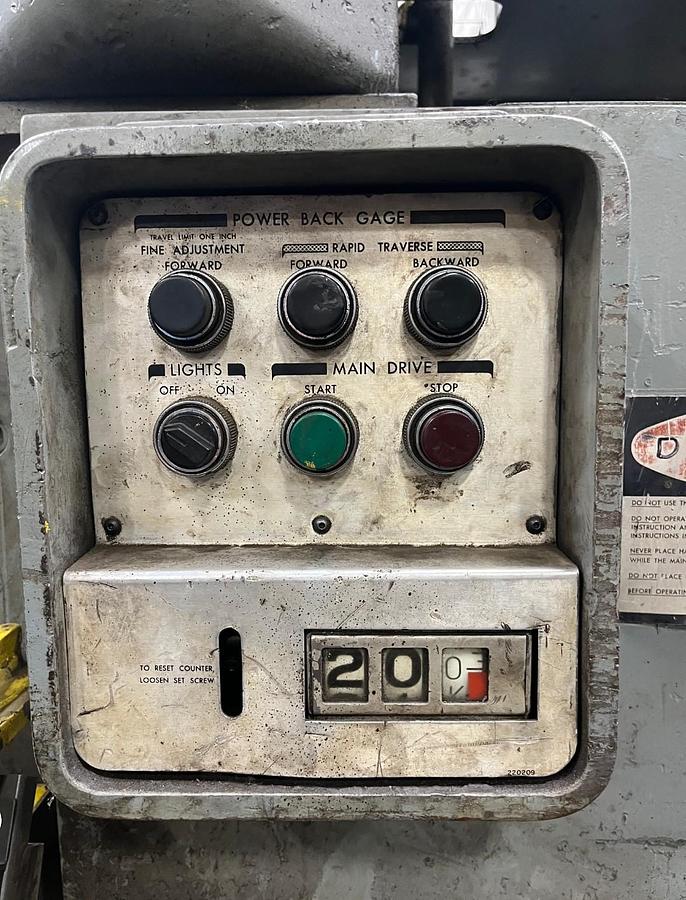

36” front operated power back gauge
Over rake for thicker material

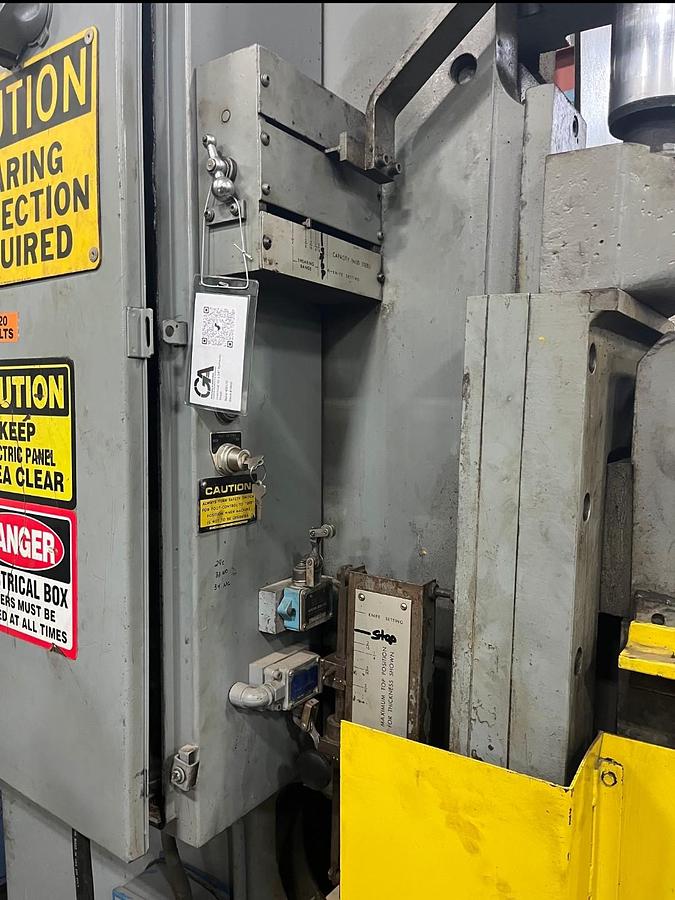

Light curtains by front hold downs
Specifications
| Manufacturer | Cincinnati 12' x 3/8" Hydraulic Shear |
| Model | 3DL12 |
| Condition | Used |
| Serial Number | 38644 |
| Stock Number | 10932 |
| Overall cutting length | 148" |
| Distance between uprights | 12' 3" |
| Cut capacity at 9/32 rake | 3/8" |
| Cut capacity at 7/16 rake | 1/2" mild steel x 6' |
| Length in gap | 18" |
| Strokes per minute full length | 24 SPM |
| Strokes per minute at 24" | 50 SPM |
| Main motor | 30 HP |
| Machine weight | 34,000 LBS |
| Below grade | Yes, 12" but on permanent risers |
| Machine Dimensions | 14' 8" x 9' 4" x 9'H |
