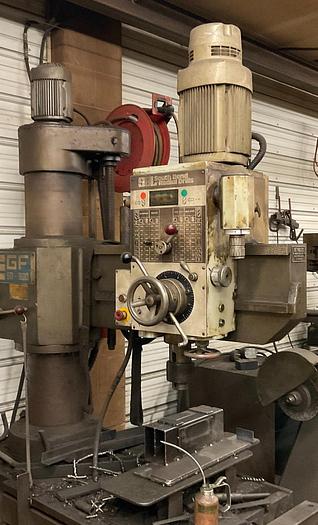

Southbend Radial Drill 6F SO 800
Southbend Radial Drill 6F SO 800
$6,950 (USD)
Location:Iowa
or
Call 712-737-8700
Description
Equipped with:
Power elevations
Built in coolant
Reversing spindle for tapping
Specifications
| Manufacturer | Southbend Radial Drill |
| Model | 6F SO 800 |
| Condition | Used |
| Stock Number | 11008 |
| Drilling capacity | 2", 4 Morse Taper |
| Column diameter | 10" |
| Arm length | 31" |
| Maximum open height | 27-7/16" |
| Working surface | 25" x 33" |
| Spindle stroke | 9-1/2" |
| Spindle speeds | 40 to 1,750 RPM |
| Spindle feeds | 0.00189 to 0.0138 IPR |
| Motor | 3.5/2.2 HP |
| Machine dimensions | 48" x 28" x 84" |
| Machine weight | 4,000 LBS |
