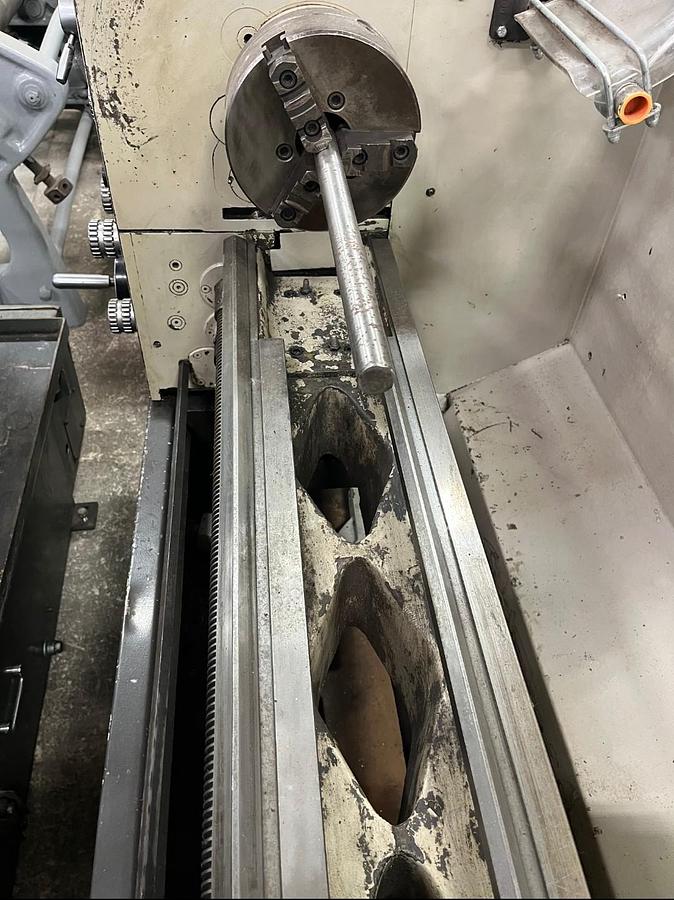

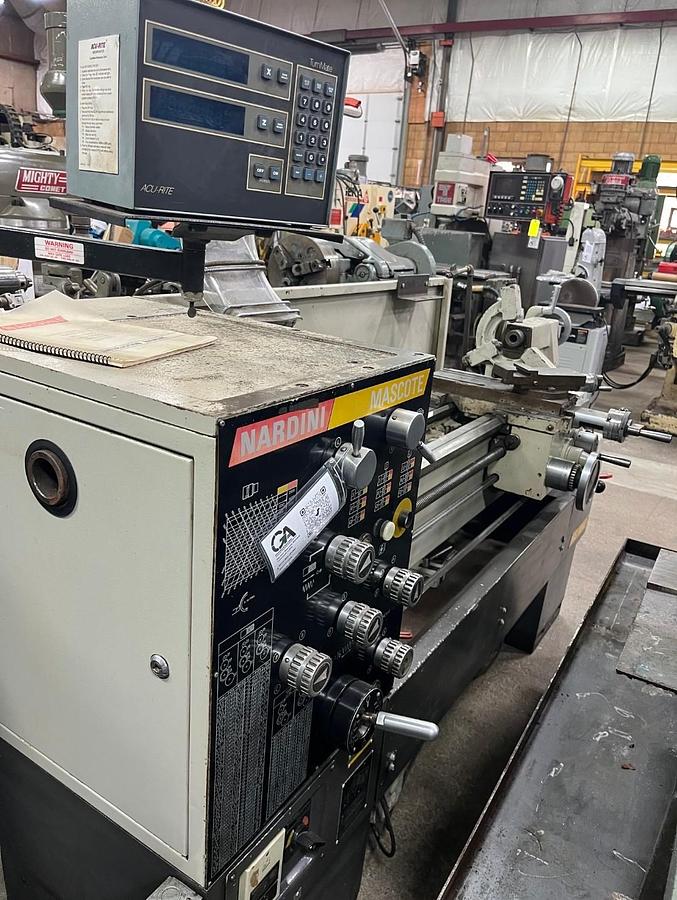

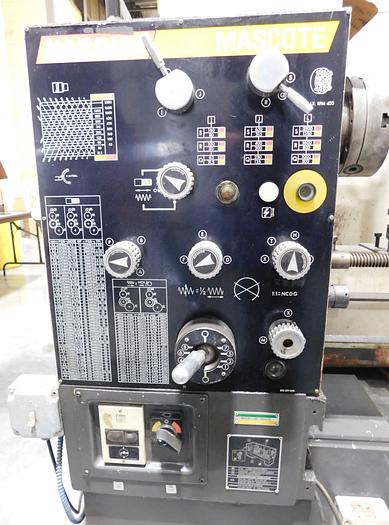

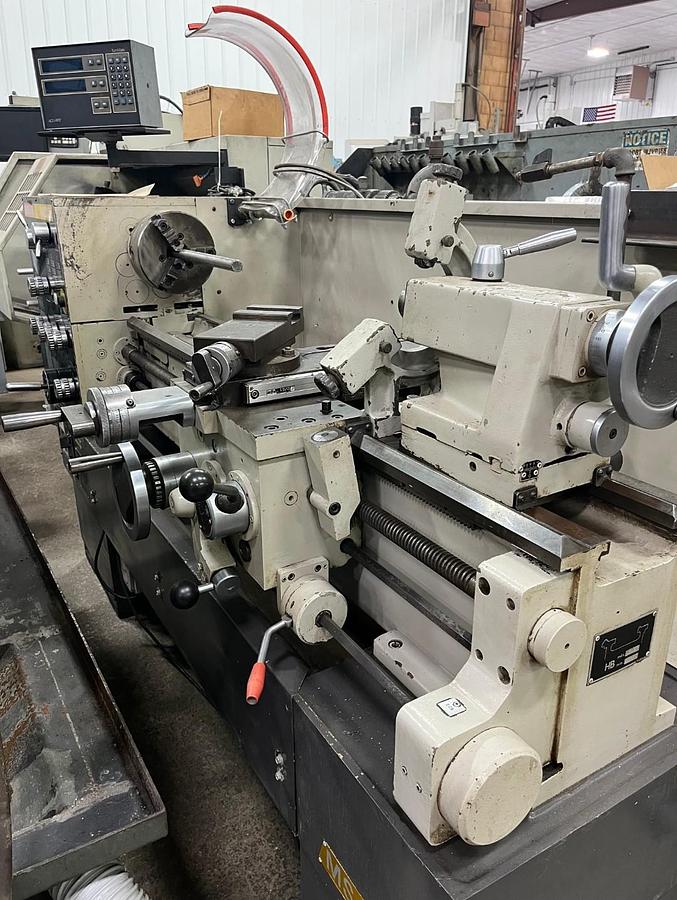

Nardini 1440 Toolroom Lathe Mascote MS1440

Nardini 1440 Toolroom Lathe Mascote MS1440

$12,500 (USD)

Location:Orange City, IA

or
Call 712-737-8700

Description

Equipped with:

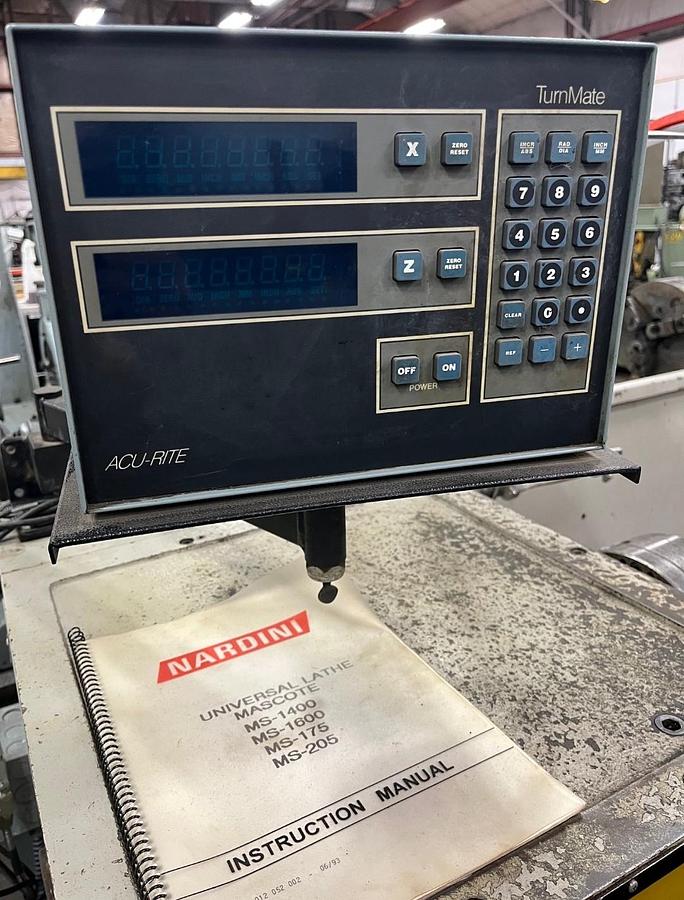

Acu-Rite 2 axis DRO                                     Follow rest

8” 3 jaw chuck w/reversable top jaws           Thread dial

Taper attachment                                          Chuck guard

10” 4 jaw chuck                                             Coolant

Steady rest                                                    Manuals

Specifications

ManufacturerNardini 1440 Toolroom Lathe
ModelMascote MS1440
ConditionUsed
Serial NumberD4-JEV983
Stock Number11026
Swing over bed14"
Swing in gap20"
Distance between centers42"
Spindle speeds31.5-2500 RPM
Hole through spindle1-13/16"
Spindle mountD1-5
Tailstock taper3MT
Feeds0.0016-0.0399
Threads (inch)3 1/2-42 TPI
Threads (metric)0.4-7 mm
Main motor7 HP, 440V
Machine dimensions84" x 40" x 50"
Machine weight3,700 LBS

Documents
