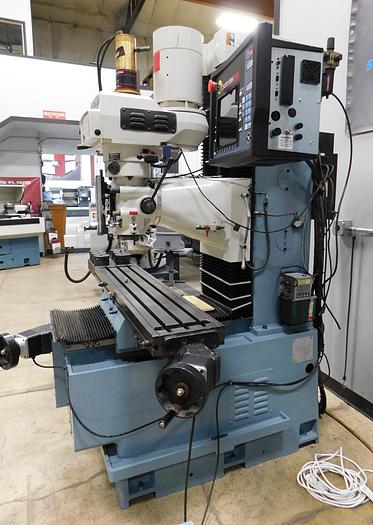

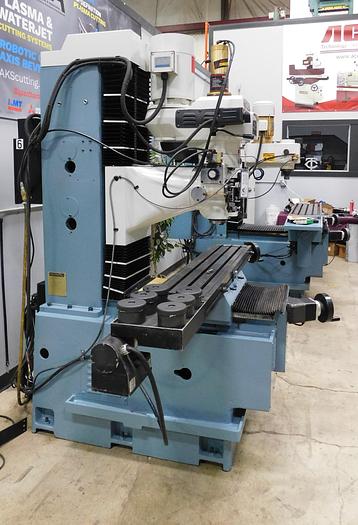

TRAK DPM3 CNC Bed Mill w/NEW TRAK SMX Control DPM SX3
Sold
TRAK DPM3 CNC Bed Mill w/NEW TRAK SMX Control DPM SX3
$21,500 (USD)
Location:Orange City, IA
Description
Equipped with:
Power draw bar
Electronic handwheels

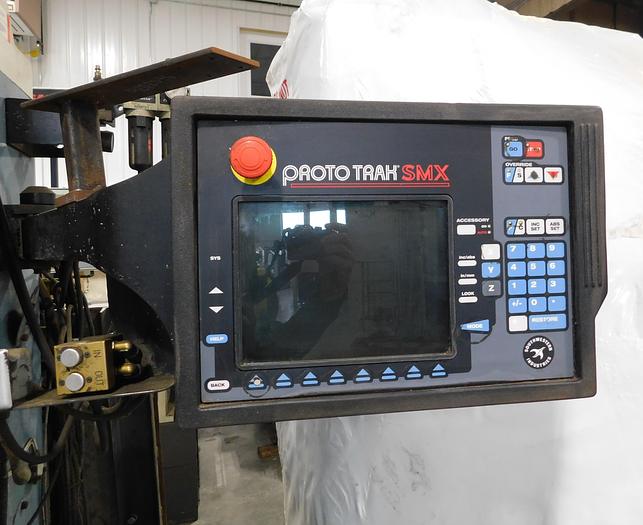

SMX control
Electronic spindle control
Specifications
| Manufacturer | TRAK DPM3 CNC Bed Mill w/NEW TRAK SMX Control |
| Model | DPM SX3 |
| Condition | Used |
| Serial Number | 064CF15020 |
| Stock Number | 11027 |

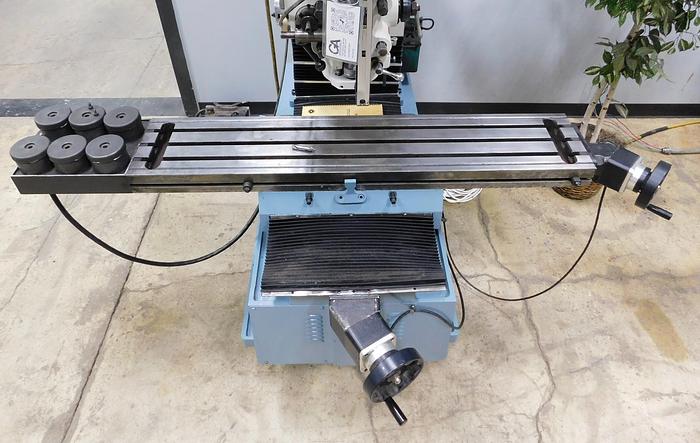

| Table size | 10" x 50" |
| Table travels | 17" x 31" |
| Z axis travel | 20" |
| Quill travel | 5" |
| Quill diameter | 3-15/16" |
| Quill taper | #40 |
| Spindle speeds | 70-4200 RPM |
| Spindle center to column | 17.3" |
| Quill feeds | 0.015, 0.04, 0.08 |
| Main motor | 5 HP |
| Maximum work load on table | 1,310 LBS |
| Maximum drilling capacity | 1.5" |
| Tapping capacity | 1.25" |
| Boring capacity | 4.75" |
| Machine Dimensions | 70" x 72" x 89" |
| Machine weight | 4,500 LBS |
