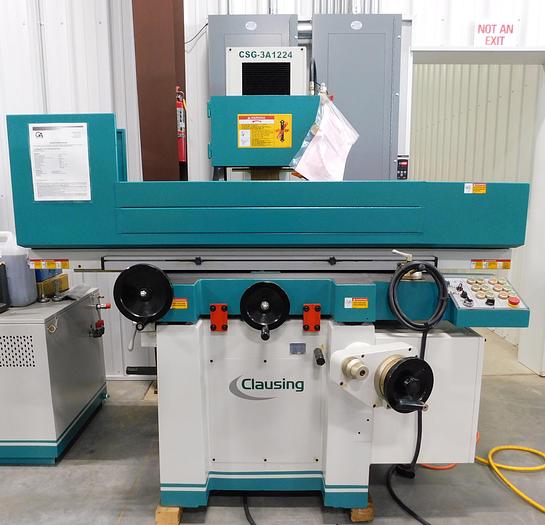

Clausing 12" x 24" Automatic Surface Grinder CSG3A1224

Clausing 12" x 24" Automatic Surface Grinder CSG3A1224

Contact us for price

Location:Orange City, IA

or
Call 712-737-8700

Description

Equipped with:

Tool box and tools                                Auto lubrication system

Balancing stand                                    Diamond dresser

Leveling screws and blocks                  3 axis movement w/micro downfeed

Work light

Wheel flange

Specifications

ManufacturerClausing 12" x 24" Automatic Surface Grinder
ModelCSG3A1224
ConditionNew
Serial NumberEITBB0171
Stock Number11031
Table size11-13/16" x 23-5/6"
Maximum grinding length23-5/8"
Maximum grinding width11-13/16"
Maximum distance from table to center line23"
Standard magnetic chuck size11-13/16" x 23-5/8"
Table speed (variable)196-984 IPM
Cross traverse travel12.2"
Handwheel graduation0.0001
Maximum spindle drive1750 RPM
Power rating5 HP
Grinding wheel size12" x 1.25" x 3" Bore
Hydraulic motor rating2 HP
Floor space106.5" x 63" x 73"
Machine weight5,038 LBS
