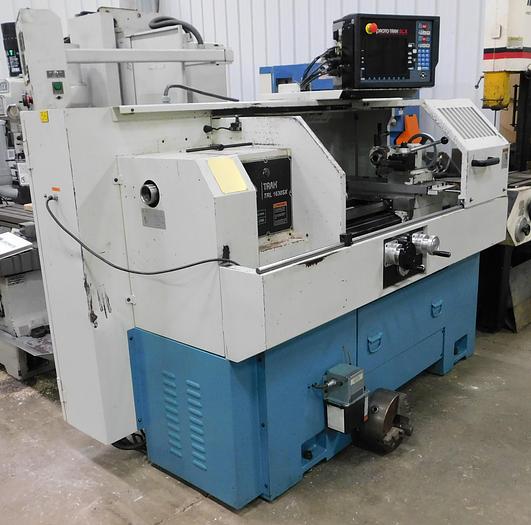

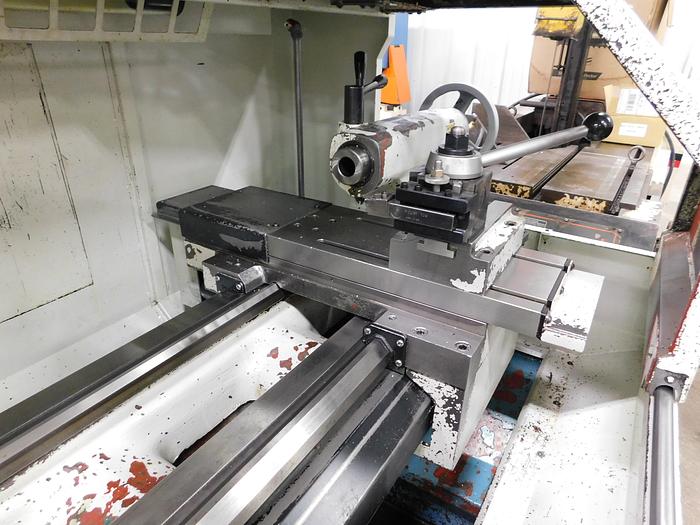

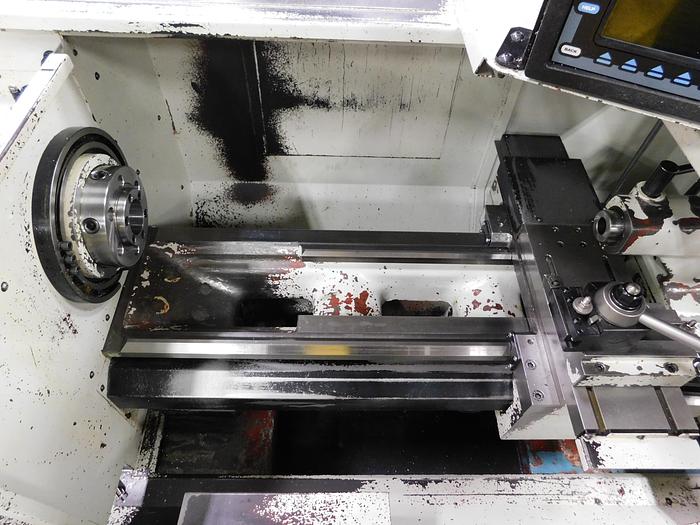

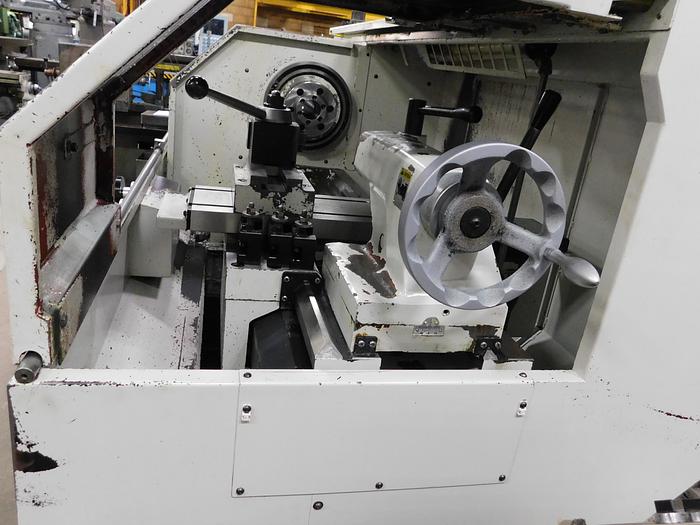

TRAK 1630SX Manual/CNC Toolroom Lathe
TRAK 1630SX Manual/CNC Toolroom Lathe
$22,500 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:

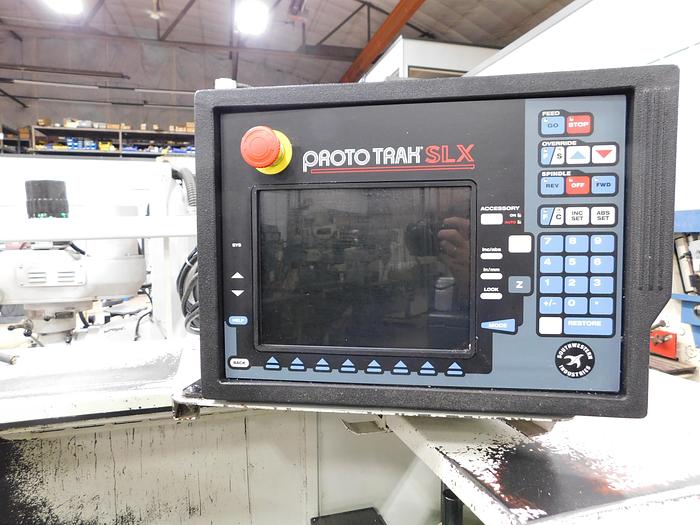

ProtoTRAK SLX CNC control
Automatic lubrication system
Coolant system
10” adjust through 3 jaw chuck
Aloris tool post and holders
Specifications
| Manufacturer | TRAK 1630SX Manual/CNC Toolroom Lathe |
| Model | 1630SX |
| Condition | Used |
| Serial Number | 073CH15709 |
| Stock Number | 11069 |
| Swing over bedways | 16" |
| Distance between centers | 30" |
| Swing over cross slide | 8.6" |
| Spindle taper | D1-6 |
| Spindle bore | 2.120" |
| Spindle speed range | 150-2500 RPM |
| Taper on tailstock | 5MT |
| Main motor | 7.5 HP, 220V |
| Machine Dimensions | 52" x 46" x 67" |
| Machine weight | 2,500 LBS |
