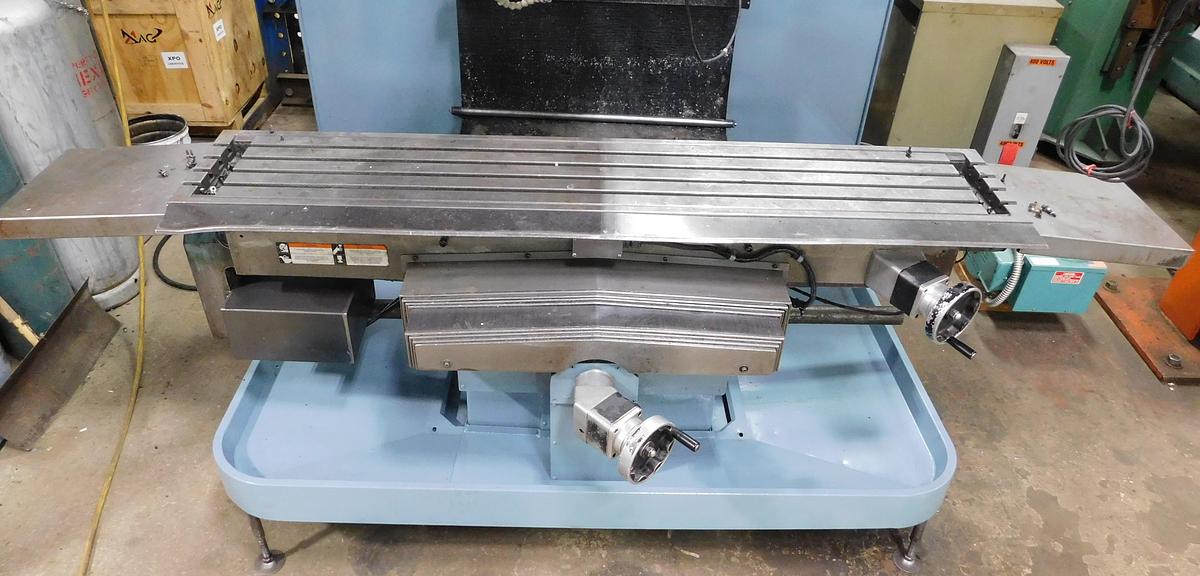

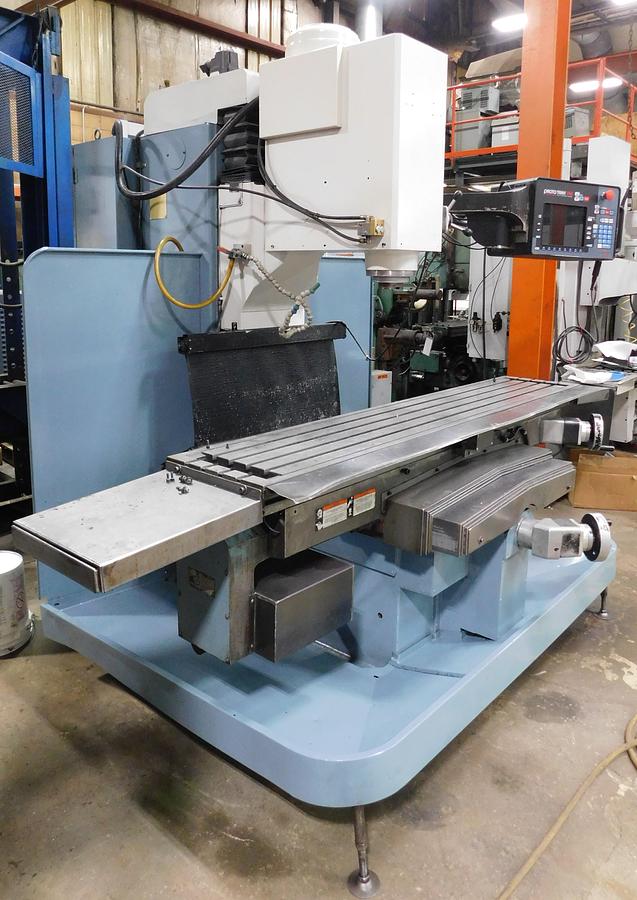

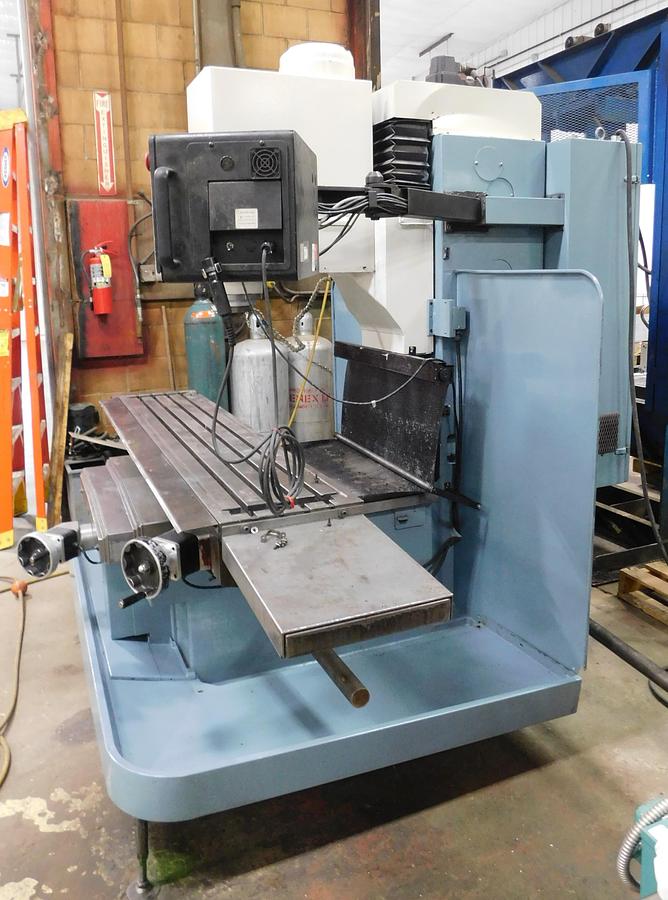

2005 TRAK DPM V7 CNC Vertical Milling Machine DPM V7
Sold
2005 TRAK DPM V7 CNC Vertical Milling Machine DPM V7
$27,500 (USD)
Location:Orange City, IA
Description
Equipped with:

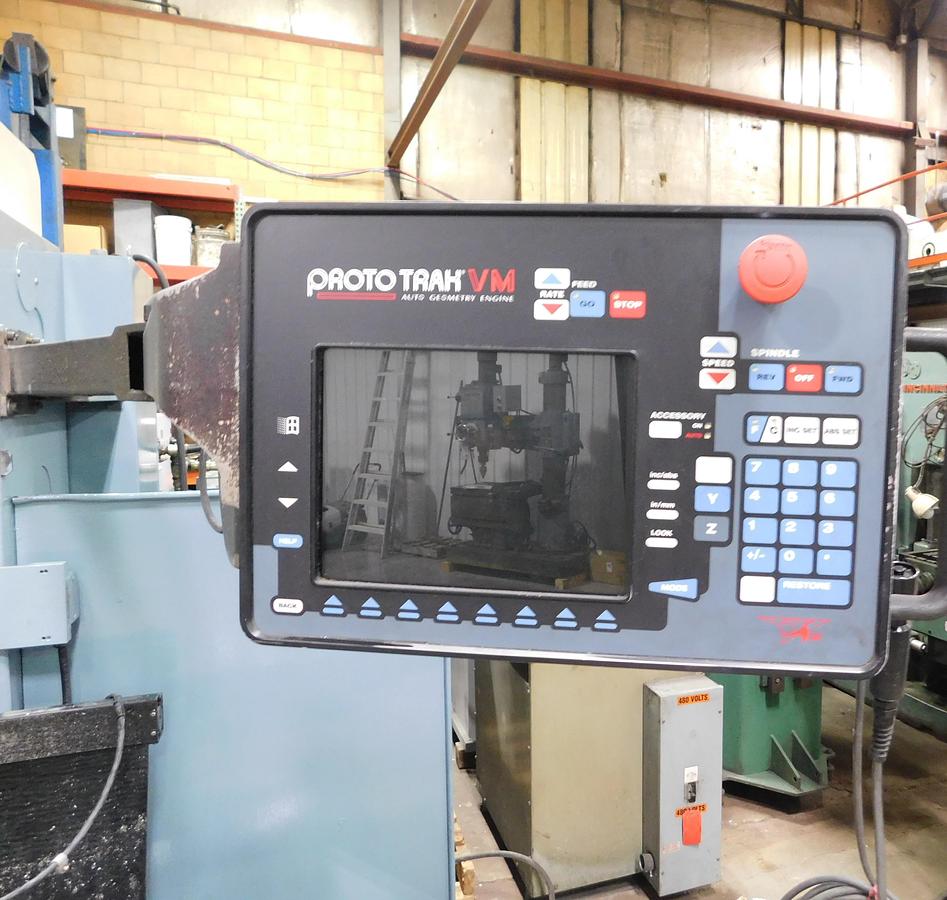

VM control
Advanced features
Electronic handwheels
Programmable spindle
TRAKing
Power drawbar
Specifications
| Manufacturer | TRAK DPM V7 CNC Vertical Milling Machine |
| Model | DPM V7 |
| Year | 2005 |
| Condition | Used |
| Serial Number | 054AZ 13951 |
| Stock Number | 11104 |
| Table size | 76" x 14' |
| Table travels | 60" x 23" |
| Column travel | 205" |
| Spindle taper | 40 taper |
| Main spindle | 7.5 HP, 220V, 3 PH |
| Spindle speeds | 200-5,000 RPM |
| Spindle center to column | 23.75" |
| Spindle nose to table | 0-21.5" |
| Maximum table load | 2,200 LBS |
| Table height from floor | 38" |
| Approximate dimensions | 110" x 93" x 92" |
| Machine weight | 7,975 LBS |
