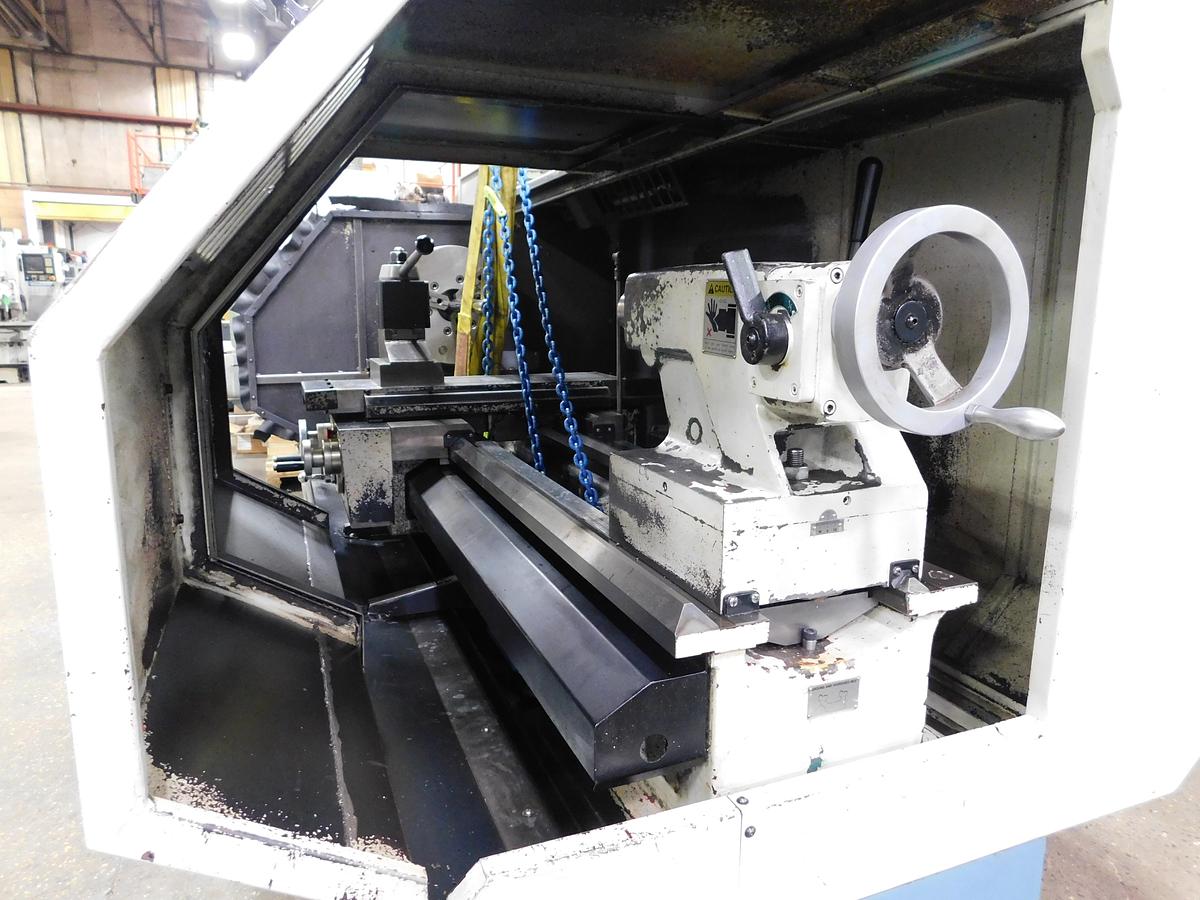

2016 TRAK TRL2460SX 24" x 60" CNC Toolroom Lathe TRL2460SX
2016 TRAK TRL2460SX 24" x 60" CNC Toolroom Lathe TRL2460SX
$29,500 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:

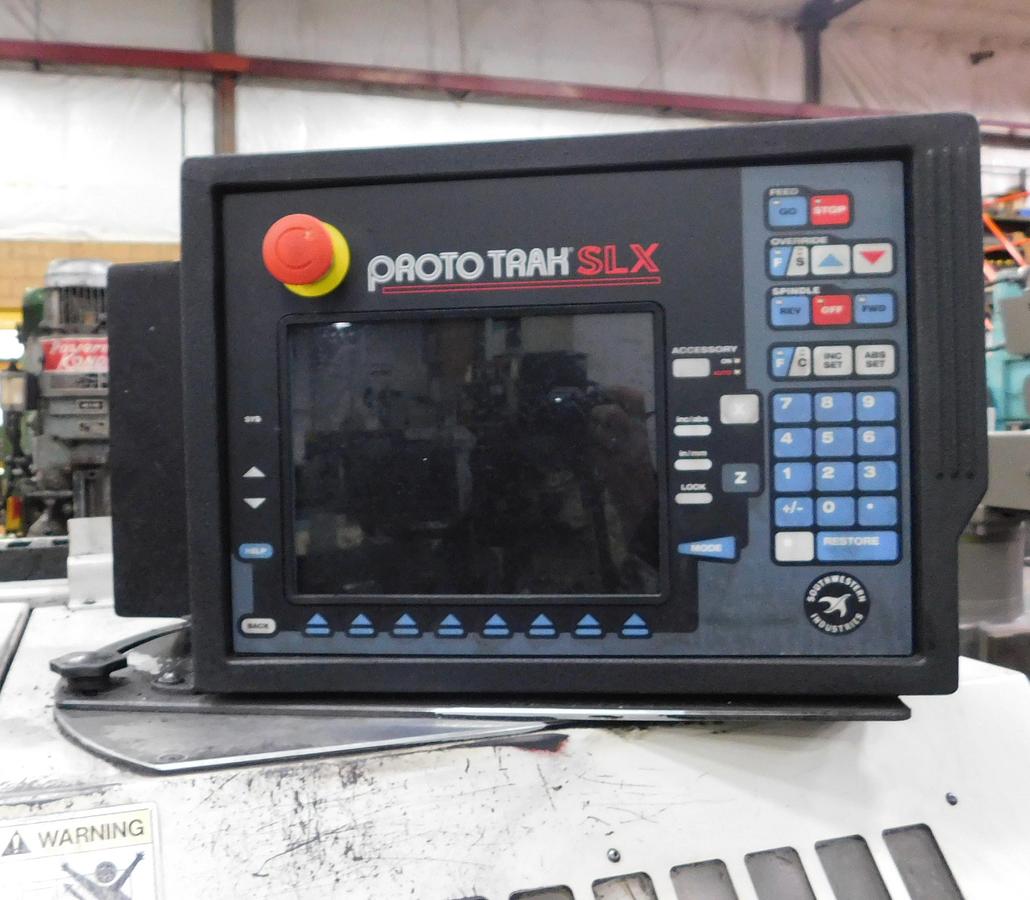

TRAK SMS control
15” 3 jaw chuck w/removable jaws
Aloris tool post
Automatic lubrication
Removable chip pan
Specifications
| Manufacturer | TRAK TRL2460SX 24" x 60" CNC Toolroom Lathe |
| Model | TRL2460SX |
| Year | 2016 |
| Condition | Used |
| Serial Number | 082CV16S66 |
| Stock Number | 11121 |
| Swing over bed | 24" |
| Distance between centers | 60" |
| Swing over cross slide | 14.5" |
| Hole through spindle | 4-1/8" |
| Spindle taper | D1-8 |
| Spindle speeds | 40-570 RPM (low), 100-1800 RPM (high) |
| Tailstock taper | 5MT |
| Tailstock quill taper | 6.88, 2 speed |
| Main motor | 15 HP |
