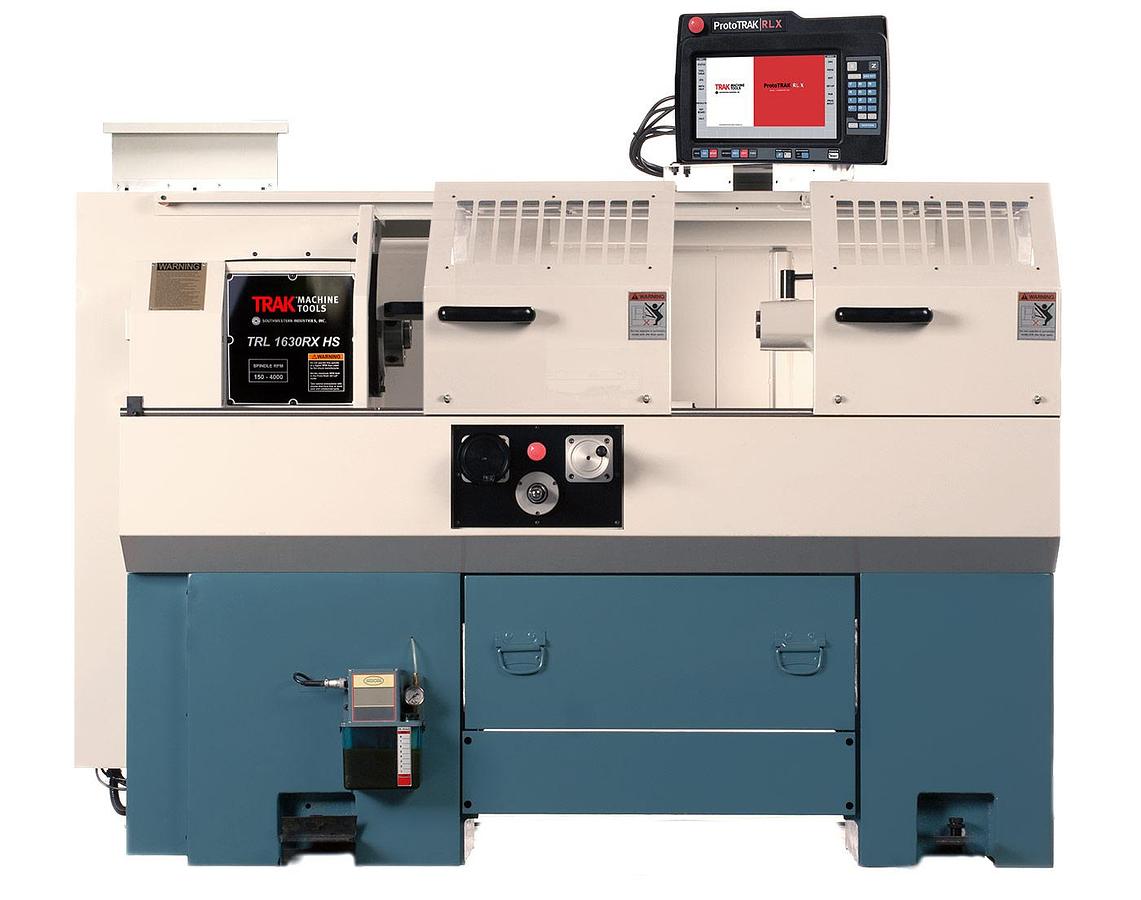

TRAK TRL 1630HS-RX CNC Lathe w/RLX Control

TRAK TRL 1630HS-RX CNC Lathe w/RLX Control

Contact us for price

Location:California

or
Call 712-737-8700

Description

Available options for additional cost:

Coolant pump

LED work lights

Buck chuck

4 or 8 station turrets

Tailstock

Tooling kit

5C collet closer

Faceplate

Follow rest

Steady rest

Remote stop/go switch

Limit switches

Extended warranty

TRAKing

CAM file out converter

Auxiliary output

Offline programming

DXF converter

Advanced features w/verify

MTConnect


Specifications

ManufacturerTRAK TRL 1630HS-RX CNC Lathe w/RLX Control
ModelTRL 1630HS-RX
ConditionNew
Stock NumberTRAK TRL1630HS-RX
Height of centers8"
Distance between centers30"
Swing over bed16"
Swing over saddle wings16"
Swing over cross slide8.6"
Cross slide travel8.5"
Tool section max3/4"
Coolant tank capacity8 gallons
Coolant pump motor1/8 HP
Bed width12.6"
Bed height12.6"
Spindle noseA2-4
Spindle through hole1.57"
Spindle taperMT#5
Spindle diameter front bearing2.56"
Number of bearings5
Number of spindle speed ranges1
Spindle speed range150-4000 RPM
Spindle motor7.5 HP
Voltage200-240V
Main motor200V/3PH/60Hz
Quill travel5.75"
Quill diameter2.36"
Quill taperMT#4
Machine dimensions82" x 40" x 71"
Machine weight2,750 LBS
