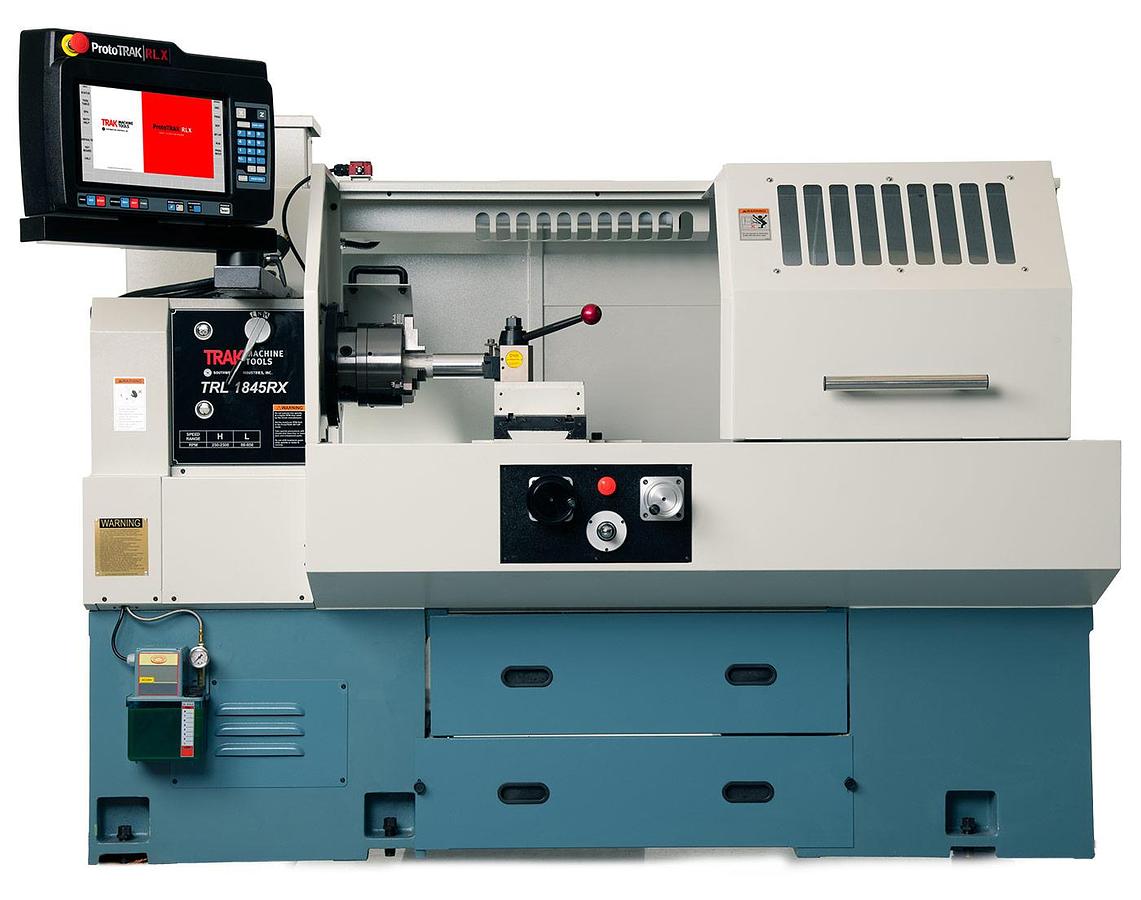

TRAK TRL 1845RX CNC Lathe w/RLX Control

TRAK TRL 1845RX CNC Lathe w/RLX Control

Contact us for price

Location:California

or
Call 712-737-8700

Description

Available options for additional cost:

Coolant pump

LED work lights

Buck chuck

4 or 8 station turrets

Tooling kit

5C collet closer

Faceplate

Follow rest

Steady rest

Remote stop/go switch

Limit switches

Extended warranty

TRAKing

CAM file out converter

Auxiliary output

Offline programming

DXF converter

Advanced features w/verify

MTConnect


Specifications

ManufacturerTRAK TRL 1845RX Lathe w/RLX CNC
ModelTRL 1845RX
ConditionNew
Stock NumberTRAK TRL1845RX
Height of centers9"
Distance between centers45"
Swing over bed18.1"
Swing over saddle wings17"
Swing over cross slide9.13"
Cross slide travel10.6"
Tool section max1"
Coolant tank capacity13 gallons
Coolant pump motor1/8 HP
Bed width13.4"
Bed height12.4"
Spindle noseD1-6
Spindle through hole2.36"
Spindle taperMT#6
Spindle diameter front bearing3.35"
Number of bearings2
Number of spindle speed ranges2
Spindle speed range80-850, 250-2500 RPM
Spindle motor10 HP
Voltage200-240V
Main motor200V/3PH/60Hz
Quill travel6"
Quill diameter2.56"
Quill taper4 MT
Maximum rapid400 IPM on Z axis
Machine dimensions88.5" x 49" x 61"
Machine weight3,2858 LBS
