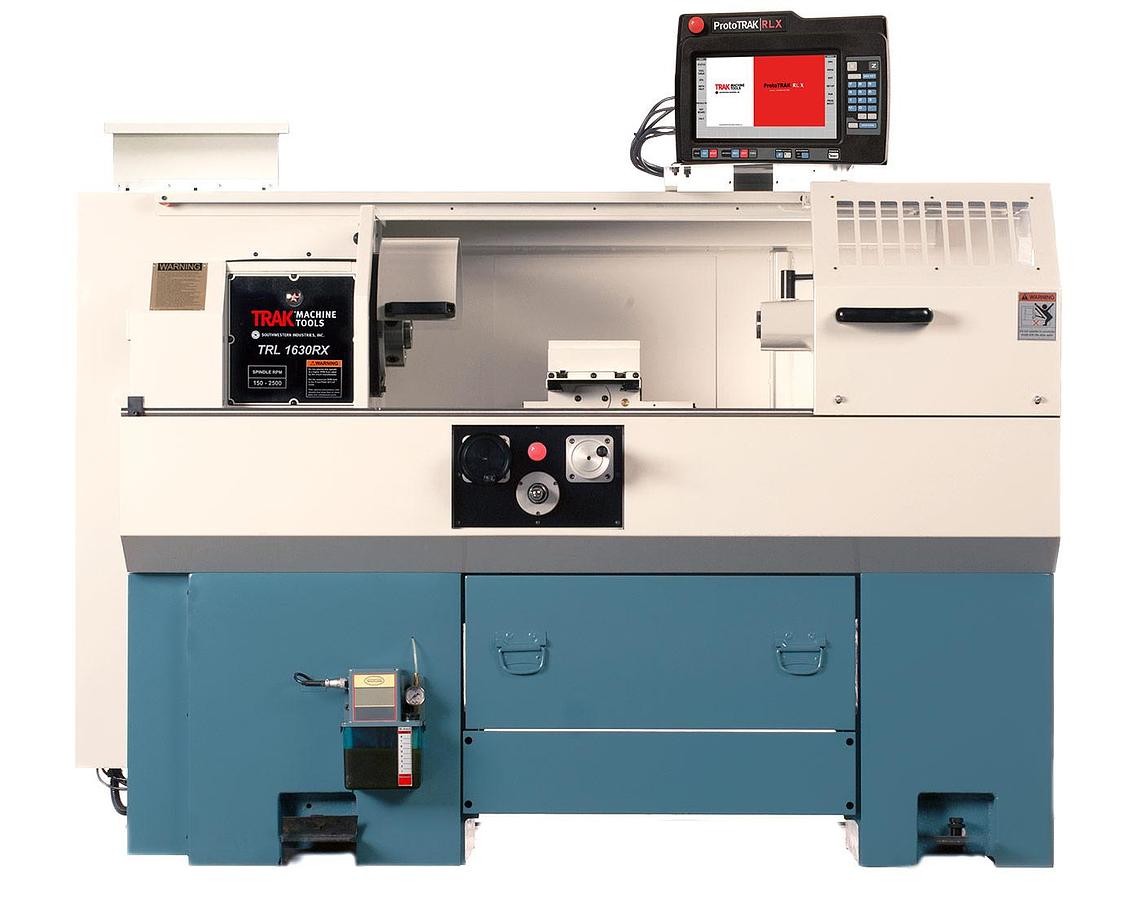

TRAK TRL 1630RX CNC Lathe w/RLX Control

TRAK TRL 1630RX CNC Lathe w/RLX Control

Contact us for price

Location:California

or
Call 712-737-8700

Description

Available options for additional cost:

Coolant pump

LED work lights

Buck chuck

4 or 8 station turrets

Tailstock

Tooling kit

5C collet closer

Faceplate

Follow rest

Steady rest

Remote stop/go switch

Limit switches

TRAK USB memory storage

Extended warranty

TRAKing

CAM file out converter

Auxiliary output

Offline programming

DXF converter

Advanced features w/verify

MTConnect


Specifications

ManufacturerTRAK TRL 1630RX CNC Lathe w/RLX Control
ModelTRL 1630RX
ConditionNew
Stock NumberTRL 1630RX
Height of centers8"
Distance between centers30"
Swing over bed16"
Swing over saddle wings16"
Swing over cross slide8.6"
Cross slide travel8.5"
Tool section max3/4"
Coolant tank capacity8 gallons
Coolant pump motor1/8 HP
Bed width12.6"
Bed height12.6"
Spindle noseD1-6
Spindle through hole2.12"
Spindle taperMT#6
Spindle diameter front bearing3.15"
Number of bearings2
Number of spindle speed ranges1
Spindle speed range150-2500 RPM
Spindle motor7.5 HP
Voltage200-240V
Main motor200V/3PH/60Hz
Quill travel5.75"
Quill diameter2.36"
Quill taper6 MT
Maximum rapid400 IPM on Z axis
Machine Dimensions82" x 40" x 71"
Machine weight2,750 LBS
