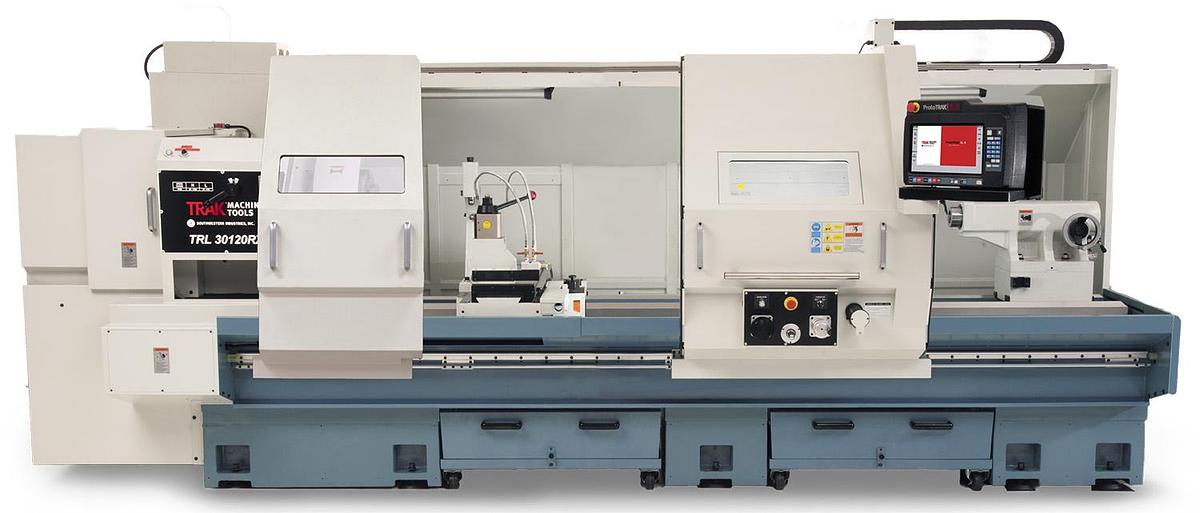

TRAK TRL 30120RX CNC Lathe w/RLX Control

TRAK TRL 30120RX CNC Lathe w/RLX Control

Contact us for price

Location:California

or
Call 712-737-8700

Description

Available options for additional cost:

Buck chuck

Rear chuck & adapter

8 station turrets

Tooling kit

Chip conveyor

Faceplate

Follow rest

Steady rest

Remote stop/go switch

TRAK USB memory storage

Extended warranty

TRAKing

CAM file out converter

Auxiliary output

Offline programming

DXF converter

Advanced features w/verify

MTConnect

Specifications

ManufacturerTRAK TRL 30120RX CNC Lathe w/RLX Control
ModelTRL30120RX
ConditionNew
Stock NumberTRL30120RX
Height of centers16.5"
Distance between centers118"
Swing over bed33"
Swing over saddle wings33"
Length of gap15.5"
Swing over gap43.5"
Swing over cross slide21.2"
Maximum cutting length121"
Cross slide travel20.5"
Tool section max1.5"
Coolant tank capacity48 gallons
Coolant pump motor1/2 HP
Bed width19.69"
Bed height18.7"
Spindle noseA2-11
Spindle through hole6.3"
Spindle taperNonstandard taper in spindle
Taper in reduction sleeveMT#6
Spindle diameter front bearing7.87"
Number of bearings2
Number of spindle speed ranges2
Spindle speed range(L) 20-415, (H) 40-1300 RPM
Spindle motor30 HP
Voltage480
Quill travel8"
Quill diameter4.13"
Quill taper6 MT
Maximum rapid400 IPM on Z axis, 200 IPM on X axis
Machine dimensions212.6" x 86.61" x 79.53"
Machine weight18,920 LBS
