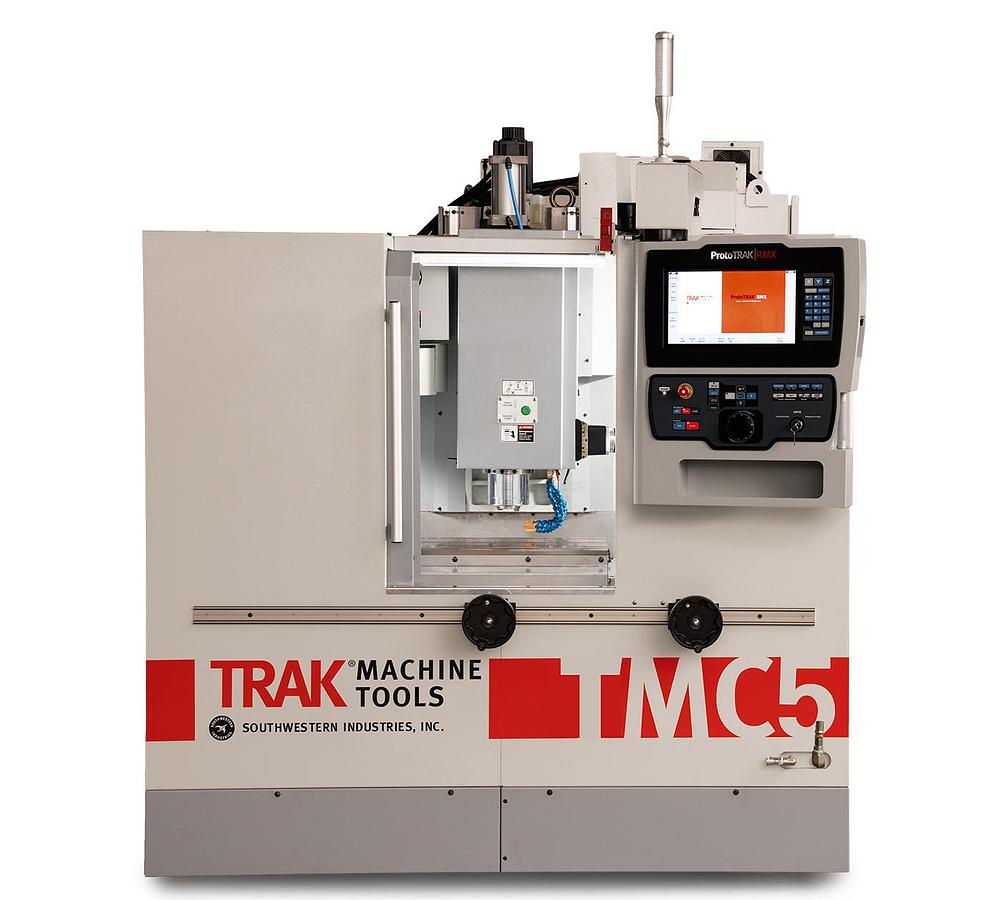

TRAK TMC5 Toolroom Machining Center w/ProtoTRAK RMX
TRAK TMC5 Toolroom Machining Center w/ProtoTRAK RMX
Contact us for price
Location:California
or
Call 712-737-8700
Description
Available options for additional cost:
Electronic handwheels
Offline programming
Remote stop/go switch
Vise kit
Tool measurement cart
Internal memory drive
Transformer option
Gripper – BT40 tooling
Retention knobs – Cat 40 tooling
Auxiliary functions
4th axis
12K spindle
CTS – 8K/12K
Specifications
| Manufacturer | TRAK TMC5 Toolroom Machining Center w/ProtoTRAK RMX |
| Model | TMC5 |
| Condition | New |
| Stock Number | TMC5 |
| Table size | 27.56" x 15.75" |
| Travel (X,Y,Z axis) w/soft limits | 20" x 16" x 20" |
| Rapid traverse X,Y,Z | 400 IPM in Toolroom Ops/1,000 IPM in Production Ops |
| T-slots | 3 x .709" x 3.937" |
| Spindle taper | #40 |
| Spindle speed range | 50-8000 RPM |
| Spindle nose diameter | 3" |
| Tool clamping force (90 psi) | 1,500 LBS |
| Tool holder type | CAT 40 or BT 40 |
| ATC tool capacity | 16 |
| Maximum tool weight | 15 LBS |
| Maximum tool diameter | 3.14" |
| Carousel speed | 0.8 sec/station to station |
| Tool selection system | Bi-directional/shortest path |
| Spindle motor-peak | 15 HP |
| Spindle motor-continuous | 10 HP |
| Power requirements | 208V |
| Maximum weight of workpiece | 1,000 LBS |
| Table height | 38" |
| Minimum spindle nose to table distance | 3.5" |
| Maximum spindle nose to table distance | 23.50" |
| Coolant tank capacity | 56 gallons |
| Machine footprint | 92" x 129.25" |
| Machine weight | 7,260 LBS |
