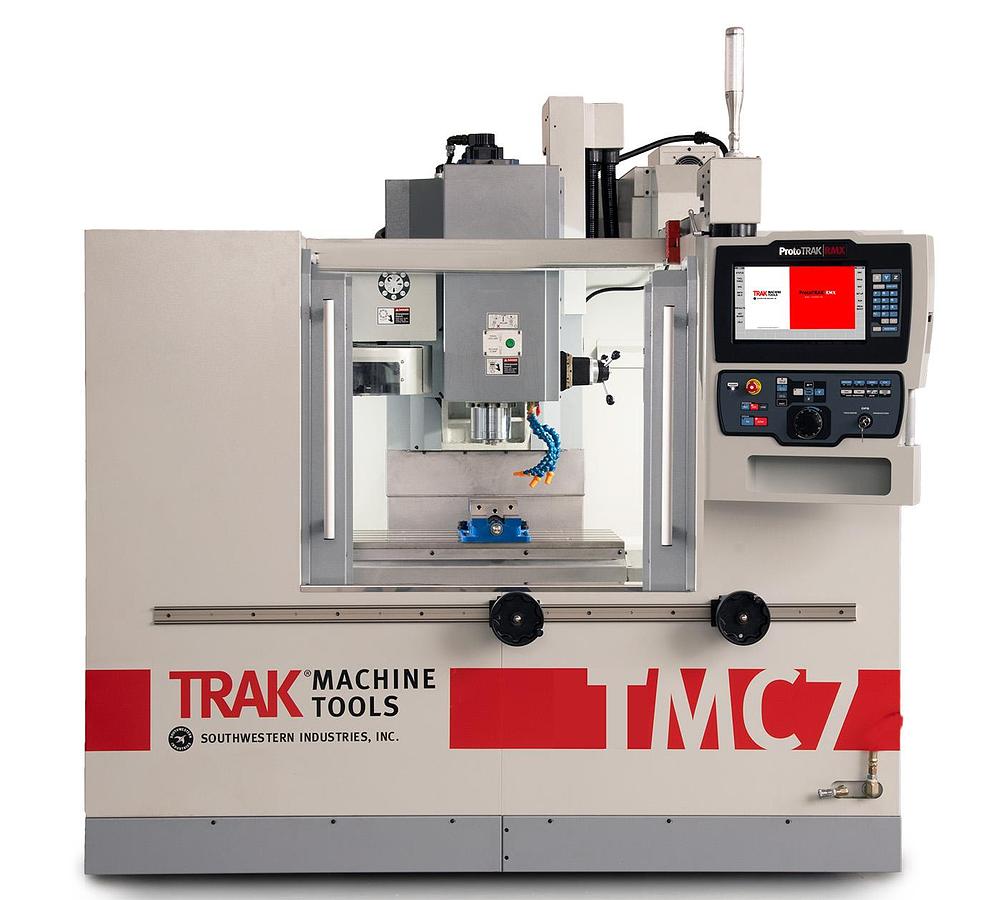

TRAK TMC7 Toolroom Machining Center w/ProtoTRAK RMX Control
TRAK TMC7 Toolroom Machining Center w/ProtoTRAK RMX Control
Contact us for price
Location:California
or
Call 712-737-8700
Description
Available options for additional cost:
Electronic handwheels
Offline programming
Remote stop/go switch
Vise kit
Tool measurement cart
Internal memory drive
Transformer option
Gripper – BT40 tooling
Retention knobs – Cat 40 tooling
Auxiliary functions
4th axis
12K spindle
CTS – 8K/12K
Specifications
| Manufacturer | TRAK TMC7 Toolroom Machining Center w/ProtoTRAK RMX Control |
| Model | TMC7 |
| Condition | New |
| Stock Number | TMC7 |
| Table size | 35.43" x 19.69" |
| T-slots (number x width x pitch) | 5 x .709" x 3.937" |
| Travel (X,Y,Z axis) w/soft limits | 30" x 20" x 20" |
| Spindle taper | #40 |
| Spindle speed range | 50-8000 RPM |
| Spindle nose diameter | 3" |
| Tool clamping force (90 psi) | 1,500 LBS |
| Tool holder type | CAT40 or BT40 |
| ATC tool capacity | 16 |
| Maximum tool weight | 15 LBS |
| Maximum tool diameter | 3.14" |
| Carousel speed | 0.8 sec/station to station |
| Tool selection system | Bi-directional/shortest path |
| Spindle motor-peak | 15 HP |
| Spindle motor-continuous | 10 HP |
| Power requirements | 208-480V |
| Maximum weight of workpiece | 1,000 LBS |
| Table height | 38" |
| Minimum spindle nose to table distance | 3.5" |
| Maximum spindle nose to table distance | 23.5" |
| Distance of tool carousel to table | 17.5" |
| Rapid traverse X,Y,Z | 400 IPM in Toolroom Ops, 1,000 IPM in Production Ops |
| Coolant tank capacity | 56 gallons |
| Machine dimensions | 106.5" x 167.25" x 152" |
| Machine weight | 8,360 LBS |
