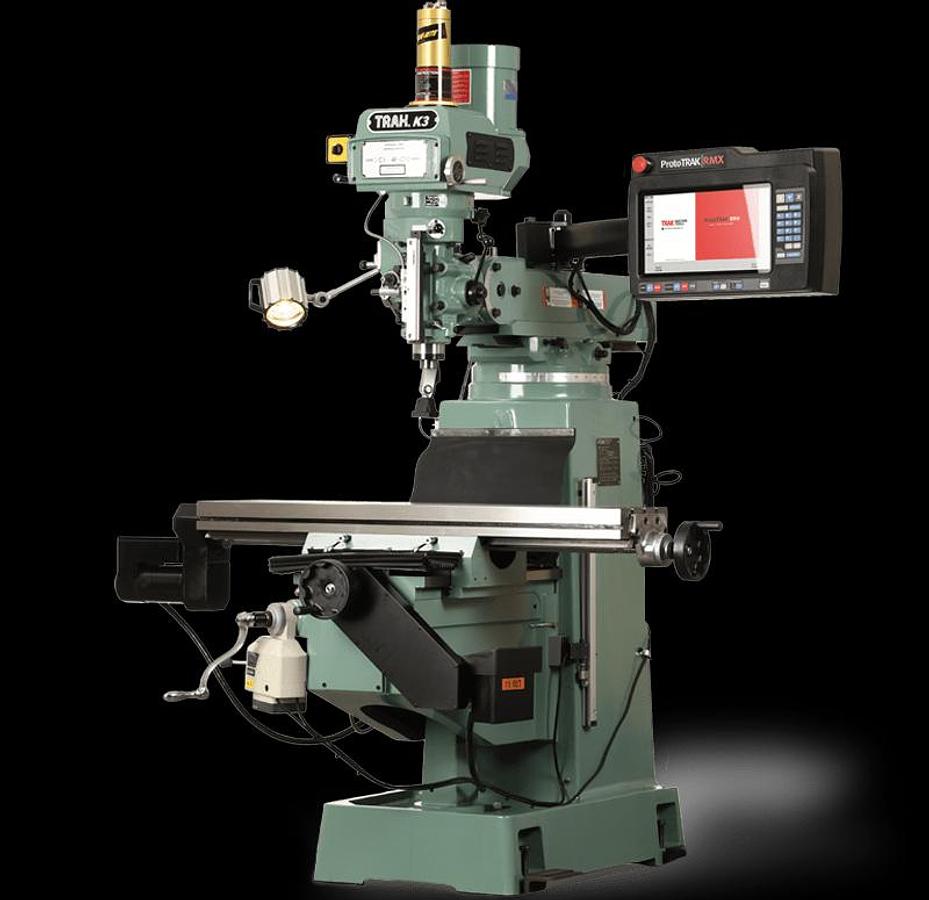

TRAK 2 Axis K3 CNC Knee Mill w/RMX Control

TRAK 2 Axis K3 CNC Knee Mill w/RMX Control

Contact us for price

Location:California

or
Call 712-737-8700

Description

Available options for additional cost:

Chip pan

Power feed

Remote stop/go switch

Work lamp

Automatic lubrication

6” Kurt vise

Fog Buster coolant spray

Electronic handwheels

TRAKing

Power draw bar

Glass scales

Coolant pump

Limit switches

TRAK USB storage

Riser blocks

Extended warranty

Offline programming

Clear off

MTConnect

Advanced features w/verify

Parasolid file converter

DXF converter

Auxiliary functions


Specifications

ManufacturerTRAK 2 Axis K3 CNC Knee Mill w/RMX Control
ModelK3
ConditionNew
Stock NumberK3RMX
Table size10" x 50"
T-slots3 x .625" x 3"
Table travels32"
Knee travel16"
Ram travel15"
Quill travel5"
Quill diameter3.375"
Spindle taperR8
Spindle speeds40-600, 300-5,000 RPM
Head tilt L-R90 degrees
Head tilt F-B45 degrees
Main motor3 HP
Power requirements208V, 3 PH
Table weight850 LBS
Way surface typeDove tail
Machine weight2,816 LBS
Machine dimensions78" x 103" x 92"
