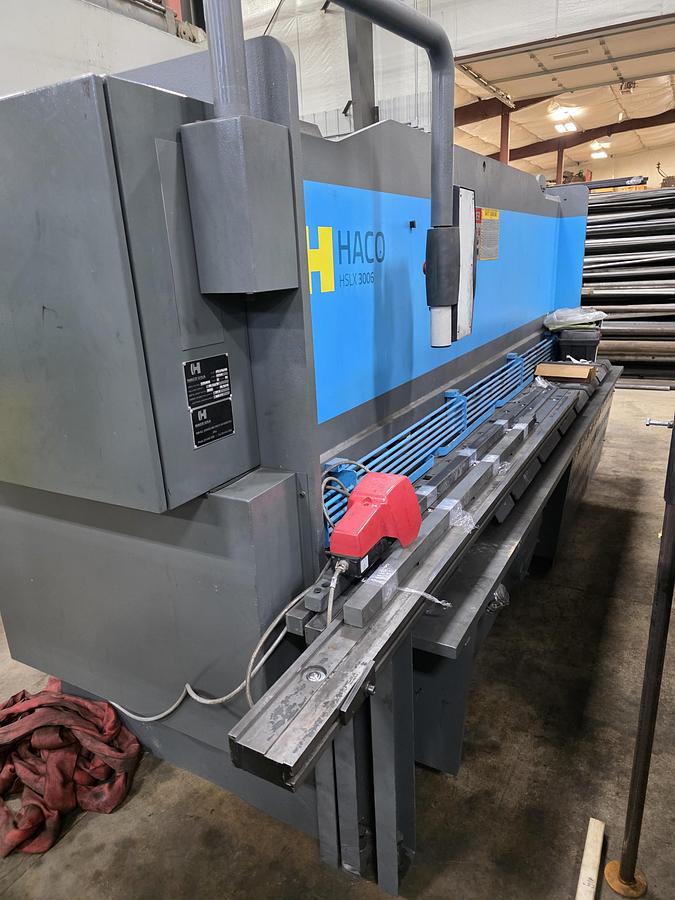

2022 Haco 10' x 1/4 Hydraulic Shear HSLX10X1/4
2022 Haco 10' x 1/4 Hydraulic Shear HSLX10X1/4
$50,500 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:
Hydraulic sheet supports for sheet metal
SC100T programmable control w/touch screen, 200 programs, 127 steps per program-controls rake angle,
blade gap, material thickness, backgauge retract, inch/metric
Shadow line
Squaring arm
Full table option
Specifications
| Manufacturer | Haco 10' x 1/4 Hydraulic Shear |
| Model | HSLX10X1/4 |
| Year | 2022 |
| Condition | Used |
| Serial Number | 23986 |
| Stock Number | 11145 |
| Maximum working length | 123" |
| Capacity (mild steel) | 1/4-80,000 PSI |
| Minimum cutting angle | 0.5 degrees |
| Maximum cutting angle | 3 degrees |
| Number of hold downs | 18 |
| Strokes per minute (small angle) | 22 |
| Strokes per minute (maximum angle) | 11 |
| Working height | 31" |
| Main motor | 15 HP |
| Machine length | 155" |
| Machine height | 68" |
| Machine width w/safety devices | 121" |
| Machine weight | 12,500 LBS |
| Backgauge range | 40" |
