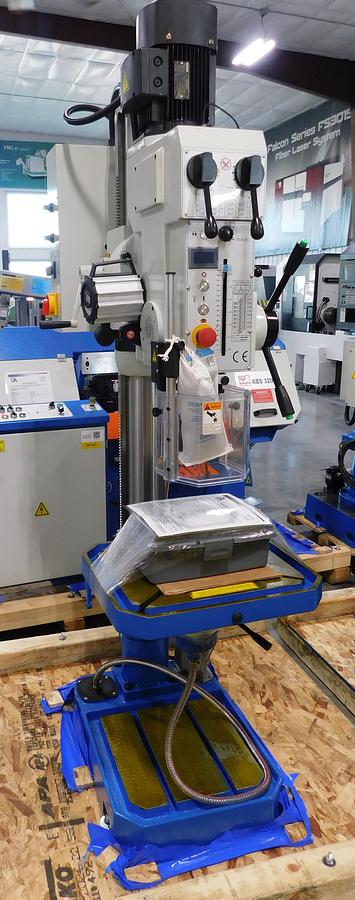

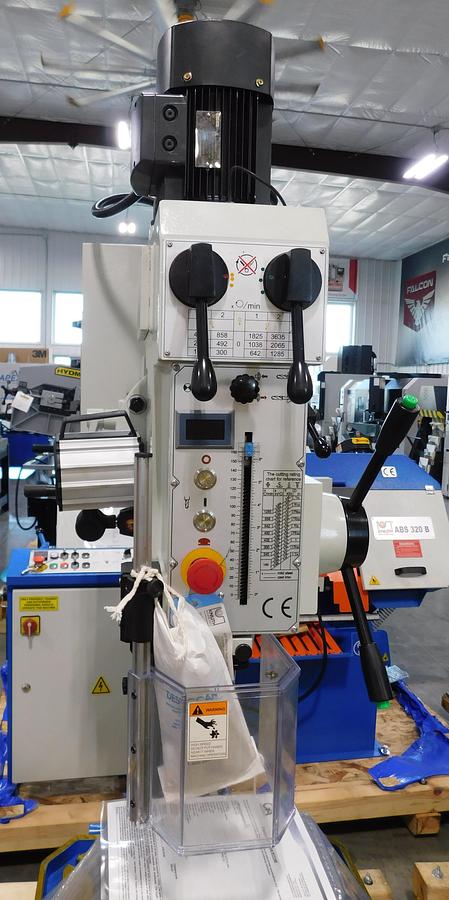

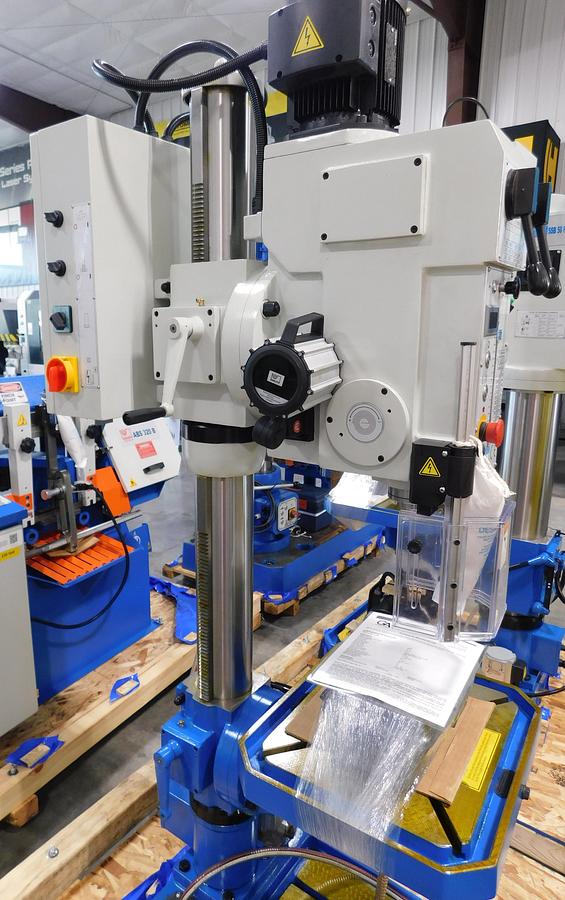

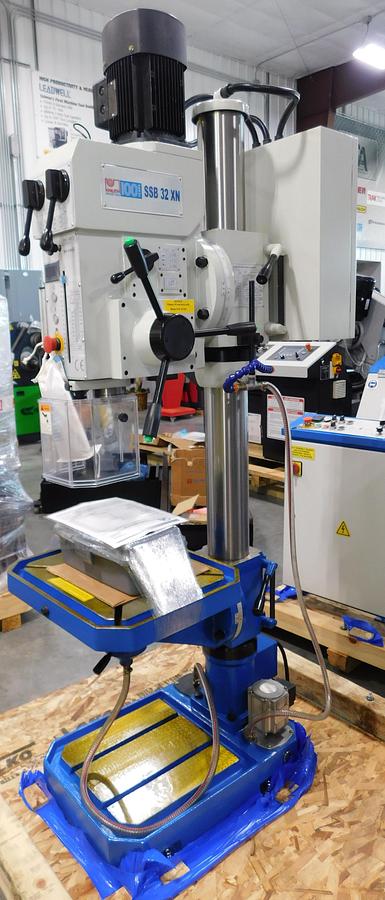

Knuth Knuth Single Spindle Drill SSB 32 XN

Knuth Knuth Single Spindle Drill SSB 32 XN

$12,112.50 (USD)

Location:Orange City, IA

or
Call 712-737-8700

Description

Equipped with:

Tapping feature

Spindle guide w/emergency stop

Work lamp

Coolant system

Operating tools

Manual

Specifications

ManufacturerKnuth Knuth Single Spindle Drill
ModelSSB 32 XN
ConditionNew
Serial Number6058
Stock Number11148
Drill capacity1.26"
Tapping capacity, mild steelM20
Column diameter5"
Throat depth12.5"
Quill stroke6"
Quill feeds0.004, 0.008, 0.012 in./rev
Spindle speed range125-3030 RPM (12)
Spindle taperMT4
Spindle motor1.5 HP
DRill head travel11" vertical
Head rotation+/- 45 degrees
Table travel vertical16"
Table swivel range+/- 45 degrees
Table size19.5" x 16.5"
Spindle to table distance25"
Spindle nose to foot distance47"
Table vertical adjustment19"
Table load capacity200 LBS
Machine dimensions33" x 20" x 77"
Machine weight1,190 LBS
