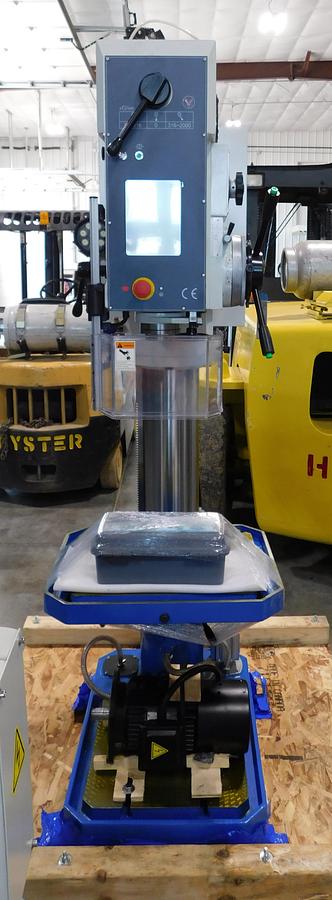

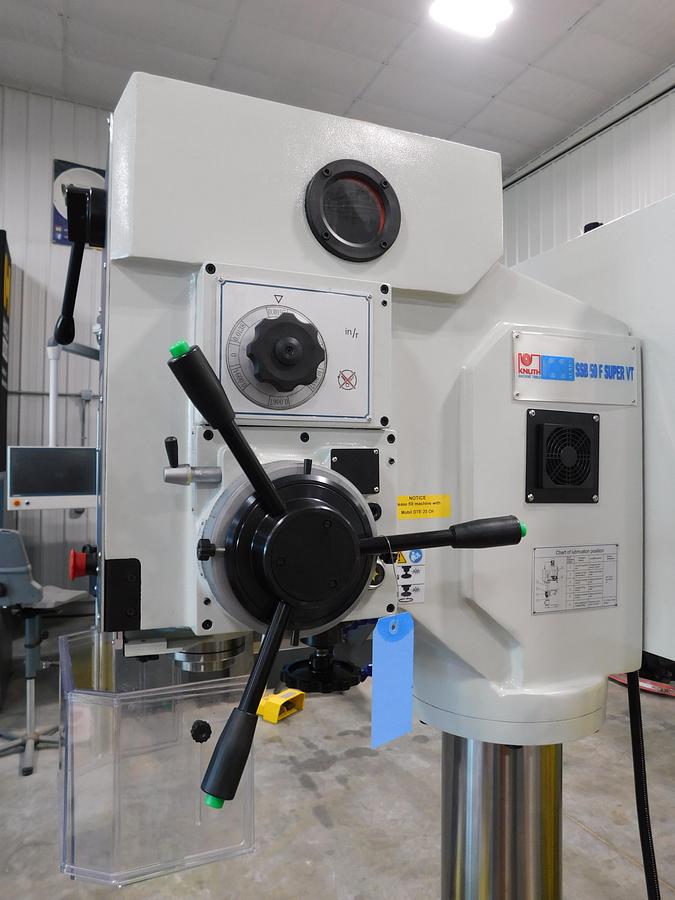

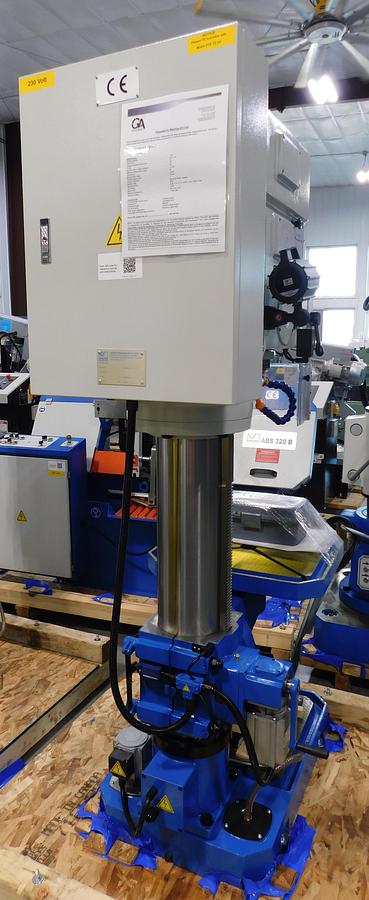

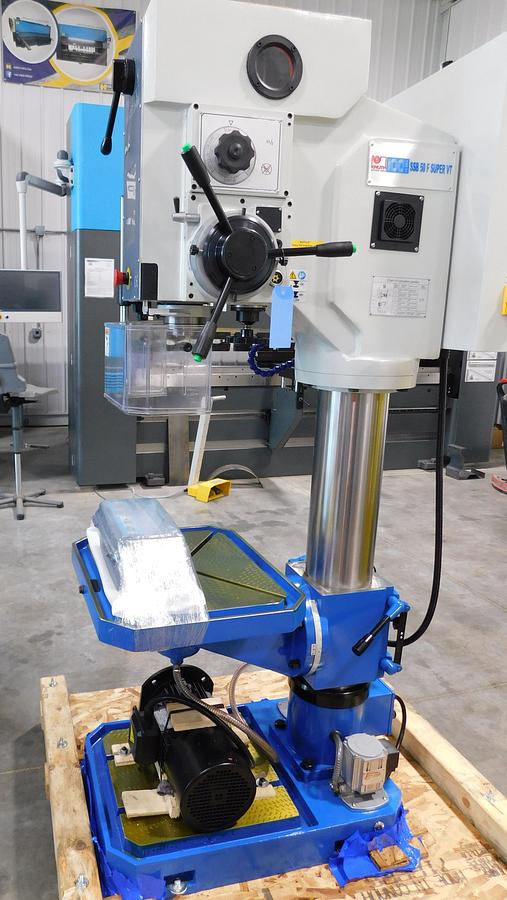

Knuth Single Spindle Drill SSB 50 F Super VT

Knuth Single Spindle Drill SSB 50 F Super VT

$21,487.50 (USD)

Location:Orange City, IA

or
Call 712-737-8700

Description

Equipped with:

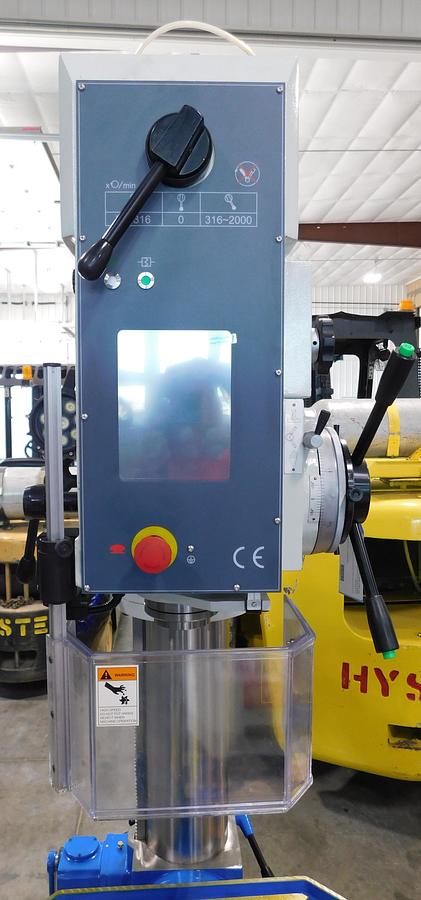

8” touchscreen control panel                                Coolant system

Tapping unit                                                          Operating tools

Protective shield                                                   Manual

LED work lamp                                                     Thread cutting feature

Table height adjustment                                       Electronic depth stop

4 automatic drill feeds w/auto shut off

Specifications

ManufacturerKnuth Single Spindle Drill
ModelSSB 50 F Super VT
ConditionNew
Serial Number6167
Stock Number11149
Drilling capacity1.97"
Table size23" x 18"
Tapping capacity (mild steel)30
Throat depth14"
Spindle nose to table distance23"
Maximum table swivel range+/- 45 degrees
Quill stroke8"
Manual table travel20.87"
Powered table travel16.14"
Column diameter7"
Speed range50-2200 RPM, variable
Spindle mountMT4
Quill feeds0.08, 0.12, 0.17, 0.24, 0.35, 0.50, in./rev
Main motor3 HP
Machine dimensions46" x 27" x 93"
Machine weight1,430 LBS
