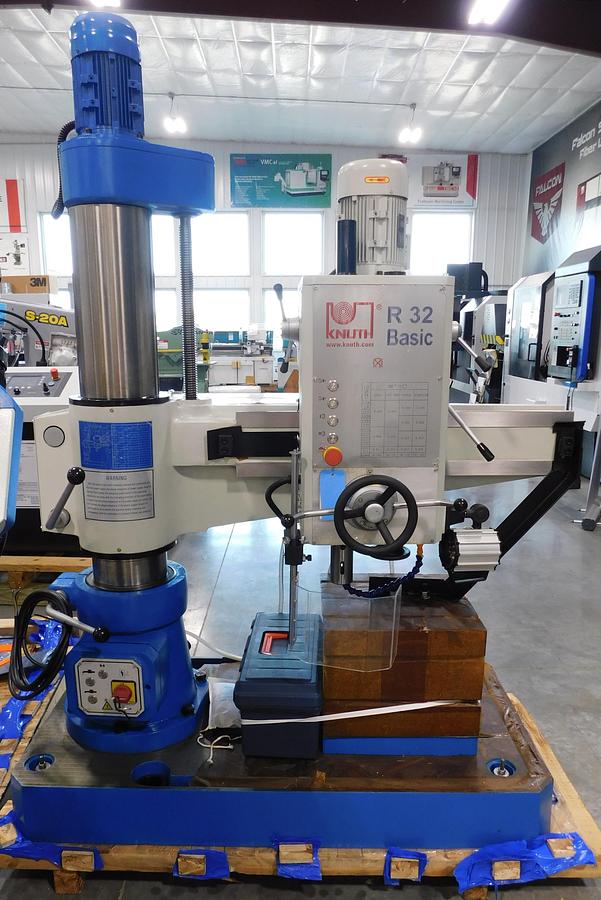

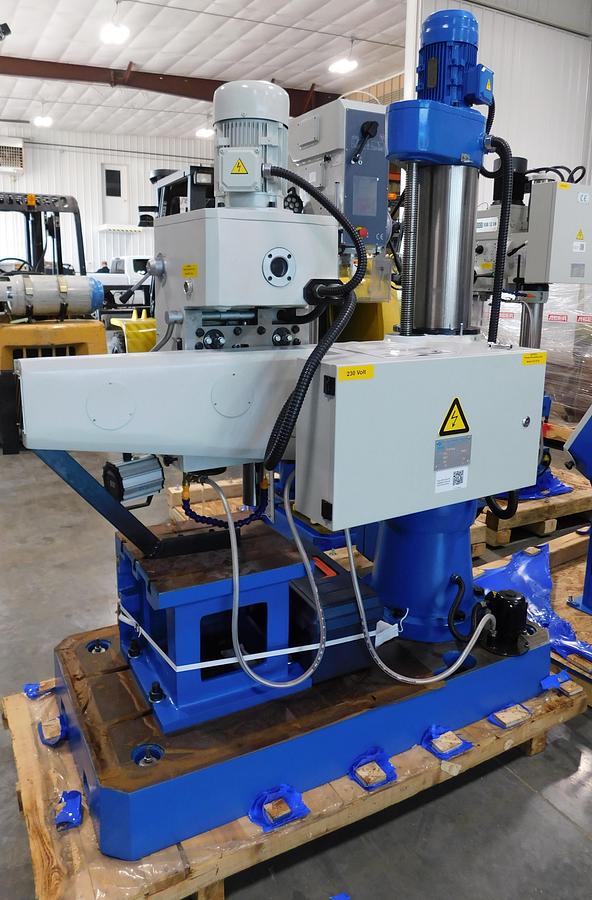

Knuth 8" x 32" Radial Arm Drill R 32 BASIC
Featured
Knuth 8" x 32" Radial Arm Drill R 32 BASIC
$14,462.50 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Coolant system
Cube table
Halogen light
Precision ground gears
Motorized arm height adjustment
Mechanical clamping for head column arm
Specifications
| Manufacturer | Knuth 8" x 32" Radial Arm Drill |
| Model | R 32 BASIC |
| Condition | New |
| Serial Number | 101522 |
| Stock Number | 11151 |
| Drilling capacity | 1"/1.3" |
| Column diameter | 8" |
| Maximum throat (spindle to column surface) | 32" |
| Minimum throat (spindle to column surface) | 12.6" |
| Maximum spindle nose to table distance | 34" |
| Minimum spindle nose to table distance | 12.5" |
| Cube table dimensions | 15.7" x 15.7" x 13.8" |
| Machine base dimensions | 54" x 28" x 6.3" |
| Spindle mount | MT4 |
| Quill stroke | 9.4" |
| Speed range | 75-1220 RPM (6) |
| Feeds | 0.004-0.009 in/rev (3) |
| Main motor | 2 HP |
| Machine dimensions | 55" x 28" x 74" |
| Machine weight | 3,140 LBS |
| Power requirements | 230V, 3 PH |
