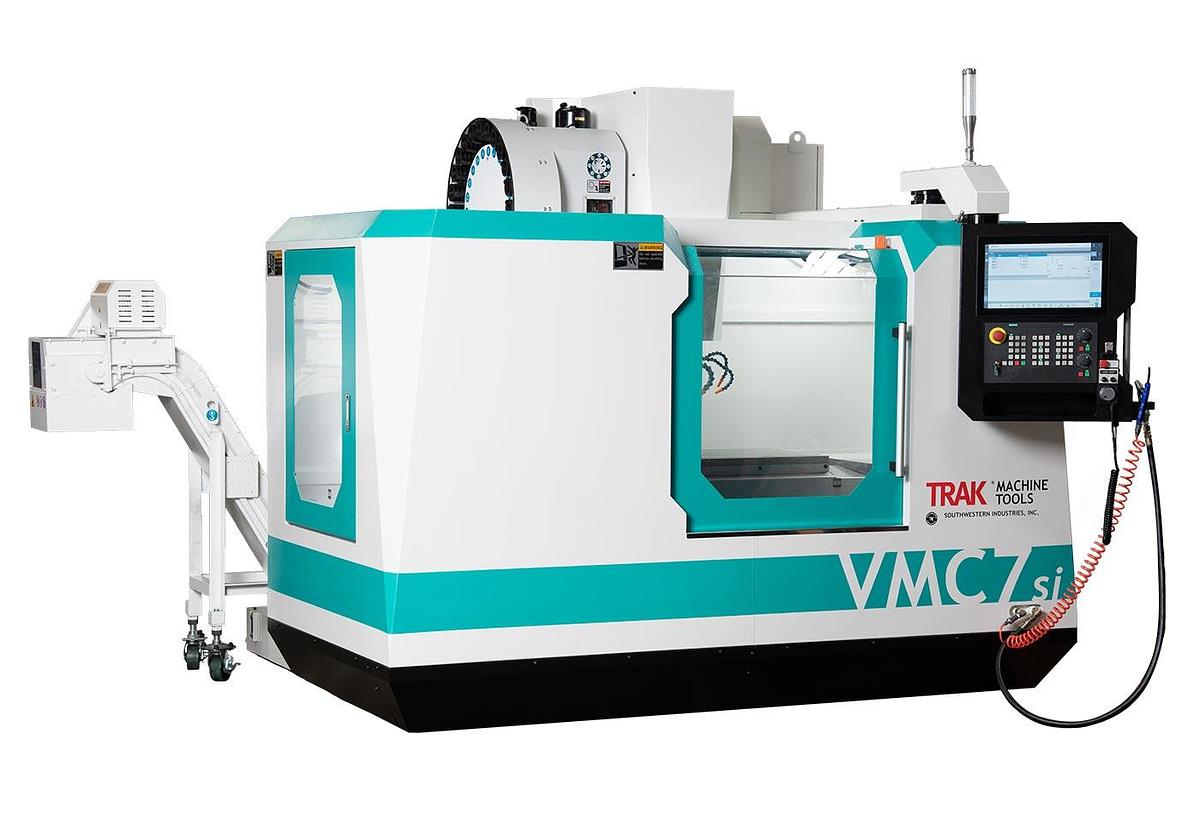

TRAK VMC7si Vertical Machining Center w/Sinumerik One CNC
TRAK VMC7si Vertical Machining Center w/Sinumerik One CNC
Contact us for price
Location:California
Description
Standard equipment:
Sinumerik One CNC
24 station tool magazine, dual arm tool changer
Advanced 12,000 RPM spindle w/hybrid ceramic bearings
Linear roller bearing slides (on all axes)
Coolant through spindle
Available options for additional cost:
Precision probe system-part only
Probe system-tool only
30 station tool magazine
4th axis system
4th axis tailstock support
4th axis ready
Tooling cart & preset tool
Fixture cart for workpiece stability
Oil skimmer
Set of 24 retention knobs-CAT40/CTS or BT40/CTS
ATC arm adapted to BT40
Workholding w/6” Kurt vises
TRAK USB memory storage
Transformer
Siemens Auto Power Off (APO)
Siemens 3D simulation
Siemens advanced surface motion control
Siemens CNC memory, 4.6 GB
Siemens DXF reader
Siemens handwheel run
Siemens measuring cycles for drilling/milling
Siemens execution from external storage
Siemens ONE DYNAMICS job shop package
Siemens ONE DYNAMICS surfacing package
Siemens residual material detection
Siemens run MyVirtual machine
Siemens ShopMill
Siemens simulation run during machining
Siemens top surface-cycle 832
Siemens TRACYL/Cylinder surface transformation
Siemens access MyMachine OPC UA
Specifications
| Manufacturer | TRAK VMC7si Vertical Machining Center w/Sinumerik One CNC |
| Model | VMC7si |
| Condition | New |
| Stock Number | VMC7si |
| Table size | 35.43" x 19.69" |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| Rapid traverse X,Y,Z | 1,000 IPM |
| Maximum cutting speed X,Y,Z | 1,000 IPM |
| T-slots (number x width x pitch) | 5 x .709" x 3.937" |
| Maximum weight of workpiece | 1,518 LBS |
| Table height | 38" |
| Minimum spindle nose to table distance | 3.5" |
| Maximum spindle nose to table distance | 23.5" |
| Distance of ATC arm to table | 22.09" |
| Spindle taper | #40 |
| Spindle speed range | 10-12,000 RPM |
| Spindle nose diameter | 3" |
| Tool clamping force (90 psi) | 1,500 LBS |
| Too holder | CAT40 standard (BT40 optional) |
| ATC tool capacity | 24 standard (30 optional) |
| Spindle motor-peak | 41.5 HP |
| Spindle motor-continuous | 20.1 HP |
| Spindle diameter | 60 mm |
| Number of spindle bearings | 4 |
| Spindle cooler oil capacity | 1 gallon |
| Power requirements | 480V standard |
| Coolant tank capacity | 60 gallons |
| Machine dimensions | 144" x 112" x 108"H |
| Machine weight | 8,710 LBS |
