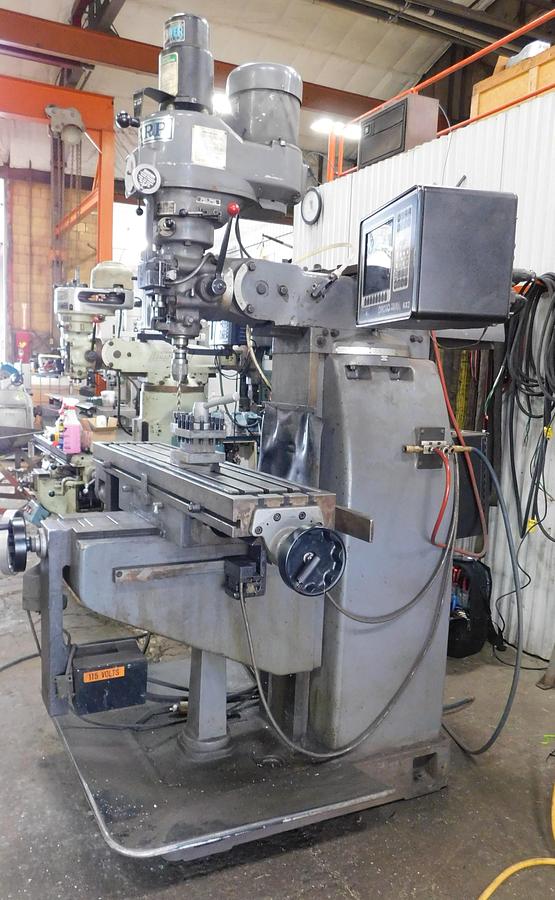

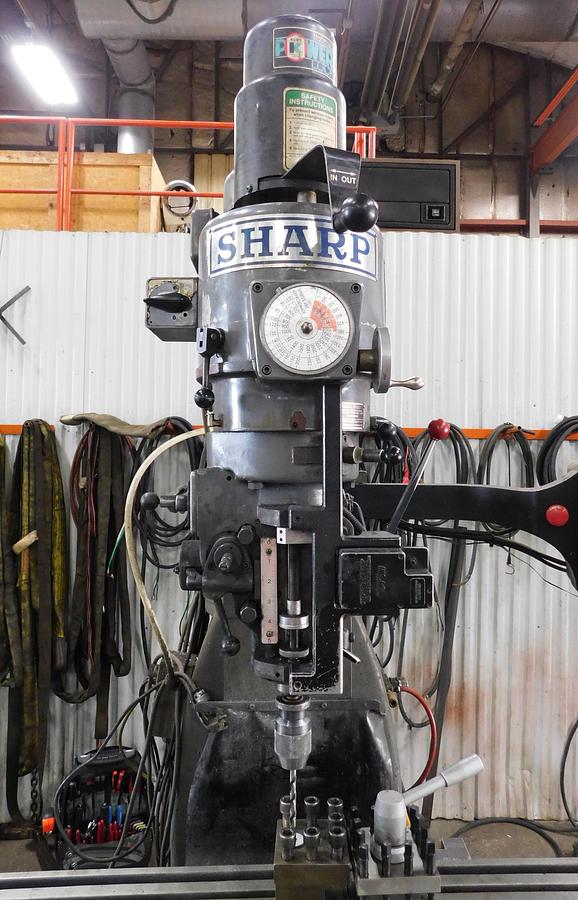

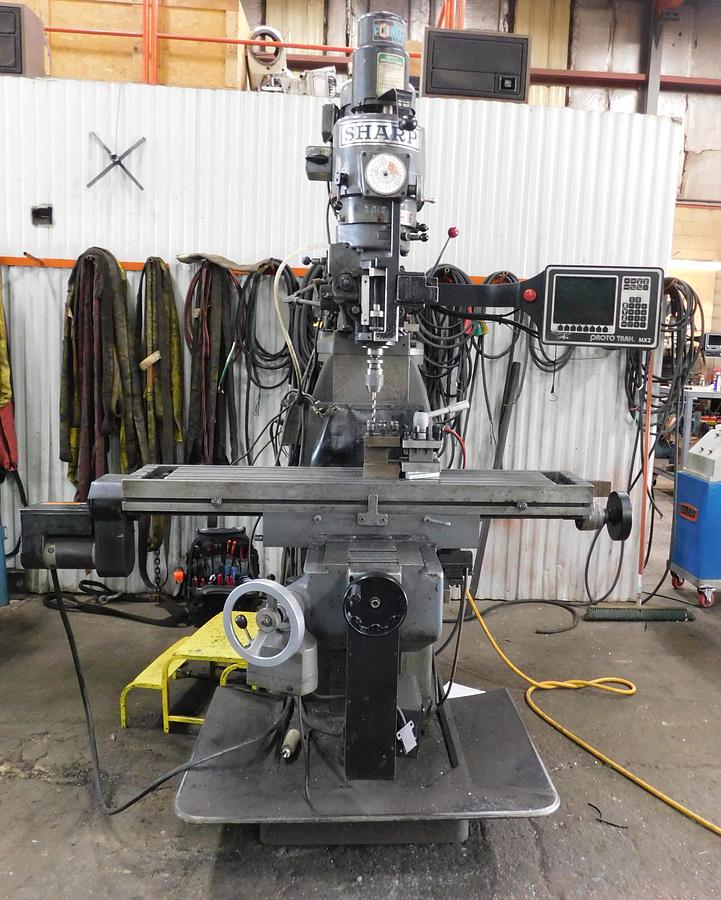

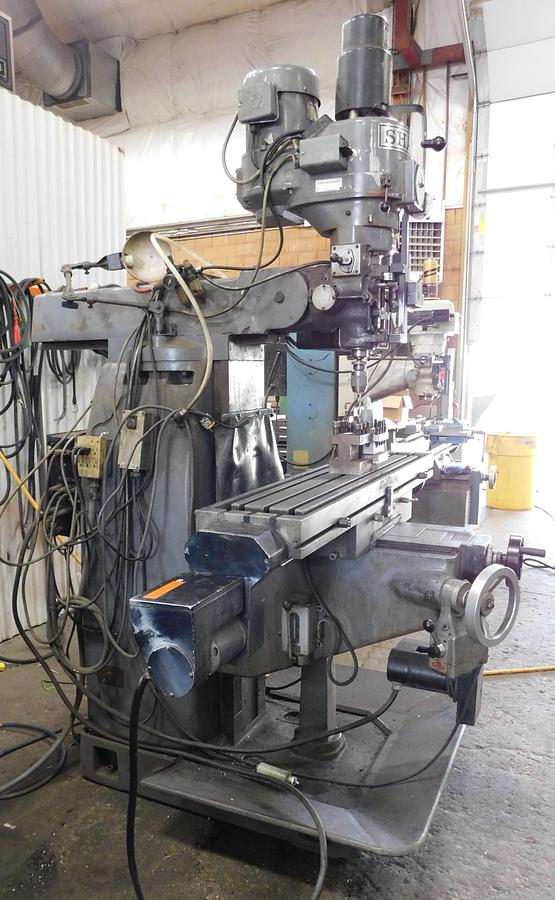

Sharp 2 Axis Vertical CNC Milling Machine
Sharp 2 Axis Vertical CNC Milling Machine
$11,500 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:

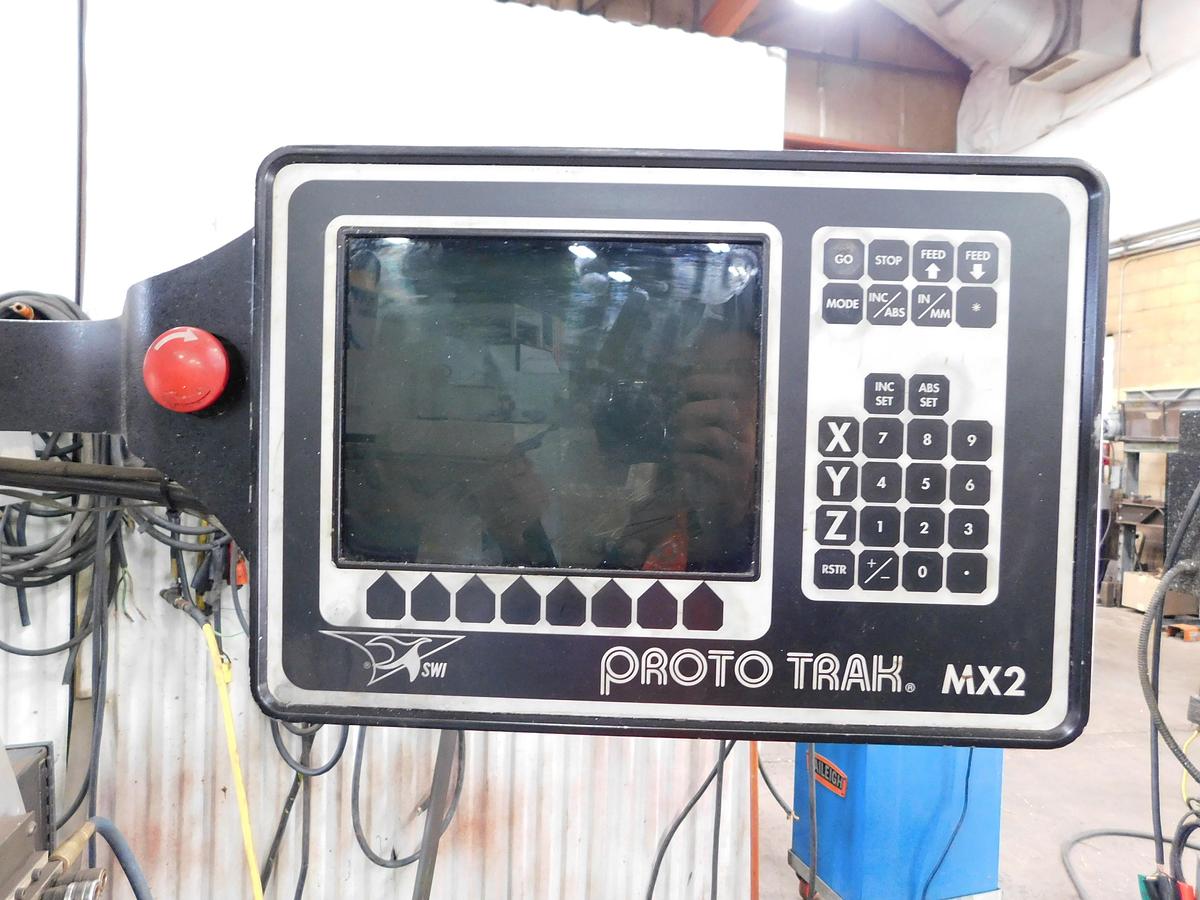

TRAK MX2 2 axis CNC control
TRAK MX2 Quill axis DRO
Chrome ways
Knee feed
Power draw bar
One shot lubrication
Specifications
| Manufacturer | Sharp 2 Axis Vertical CNC Milling Machine |
| Condition | Used |
| Serial Number | 82100277 |
| Stock Number | 11158 |

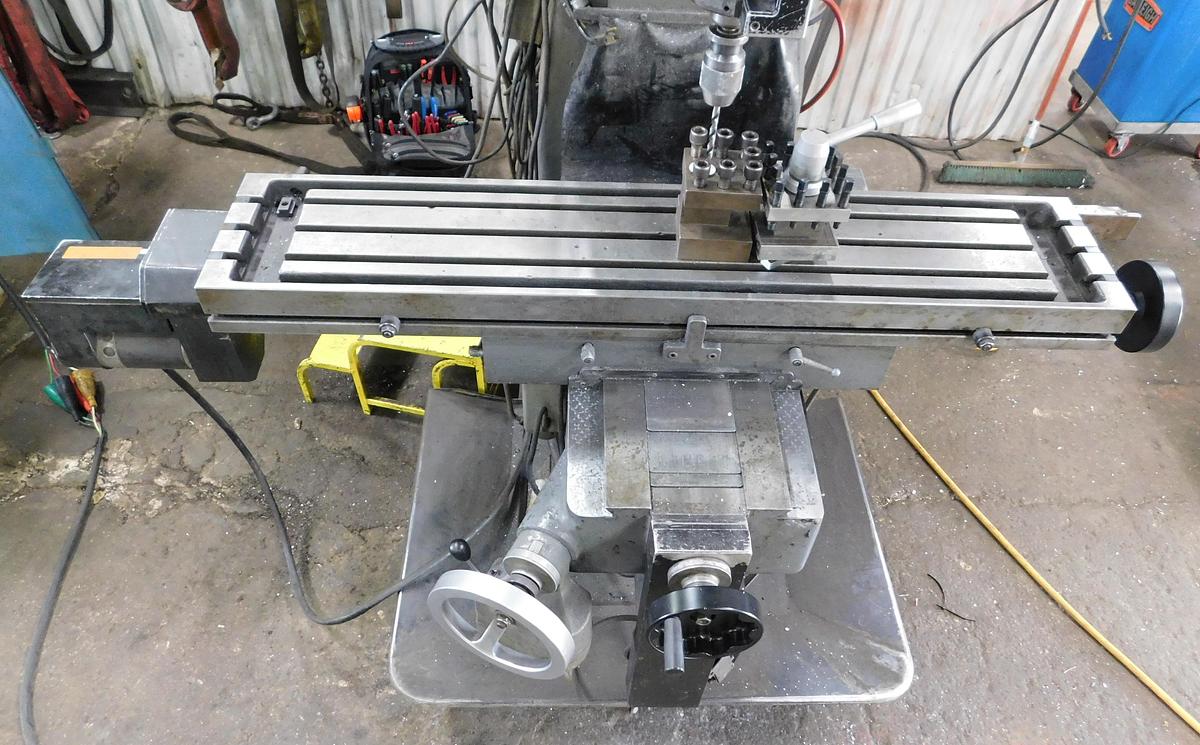

| Table size | 10" x 51" |
| Table travels | 16" x 32" |
| Knee travel | 16" |
| Quill travel | 5" |
| Quill taper | R-8 |
| Spindle speeds | 60-4800, variable |
| Quill feeds | 0.0015, 0.003, 0.006 |
| Main motor | 3 HP, 220/440V, 3 PH |
| Estimated weight | 3,000 LBS |
| Machine dimensions | 6' x 6' x 8' |
