18' Single Point Compensating Die Holder

٠Eliminates shimmy on long press brakes.

٠Easy, single central point adjustment.

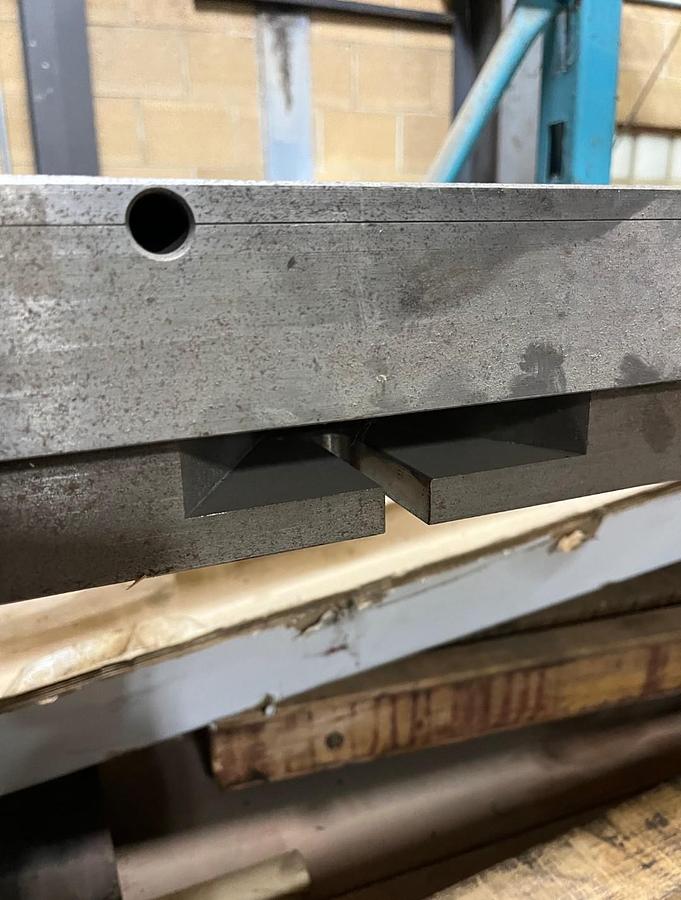

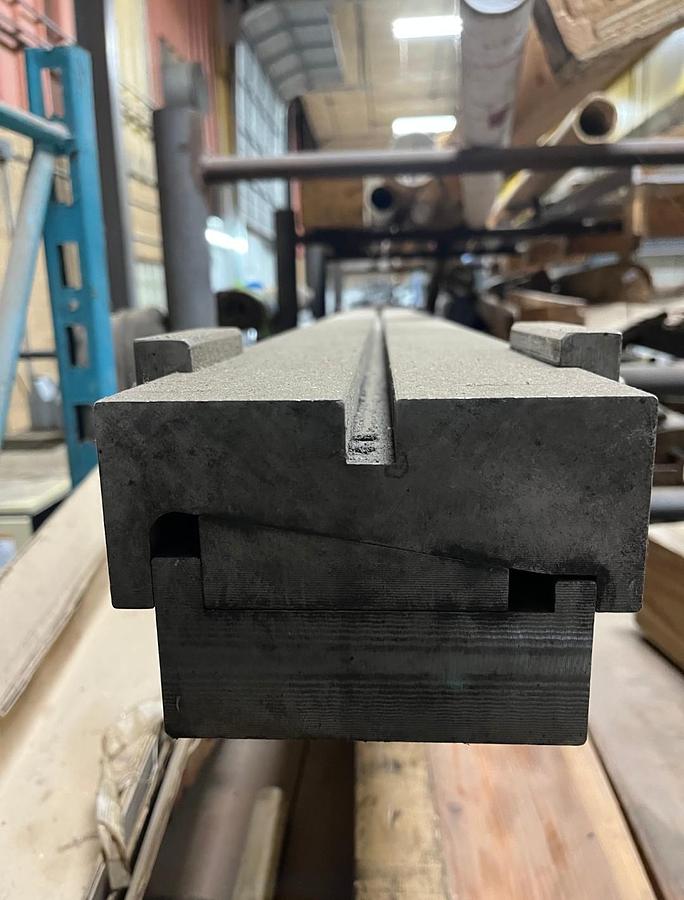

٠Reliable, single wedge design.

٠Believed to be from Specific Brake Die Company and machined to match a Cincinnati press brake bed but

can be used

  on many press brake brands.

٠Flat bottom for easy fixturing.

٠Base dimension is 4-7/8 across. 4” high. Top measures 5-1/4” between brackets. 5-7/8” overall width w/out

brackets.

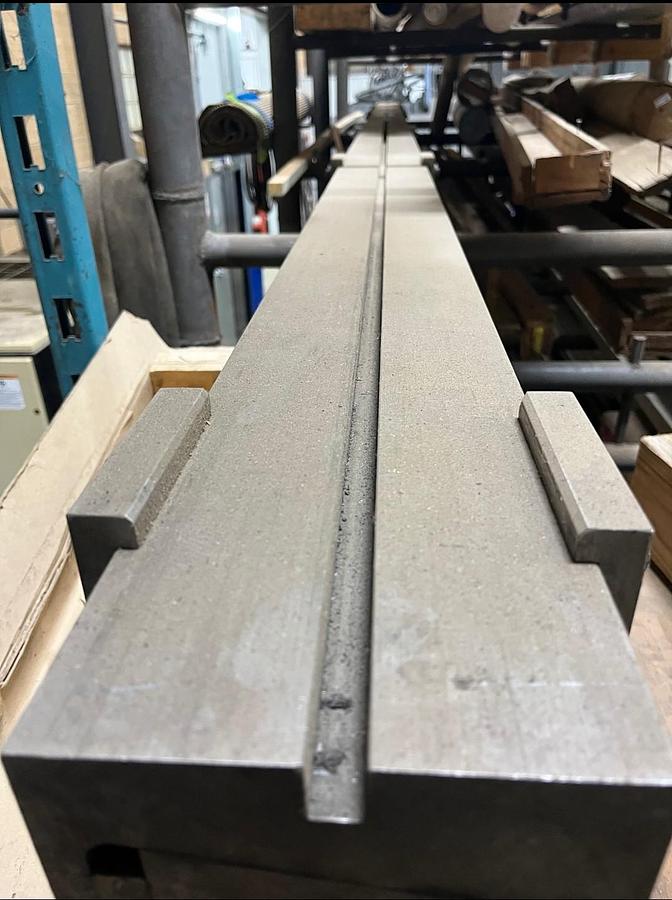

٠Slot in top for single tooling.

٠Also used with 4-way dies.

٠Set screws placed 8” on ends on 12” in middle.
