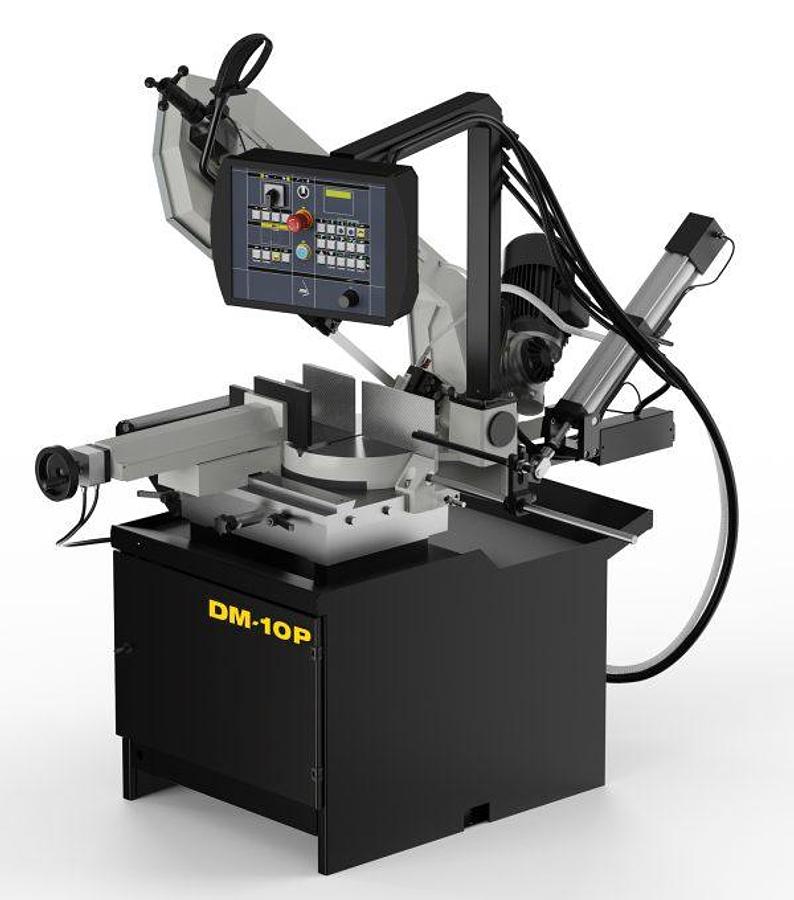

Hyd-Mech DM-10P Semi-Automatic Double Miter Bandsaw DM-10P
Hyd-Mech DM-10P Semi-Automatic Double Miter Bandsaw DM-10P
Contact us for price
Location:Canada
Description
Equipped with:
Semi-automatic, double miter, electro-hydraulic, easy swing, cast saw head
Quick release cast-iron material vise w/dovetail ways
Rotating table w/cut slot that moves in tandem w/sawing head
Band tension indicator
Remote foot pedal starts semi-automatic cutting cycle
Operator control box w/head feed mode selector (manual, powered, semi-automatic)
Push button controls for head positioning and blade start/stop
Blade speed selection switch
Coolant on/off switch w/wash hose
Emergency stop button
Replaceable blade brush
Adjustable guide arm
Pre-set, replaceable carbide guide inserts
True-direct drive-no belts or pulleys
Mechanical blade tensioning
Safety door interlocks
Flood coolant system
Adjustable work stop
Optional features for additional cost:
Mist lubrication
Pneumatic material vise w/foot pedal
Single phase (limits user to high blade speed only)
K110 5’ infeed/outfeed roller
59” R2 work stop for K110 table
Adaptor plate for K110 table
Power transformer
Specifications
| Manufacturer | Hyd-Mech DM-10P Semi-Automatic Double Miter Bandsaw |
| Model | DM-10P |
| Condition | New |
| Stock Number | Hyd-Mech DM-10P |
| Capacity rectangle @ 90 degrees | 9-1/2" x 11" |
| Capacity round @ 90 degrees | 10" |
| Capacity rectangle @ 45 degrees left | 6-1/4" x 4-1/2" |
| Capacity round @ 45 degrees left | 5-3/4" |
| Capacity rectangle @ 45 degrees right | 8-1/4" x 7" |
| Capacity round @ 45 degrees right | 7-1/4" |
| Capacity rectangle @ 30 degrees right | 5" x 4-1/2" |
| Capacity round @ 30 degrees right | 4" |
| Blade size | 1" x 9' 8" |
| Blade drive | 2/2.4 HP, VFD |
| Machine voltage | 480V |
| Blade speed | 118-236 SFM, 2 speed |
| Coolant tank capacity | 3.5 gallons |
| Table height | 34" |
| Machine weight | 970 LBS |
| Machine dimensions | 39" x 68" x 73" |
