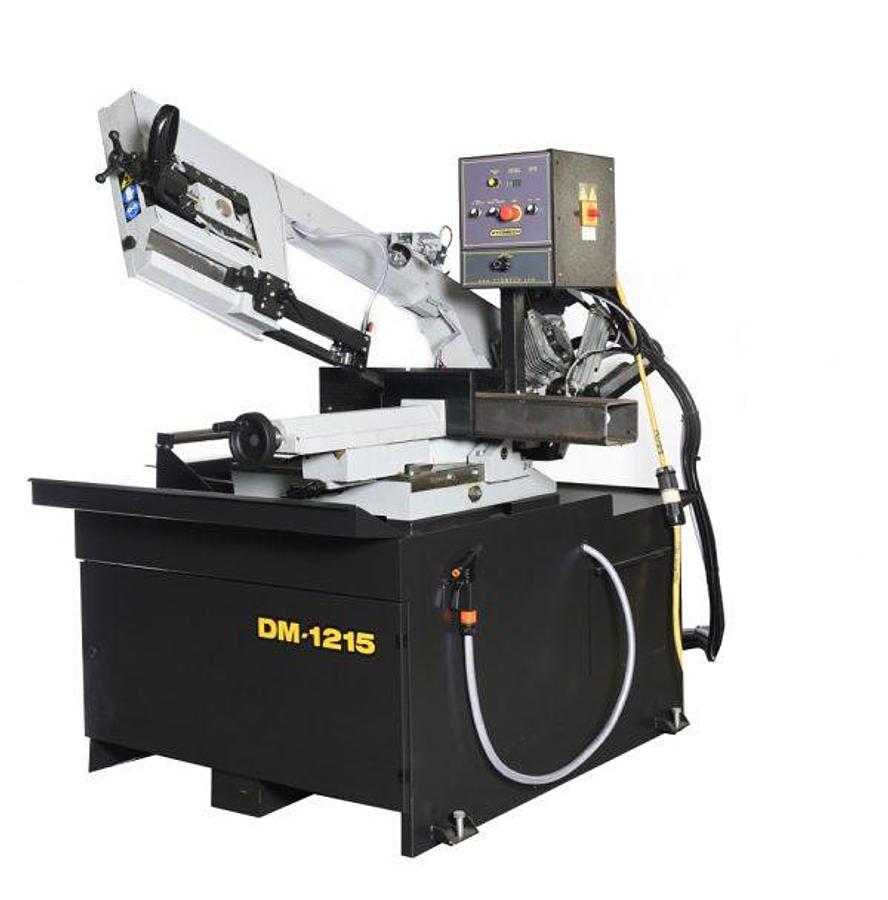

Hyd-Mech DM-10/15 anual Double Miter Bandsaw DM-12/15
Hyd-Mech DM-10/15 anual Double Miter Bandsaw DM-12/15
Contact us for price
Location:Canada
Description
Equipped with:
Manually operated, double miter, easy swing, cast saw head
Quick release cast-iron material vise w/dovetail ways
Direct, variable frequency drive using no belts or pulleys
Adjustable speed range from 49 to 377 SFM
Rotating table w/replaceable wear strips. Cut slot that moves in tandem w/sawing head.
Band tension indicator
Infinitely adjustable gravity feeding head feed
Replaceable blade brush
Adjustable guide arm
Pre-set, replaceable carbide guide inserts
Mechanical blade tensioning
Safety door interlocks
Flood coolant system
Work stop
Storage in saw base
Work light
Laser light
Optional features for additional cost:
Mist lubrication
K210 5’ infeed/outfeed roller
R2 work stop for K210 table
Adaptor plate for K210 table
Power transformer
Specifications
| Manufacturer | Hyd-Mech DM-10/15 anual Double Miter Bandsaw |
| Model | DM-12/15 |
| Condition | New |
| Stock Number | Hyd-Mech DM-12/15 |
| Capacity rectangle @ 90 degrees | 10-1/4" x 15" |
| Capacity round @ 90 degrees | 12" |
| Capacity rectangle @ 45 degrees | 7-3/4" x 10-1/4" |
| Capacity round @ 45 degrees | 10-1/2" |
| Capacity rectangle @ 45 degrees right | 7-3/4" x 11-1/4" |
| Capacity round @ 45 degrees right | 11-1/4" |
| Capacity rectangle @ 30 degrees right | 7-3/4" x 6-1/2" |
| Capacity round @ 30 degrees right | 7-3/4" |
| Blade size | 1" x 12' 4" |
| Blade drive | 3 HP, VFD |
| Machine voltage | 480V |
| Blade speed | 49-377 SFM |
| Coolant tank capacity | 16 gallons |
| Table height | 34-1/8" |
| Machine weight | 1,740 LBS |
| Machine dimensions | 48" x 88" x 83" |
