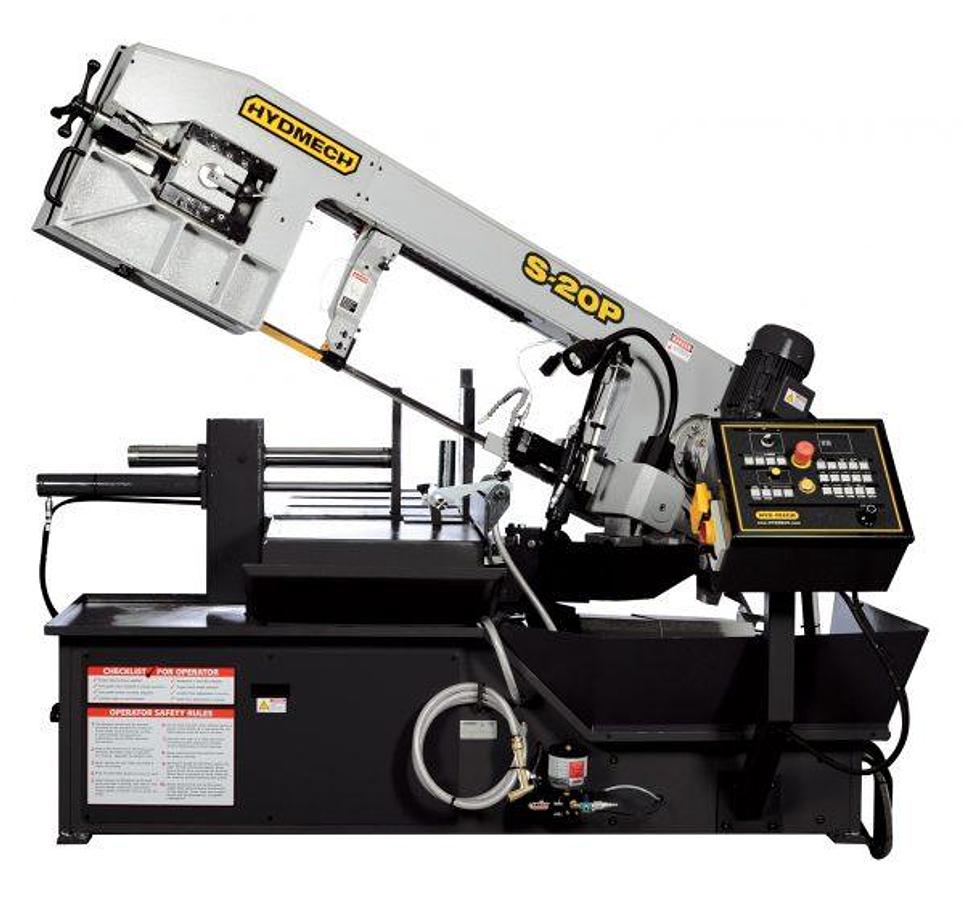

Hyd-Mech S-20P Semi-Automatic Scissor Horizontal Pivot Bandsaw S-20P
Hyd-Mech S-20P Semi-Automatic Scissor Horizontal Pivot Bandsaw S-20P
Contact us for price
Location:Canada
Description
Equipped with:
Easy swing, heavy duty, cast iron saw head that can swing up to 60° in one direction
Full capacity, full stroking hydraulic vise
3 HP VFD. True direct blade drive-no belts/pulleys
On-demand hydraulics
36” material in-feed roller table and 19” out feed table
Cast iron band wheels
Swing away semi-automatic operator control panel
Replaceable blade brush
Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail.
Gravity fed sawing head w/infinite down feed adjustment
Mechanical band tensioning w/digital readout
Pre-set, replaceable carbide guide inserts
Safety door interlocks
Flood coolant w/wash down hose
Laser light
Work light
Optional features for additional cost:
Mist lubrication (shop air required)
Work stop – 34”
Single phase – 220V
Right hand side control panel – rigid mount
Idler conveyors
Full capacity hydraulic overhead bundling
Remote operator console
Power transformer
Specifications
| Manufacturer | Hyd-Mech S-20P Semi-Automatic Scissor Horizontal Pivot Bandsaw |
| Model | S-20P |
| Condition | New |
| Stock Number | Hyd-Mech S-20P |
| Capacity rectangle @ 90 degrees | 13" x 18" |
| Capacity round @ 90 degrees | 13" |
| Capacity rectangle @ 45 degrees | 13" x 10-3/4" |
| Capacity round @ 45 degrees | 12" |
| Capacity rectangle @ 30 degrees | 13" x 7-3/4" |
| Capacity round @ 30 degrees | 8-1/2" |
| Blade size | 1" x 14' 10" |
| Blade drive | 3 HP, VFD |
| Machine voltage | 480V |
| Blade speeds | 45-330 SFM |
| Coolant tank capacity | 6 gallons |
| Work load | 5,000 LBS |
| Table height | 31" |
| Machine weight | 2,500 LBS |
| Machine dimensions | 92" x 75" x 52" |
