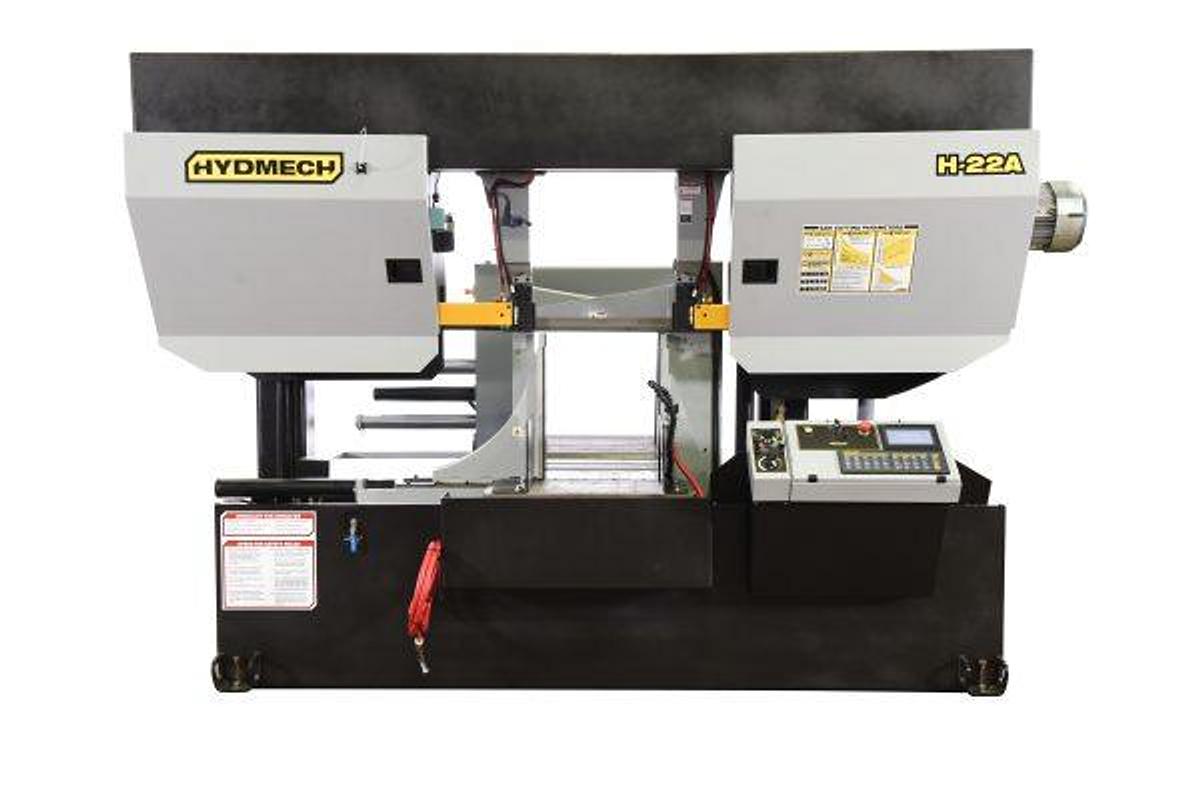

Hyd-Mech H-22A Automatic Horizontal Bandsaw H-22A

Equipped with:

Split front vise

3m bar feed

Full capacity hydraulic overhead bundling

Shuttle features automatic multi-indexing up to 3m in a single stroke w/automatic kerf compensation

Powered by a rack and pinion servo drive

Steel guide arms.

The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all

   times.

7.5 KW VFD. True direct blade drive – no belts/pulleys

Full capacity, full stroking hydraulic vises

Hydraulic positive down feed

High resolution feed rate valve allows for constant feed rate when cutting special alloys

Blade chamber separates material from cut part

Cast iron band wheels

Automatic PLC control programable up to 999 jobs w/10 in queue

Replaceable blade brush

Automatic chip removal auger

Easy access electrical panel and hydraulics

Blade breakage switch

Hydraulic band tensioning w/digital readout

Hydraulic carbide guide tensioning

Hardened, replaceable wear plates

Safety door interlocks

Flood coolant w/wash down hose

Work light

Variable vise pressure

Out of stock switch

Optional features for additional cost:

Full capacity hydraulic overhead bundling

6° canted head

Blade deviation monitor

Mist lubrication

Outboard vise

Outboard vise w/bundling

Vertical alignment rollers

Pedestal control

Roller discharge table

Vertical alignment rollers

Laser light

Idler conveyors and accessories

Powered conveyors and accessories

Power transformer
