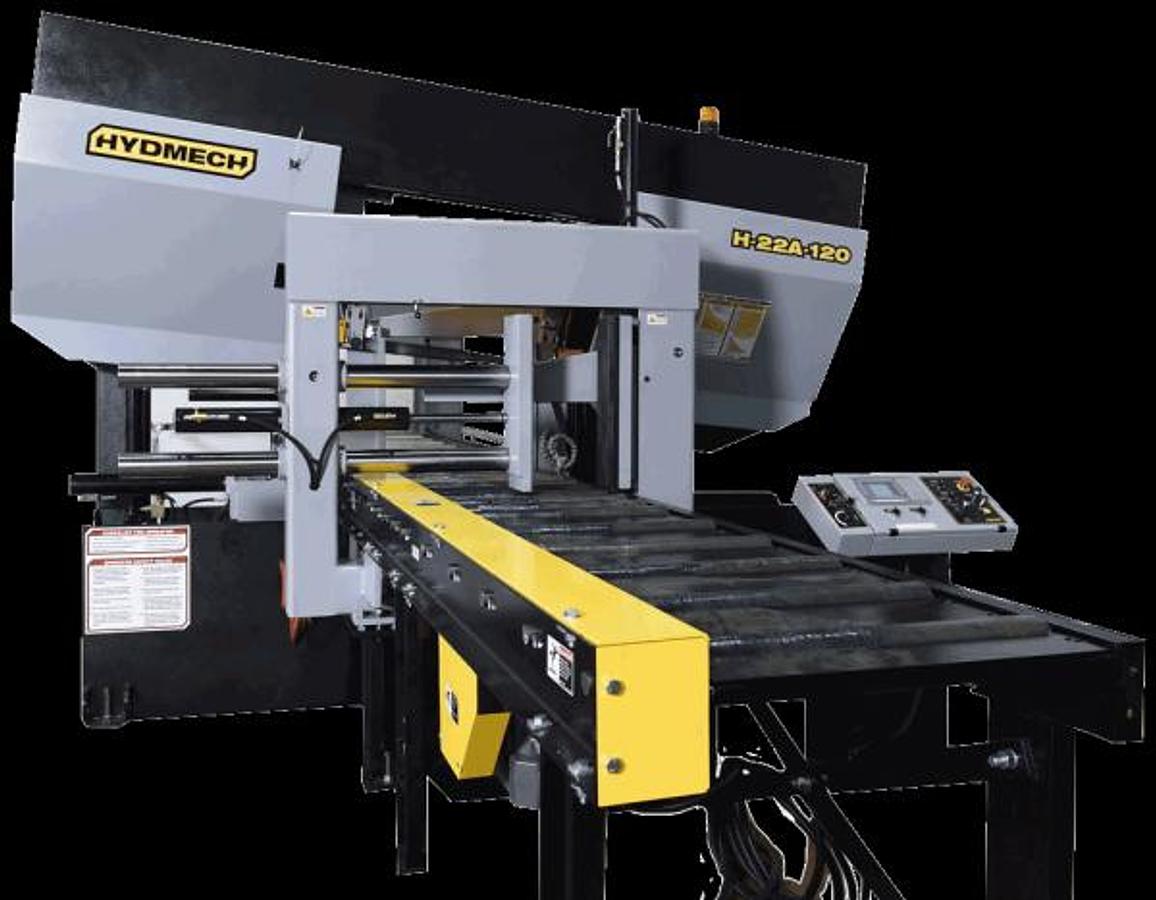

Hyd-Mech H-22A-120 Automatic Horizontal Bandsaw H-22A-120

Equipped with:

6° degree canted head

Split front vise

Full capacity hydraulic overhead bundling

10’ bar feed

Shuttle features automatic multi-indexing up to 120” in a single stroke w/automatic kerf compensation. Powered by a rack

   and pinion servo drive

Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm

   spacing at all times.

Hydraulic positive down feed

10 HP VFD. True direct blade drive – no belts/pulleys

Full capacity, full stroking hydraulic vises

High resolution feed rate valve allows for constant feed rate when cutting special alloys

Blade chamber separates material from cut part

Cast iron band wheels

Automatic PLC control programable up to 999 jobs w/10 in queue

Replaceable blade brush

Automatic chip removal auger

Easy access electrical panel and hydraulics

Blade breakage switch

Hydraulic band tensioning w/digital readout

Hydraulic carbide guide tensioning

Hardened, replaceable wear plates

Safety door interlocks

Flood coolant w/wash down hose

Work light

Laser light

Variable vise pressure

Out of stock switch

Optional features for additional cost:

Blade deviation monitor

Vertical alignment rollers

Pedestal control

Mist lubrication

Outboard vise

Outboard vise w/bundling

Roller discharge table

Idler conveyors and accessories

Powered conveyors and accessories

Power transformer
