2006 Durma 6 Axis CNC Press Brake CNC HAP 30135
2006 Durma 6 Axis CNC Press Brake CNC HAP 30135
$56,750 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:

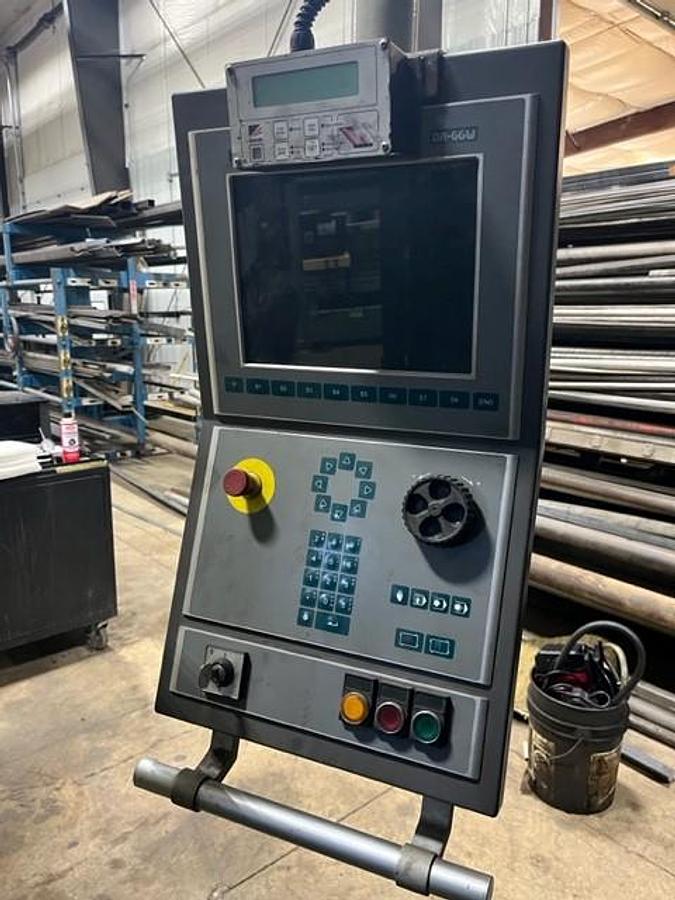

Delem DA 66-W control
European style clamps for American tooling w/safety tang
7 axis Y1, Y2, X, R, Z1, Z2 & CNC crowning table
Laser safe light guarding
Single lower die riser
Specifications
| Manufacturer | Durma 6 Axis CNC Press Brake |
| Model | CNC HAP 30135 |
| Year | 2006 |
| Condition | Used |
| Serial Number | 7323061303 |
| Stock Number | 11187 |
| Maximum capacity | 165 tons |
| Overall length of bed and ram | 10' |
| Distance between housings | 102" |
| Throat depth | 16.1" |
| Open height | 20.8" |
| Stroke | 10.4" |
| Closed height | 10.4" to bed |
| Backgauge | 4 axis (X, R, Z1, Z2) |
| X axis travel | 25.6" (650mm) |
| R axis travel | 9.8" (250mm) |
| Approach speed | 354 IPM |
| Bend speed | 22 IPM |
| Return speed | 203 IPM |
| Motor | 20 HP |
| Machine dimensions | 167" x 85" x 110" |
| Machine weight | 20,950 LBS |
