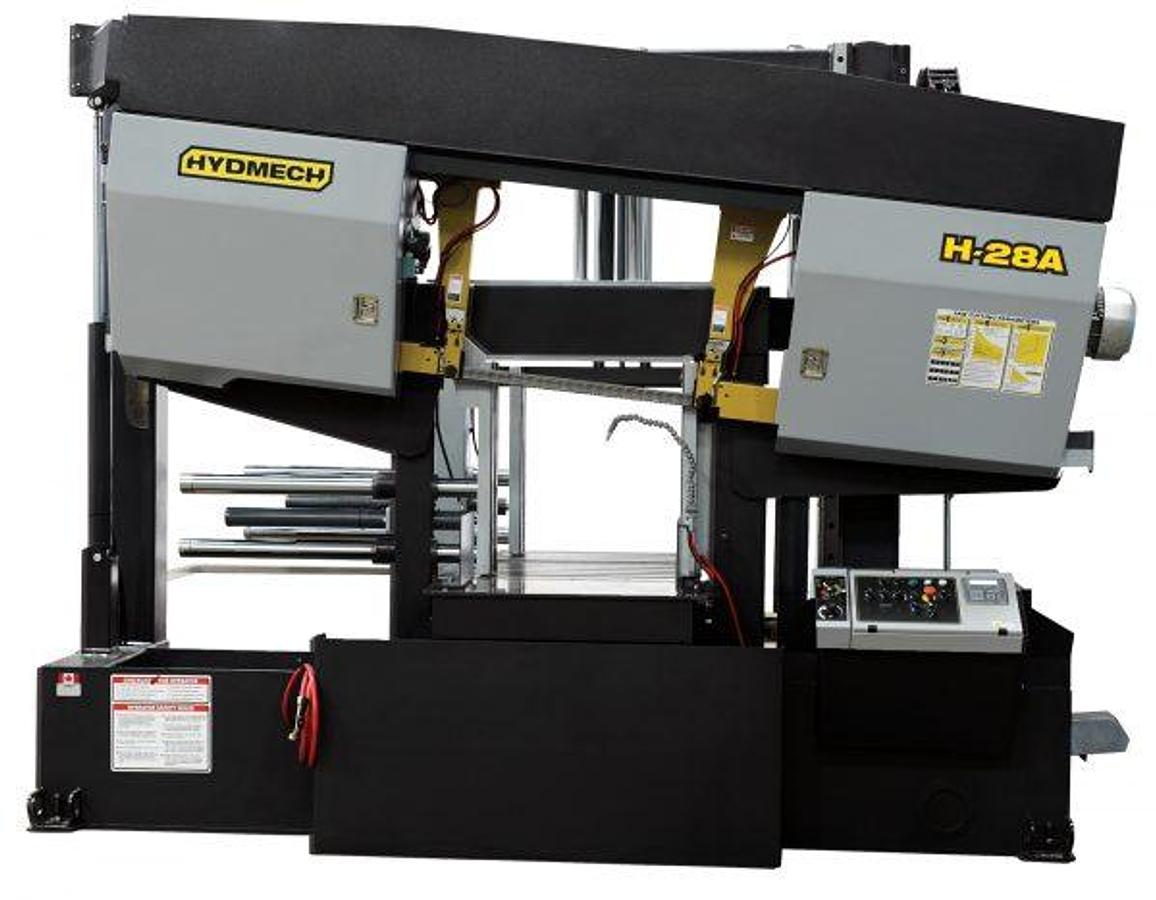

Hyd-Mech H-28A Automatic Horizontal Bandsaw H-28A

Equipped with:

One piece design – no alignment necessary

Split front vise allows for short remnant length. Can be replaced, by request w/retractable datum vise at no charge.

Shuttle features automatic multi-indexing up to 32” in a single stroke w/automatic kerf compensation.

Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.

Hydraulic positive down feed

Blade chamber separates material from cut part

10 HP VFD. True direct blade drive – no belts/pulleys

Full capacity, full stroking hydraulic vises

High resolution feed rate valve allows for constant feed rate when cutting special alloys

Cast iron band wheels

Automatic PLC control programmable up to 99 jobs w/5 in queue

Replaceable blade brush

Automatic chip removal auger

Easy access electrical panel and hydraulics

Blade breakage switch

Hydraulic band tensioning w/digital readout

5 HP hydraulic pump provides system pressure

Hydraulic carbide guide tensioning

Hardened, replaceable wear plates

Safety door interlocks

Flood coolant w/wash down hose

Work light

Out of stock switch

Variable vise pressure

Optional features for additional cost:

Full capacity hydraulic overhead bundling

6° canted head

Blade deviation

Mist lubrication

Out of stock switch

Outboard vise

Outboard vise w/bundling

Pedestal control

Roller discharge table

Vertical alignment rollers

Laser light

Idler conveyors and accessories

Power conveyors and accessories

Power transformer
