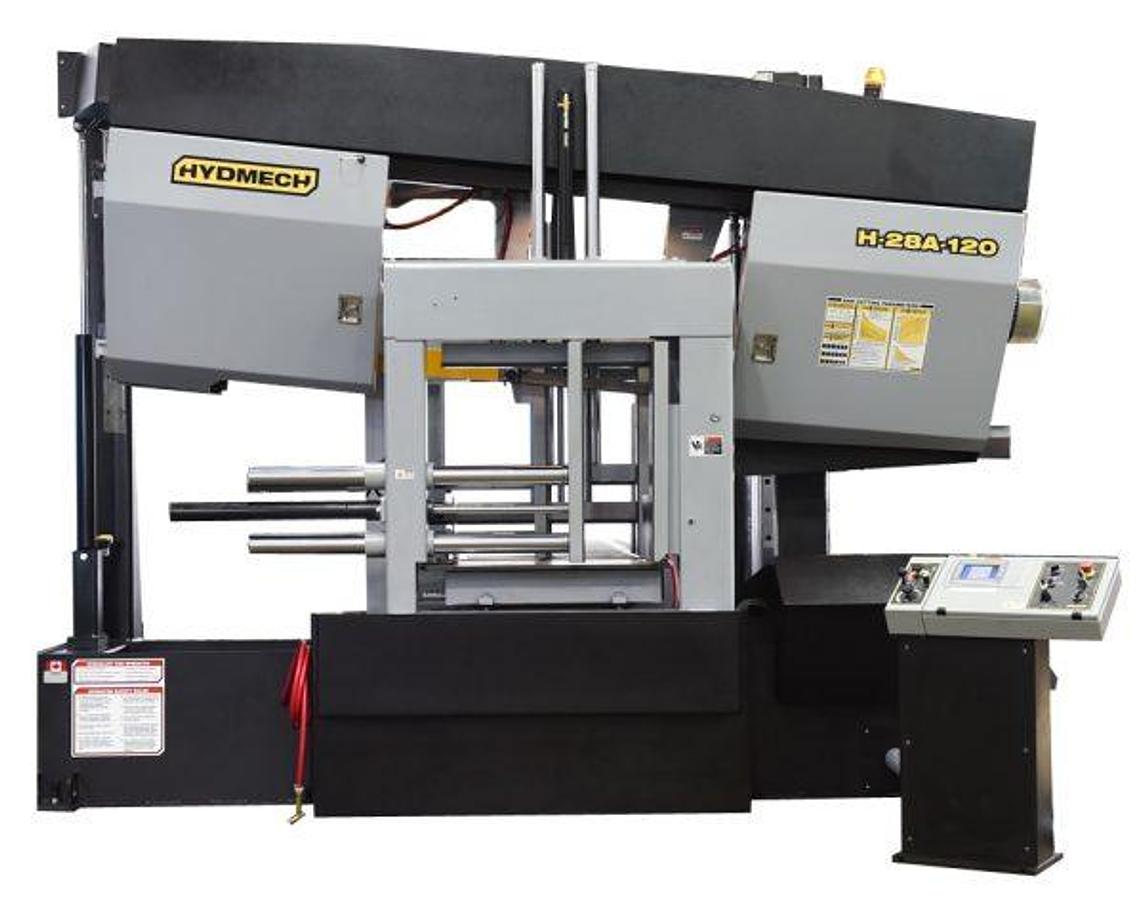

Hyd-Mech H-28A-120 Automatic Horizontal Bandsaw H-28A-120

Equipped with:

6° canted head

Split front vise. Can be replaced, by request w/retractable datum vise at no charge.

Shuttle features automatic multi-indexing up to 32” in a single stroke w/automatic kerf compensation. Powered by a rack

   and pinion servo drive.

Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm

   spacing at all times.

Hydraulic positive down feed

Full capacity hydraulic overhead bundling

10 HP VFD. True direct blade drive – no belts/pulleys

Full capacity, full stroking hydraulic vises

High resolution feed rate valve allows for constant feed rate when cutting special alloys

Blade chamber separates material from cut part

Cast iron band wheels

Automatic PLC control programmable up to 99 jobs w/5 in queue

Replaceable blade brush

Automatic chip removal auger

Out of stock switch

Easy access electrical panel and hydraulics

Blade breakage switch

Hydraulic band tensioning w/digital readout

5 HP hydraulic pump provides system pressure

Hydraulic carbide guide tensioning

Hardened, replaceable wear plates

Safety door interlocks

Flood coolant w/wash down hose

Work light

Laser light

Optional features for additional cost:

Blade deviation

Squaring vise

Mist lubrication

Outboard vise

Outboard vise w/bundling

Pedestal control

Roller discharge table

Vertical alignment rollers

Idler conveyors and accessories

Power conveyors and accessories

Power transformer
