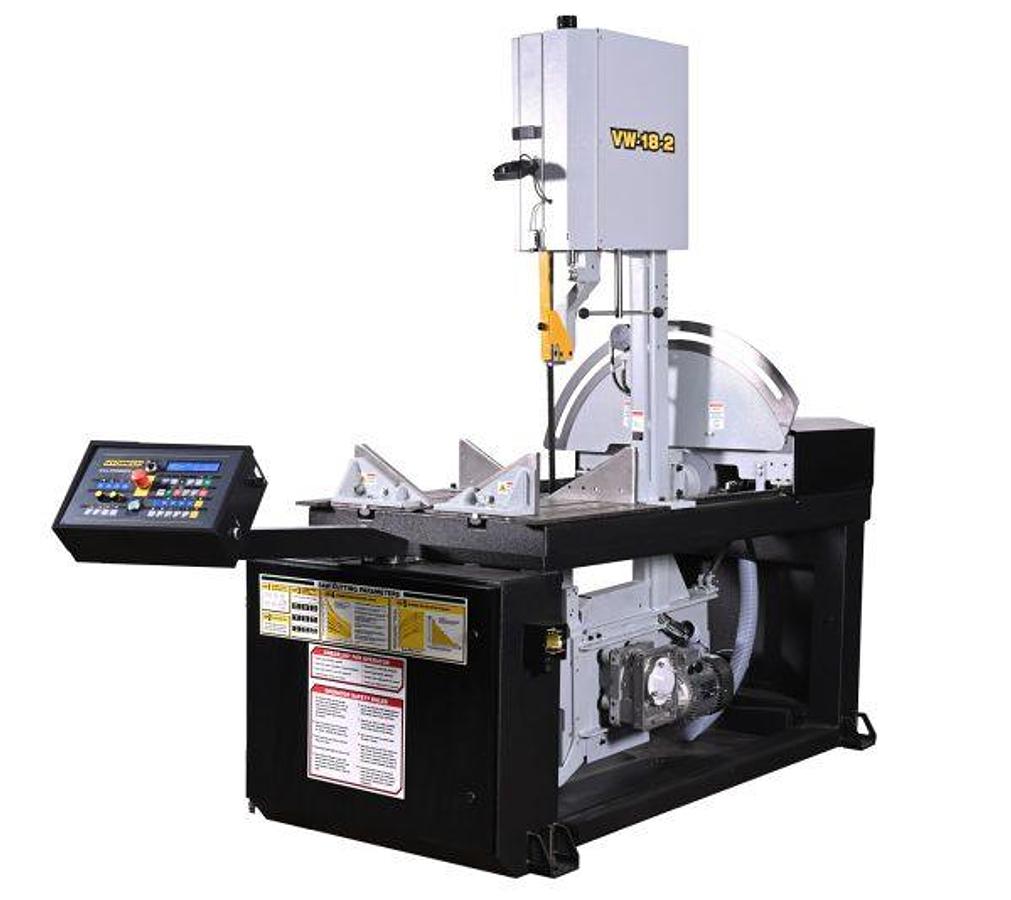

Hyd-Mech VW-18-2 Semi-Automatic Vertical Bandsaw VW-18-2
Hyd-Mech VW-18-2 Semi-Automatic Vertical Bandsaw VW-18-2
Contact us for price
Location:Canada
Description
Equipped with:
Adjustable 3° canted head
Double articulating, semi-automatic control
2 full stroking hydraulic vises
Manual precise head positioning from 60° left to 60° right
Digital angle display w/protractor
Powered hydraulic guide arm
On-demand hydraulics
5 HP VFD. True direct blade drive – no belts/pulleys
Hydraulic positive down feed
Cast iron band wheels
Replaceable blade brush
Easy access electrical panel and hydraulics
Blade breakage switch
Mechanical band tensioning w/digital readout
Replaceable carbide guide inserts
0.5 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant w/wash down hose
Work light
Laser light
Variable vise pressure
Optional features for additional cost:
Power tilt w/programmable go to angle
Hydraulic overhead bundling
Mist lubrication
Chip bucket
Tall square vise inserts
Power transformer
Idler conveyors and accessories
Specifications
| Manufacturer | Hyd-Mech VW-18-2 Semi-Automatic Vertical Bandsaw |
| Model | VW-18-2 |
| Condition | New |
| Stock Number | Hyd-Mech VW-18-2 |
| Capacity rectangle @ 90 degrees | 22" x 18" |
| Capacity rectangle @ 90 degrees (canted) | 20-3/4" x 18" |
| Capacity round @ 90 degrees | 17-1/2" |
| Capacity rectangle @ 45 degrees | 15" x 18" |
| Capacity rectangle @ 45 degrees (canted) | 14" X 18" |
| Capacity round @ 45 degrees | 12-1/2" |
| Capacity rectangle @ 60 degrees | 10-1/4" x 18" |
| Capacity rectangle @ 60 degrees (canted) | 9-1/2" x 18" |
| Capacity round @ 60 degrees | 10-1/4" |
| Capacity round @ 60 degrees (canted) | 9-1/2" |
| Blade size | 1-1/4" x 16' 3" |
| Blade drive | 5 HP, VFD |
| Machine voltage | 480V |
| Blade speeds | 65-385 SFM |
| Coolant tank capacity | 12 gallons |
| Table height | 36-1/2" |
| Machine weight | 2,700 LBS |
| Machine dimensions | 65" x 123" x 97" |
