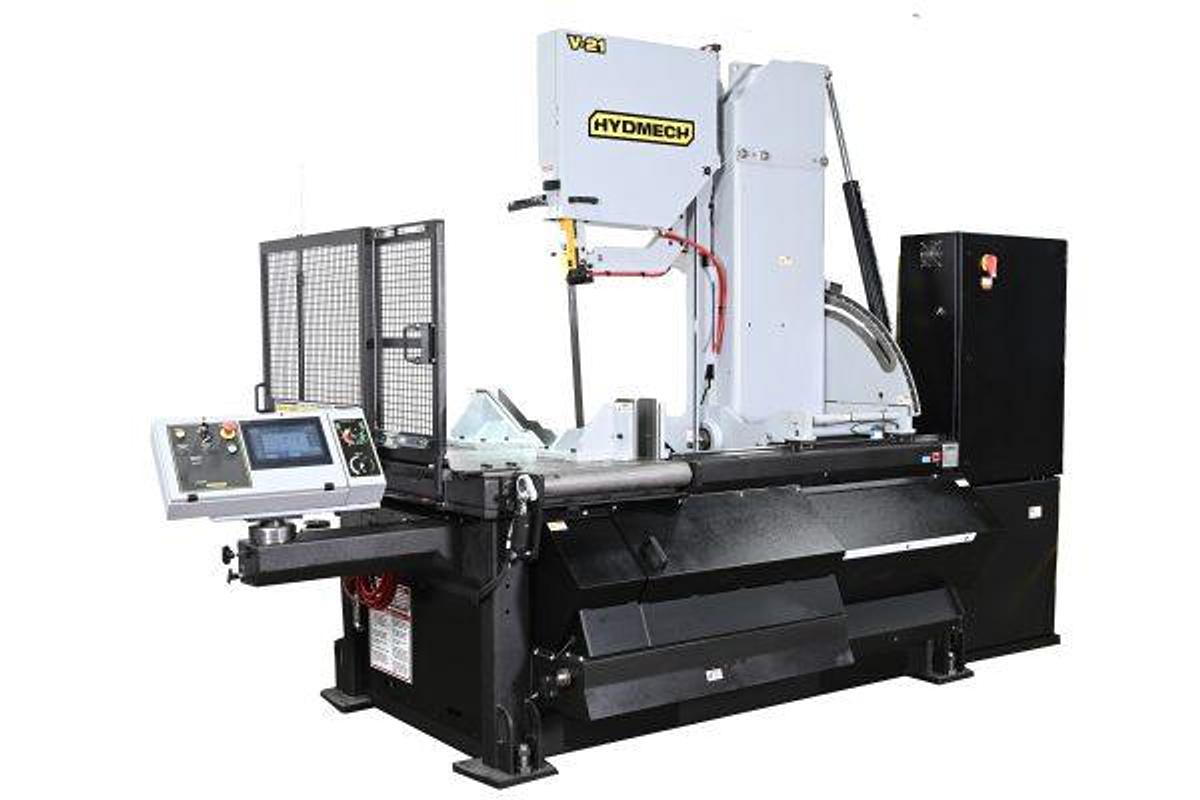

Hyd-Mech V-21 Automatic Vertical Bandsaw V-21
Hyd-Mech V-21 Automatic Vertical Bandsaw V-21
Contact us for price
Location:Canada
Description
Equipped with:
4° canted head
“Go to” angle functionality from 60° left to 60° right
Hydraulic head tilt
Cast iron band wheels
Hydraulic DDF system
2 full stroking hydraulic vises
Hydraulically powered programmable guide arm attached to saw column
Variable vise pressure
10” color screen HMI. No flipping from screen-to-screen, the control is interactive w/messages for the operator that
reduces the learning curve. User friendly graphical icon programming for miter cutting.
10 HP VFD. True direct blade drive – no belts/pulleys
Replaceable blade brush
Digital feed rate display
Blade breakage switch
Easy access electrical panel and hydraulics
Hydraulic band tensioning w/digital readout
Replaceable carbide guide inserts
3 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant w/wash down hose
Work light
Laser light
Optional features for additional cost:
Chip bucket w/pump
Hydraulic chip paddle conveyor
Hydraulic overhead bundling (bundling height is limited to 22” @ 90°, 15 ½” @ 45°, 7” @ 60°)
Mist lubrication
Tall square vise inserts
Pop-up feed roller
Out feed vise bundling
Idler conveyors and accessories
Power conveyors and accessories
Power transformer
Specifications
| Manufacturer | Hyd-Mech V-21 Automatic Vertical Bandsaw |
| Model | V-21 |
| Condition | New |
| Stock Number | Hyd-Mech V-21 |
| Capacity rectangle @ 90 degrees | 26" x 21" |
| Capacity rectangle @ 90 degrees w/overhead bundling | 22" x 21" |
| Capacity round @ 90 degrees | 21" |
| Capacity rectangle @ 45 degrees right | 18-1/4" x 21" |
| Capacity rectangle @ 45 degrees right w/overhead bundling | 15-1/2" x 21" |
| Capacity round @ 45 degrees right | 17" |
| Capacity rectangle @ 45 degrees left | 18-1/4" x 21" |
| Capacity rectangle @ 45 degrees left w/overhead bundling | 15-1/2" x 16-1/2" |
| Capacity round @ 45 degrees left | 17" |
| Capacity rectangle @ 60 degrees right | 12-1/2" x 21" |
| Capacity rectangle @ 60 degrees right w/overhead bundling | 7" x 21" |
| Capacity round @ 60 degrees right | 12-1/2" |
| Capacity rectangle @ 60 degrees left | 11" x 21" |
| Capacity rectangle @ 60 degrees left w/overhead bundling | 7" x 21" |
| Capacity round @ 60 degrees left | 11" |
| Blade size | 1-1/2" x 19' 4" |
| Blade drive | 10 HP, VFD |
| Machine voltage | 480V |
| Blade speeds | 65-385 SFM |
| Table height | 44" |
| Machine weight | 8,700 LBS |
| Machine dimensions | 76" x 181" x 112" |
