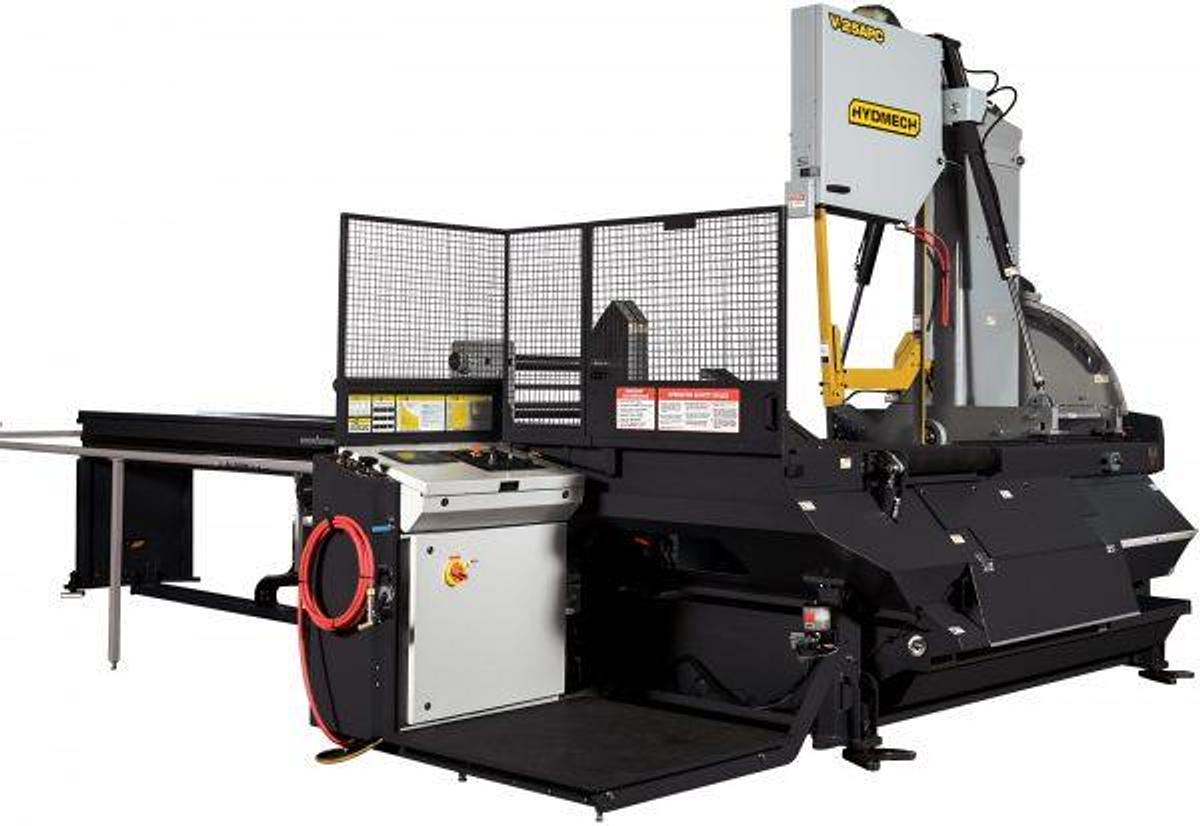

Hyd-Mecch V-25APC Automatic Vertical Bandsaw V-25APC

Equipped with:

6° canted head

60” bar feed, left side

Shuttle features automatic multi-indexing up to 60” (120” optional) in a single stroke w/automatic kerf

compensation. Powered by a rack and pinion servo drive.

Automatic programmable mitering w/”go to” angle functionality from 60° left to 60° right

Hydraulic head tilt

Cast iron band wheels

Automatic PLC, touch screen control programmable up to 1000 jobs w/20 in queue.

2 full stroking hydraulic vises

Hydraulically powered, programmable guide arm attached

10 HP VFD. True direct blade drive – no belts/pulleys

Blade chamber separates material from cut part

Hydraulic chip conveyor efficiently removes chips from saw base

Replaceable blade brush

Out of stock switch

Blade breakage switch

Easy access electrical panel and hydraulics

Pop-up feed roller – one opposite bar feed

Hydraulic band tensioning w/digital readout

Replaceable carbide guide inserts

3 HP hydraulic pump provides system pressure

Safety door interlocks

Flood coolant w/wash down hose

Work light

Laser light

Variable vise pressure

Optional features for additional cost:

Chip bucket w/pump

Hydraulic overhead bundling

Mist lubrication

Tall square vise inserts

Out feed vise

Right side infeed shuttle

10’ shuttle infeed

Bridge/interface bracket

Powered bridge/interface bracket

Idler conveyors and accessories

Power conveyors and accessories

Power transformer
