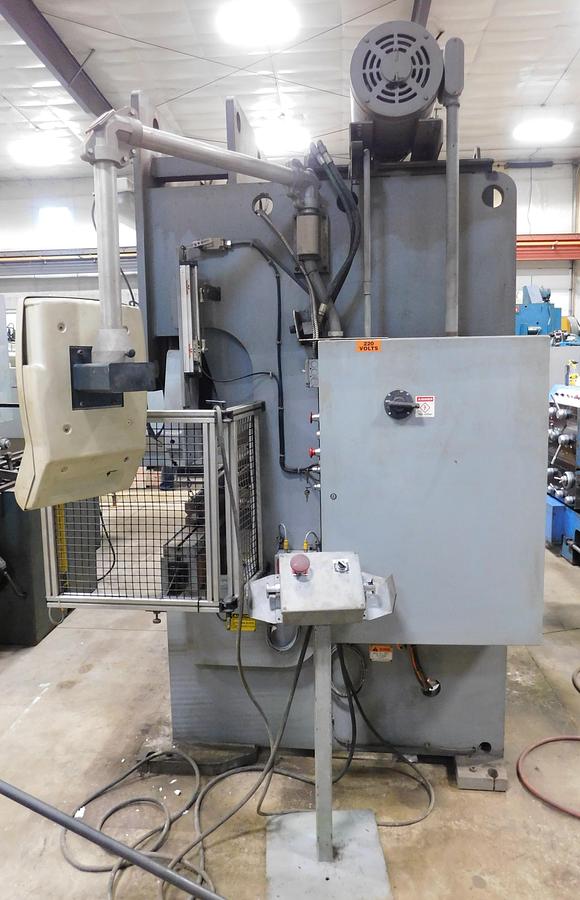

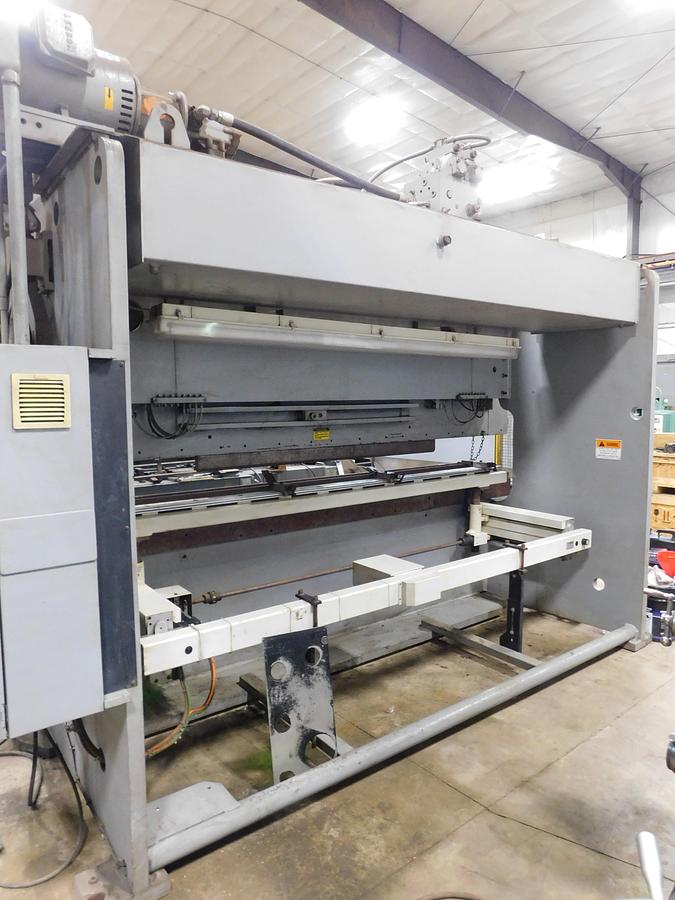

Standard Industrial 12' x 200 Ton Hydraulic Press Brake AB200-12
Standard Industrial 12' x 200 Ton Hydraulic Press Brake AB200-12
$59,500 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:
4 way lower die holder ESA 3 axis CNC control
10’ 4 way die (3, 2, 1 ¼, 1) Tonnage control
6’ top punch Palm button pedestal
Light curtains and slide cages Electric foot pedal
Manifold lubrication Work light
Specifications
| Manufacturer | Standard Industrial 12' x 200 Ton Hydraulic Press Brake |
| Model | AB200-12 |
| Condition | Used |
| Serial Number | F1110-1831 |
| Stock Number | 11188 |
| Overall bending length of ram and bed | 144" |
| Distance between housings | 10' 6" |
| Throat depth | 6" |
| Open height | 13" |
| Stroke | 6" |
| Closed height | 7” |
| Ram speeds (approach) | 92 IPM |
| Ram speeds (bend) | 25 IPM |
| Ram speeds (return) | 120 IPM |
| Main motor | 25 HP |
| Bed height | 36" |
| Overall height | 113" |
| Machine weight | 30,000 LBS |
