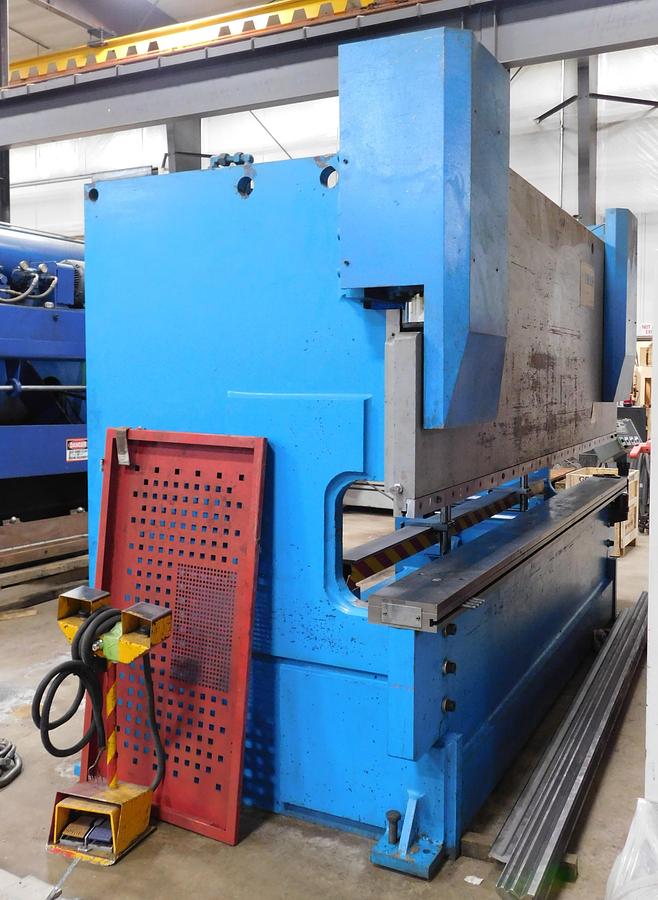

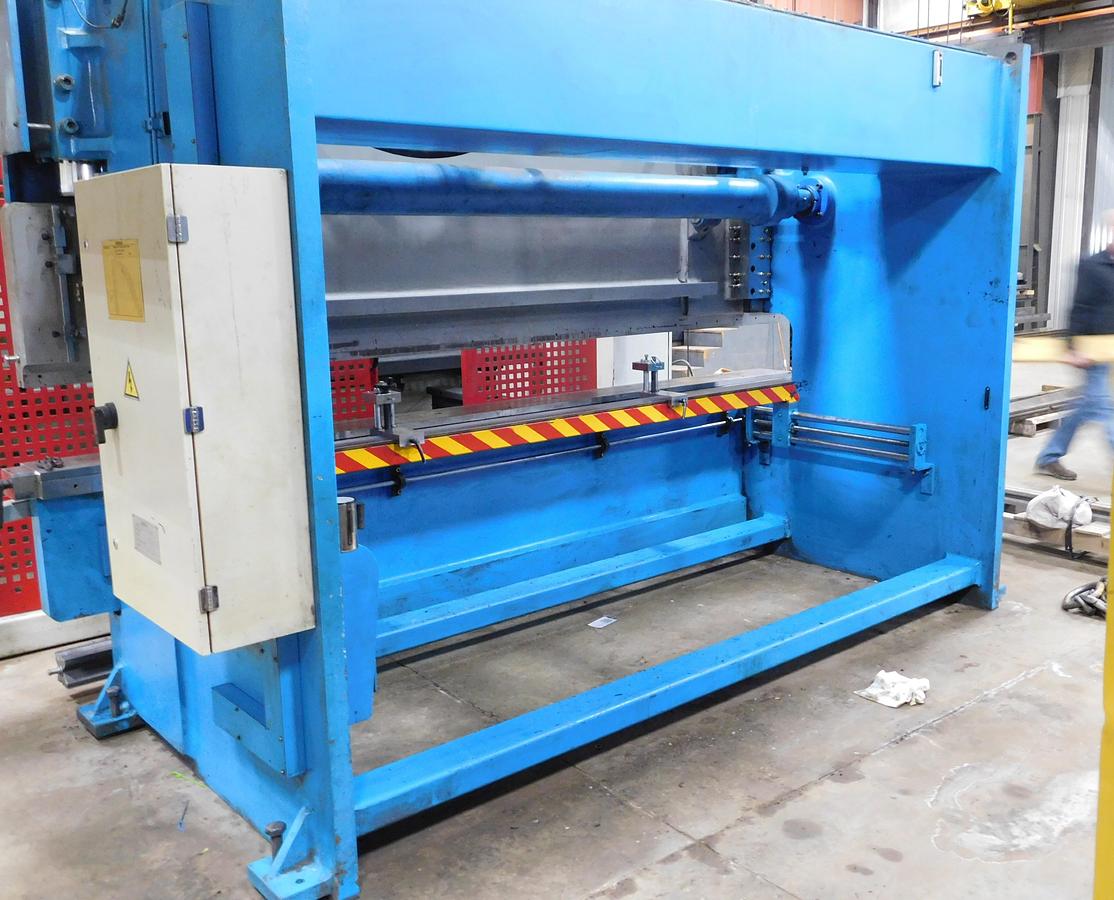

2013 Krras 12' x 200 Ton Hydraulic CNC Press Brake APB200-3700
2013 Krras 12' x 200 Ton Hydraulic CNC Press Brake APB200-3700
$47,500 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:

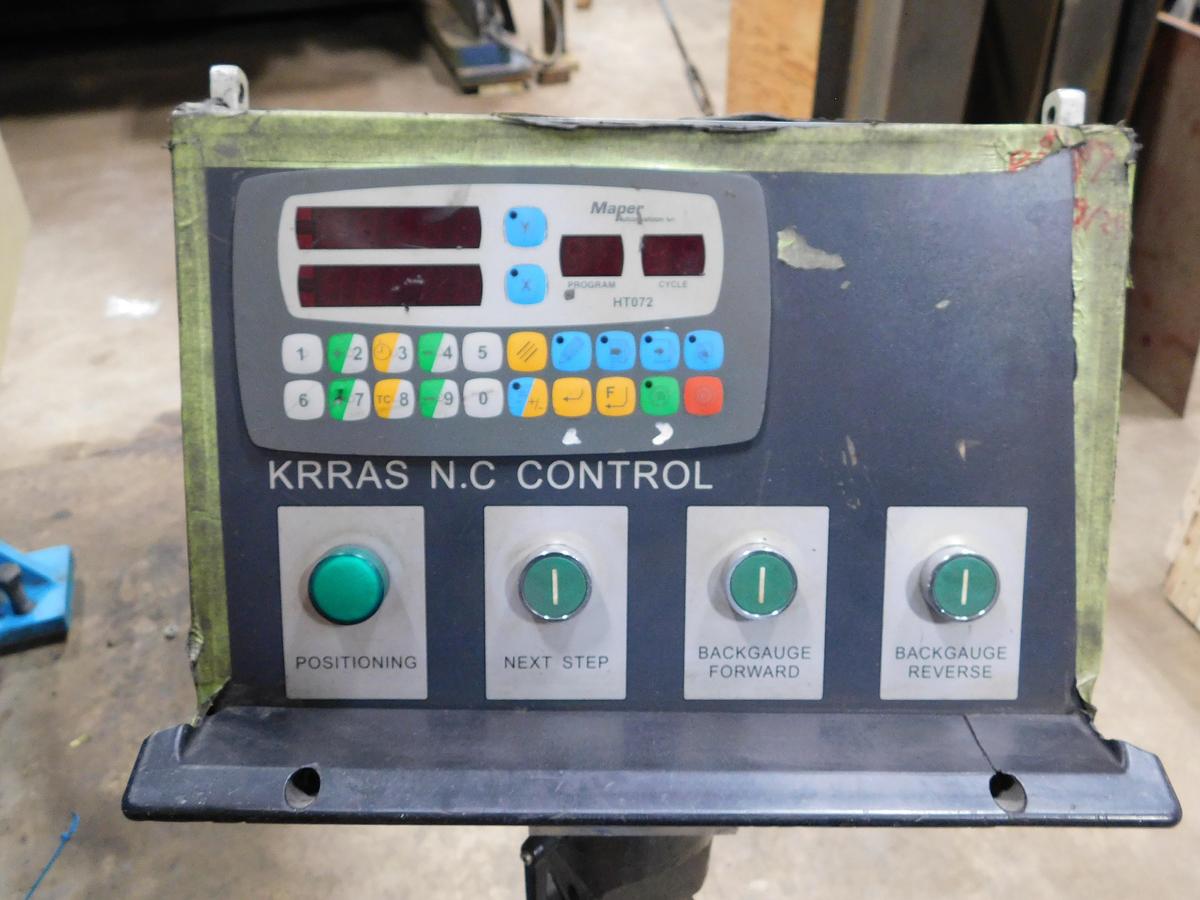

Krras HT072 2 axis CNC controller
Tonnage control
Manual crowning
Palm button pedestal
Electric foot switch
Multi-V 4 way die block
Top punch
Specifications
| Manufacturer | Krras 12' x 200 Ton Hydraulic CNC Press Brake |
| Model | APB200-3700 |
| Year | 2013 |
| Condition | Used |
| Serial Number | 7251 |
| Stock Number | 11190 |
| Overall bending length of ram and bed | 145" |
| Distance between housings | 122" |
| Throat depth | 14" |
| Open height | 15" |
| Stroke | 7" |
| Main motor | 20 HP |
| Approach speed | 2.5 IPS |
| Bend speed | 0.3 IPS |
| Return speed | 2.8 IPS |
| Machine dimensions | 157" x 76" x 110" |
| Machine weight | 28,500 LBS |
