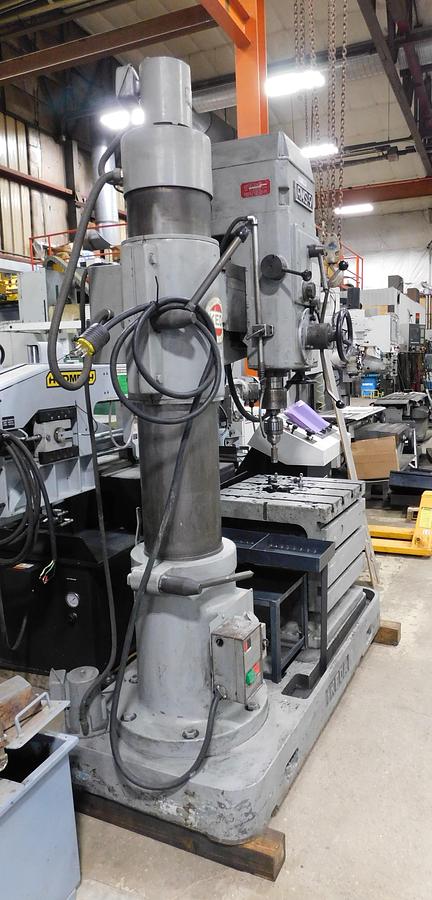

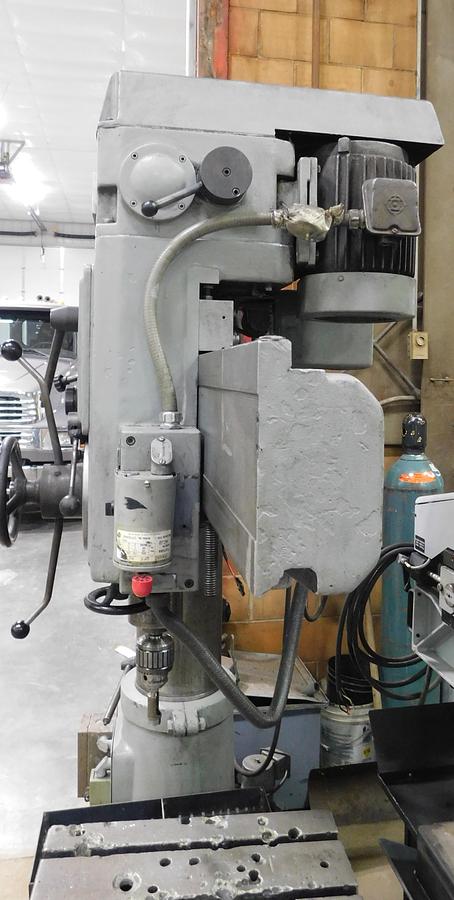

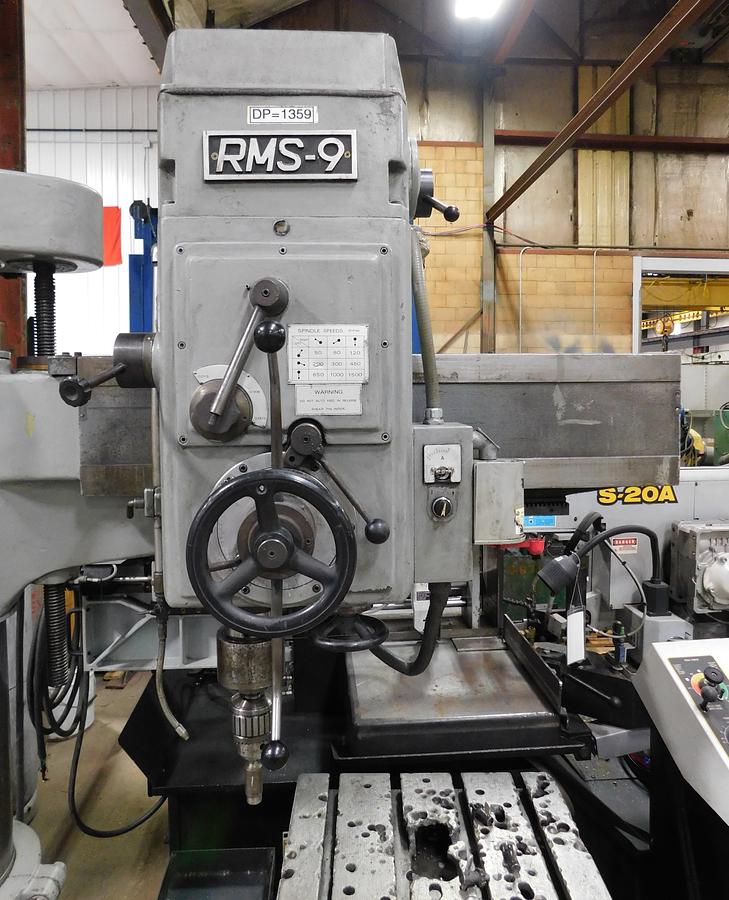

1979 Ikeda 3' 9" Radial Drill RMS-9
1979 Ikeda 3' 9" Radial Drill RMS-9
$3,950 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:
Power elevation to arm
Manual clamp to arm
Forward reverse switch
¾ Jacobs chuck
Box table
Specifications
| Manufacturer | Ikeda 3' 9" Radial Drill |
| Model | RMS-9 |
| Year | 1979 |
| Condition | Used |
| Serial Number | 79308 |
| Stock Number | 11196 |
| Column diameter | 9" |
| Arm length | 36" |
| Spindle speeds | 50-1500 RPM (9 steps) |
| Spindle feed | 0.0015, 0.010, 0.006, 0.003 |
| Spindle taper | 4 MT |
| Main motor | 2.2 kw |
| Machine dimensions | 28" x 60" x 78" |
| Estimated weight | 4,000 LBS |
