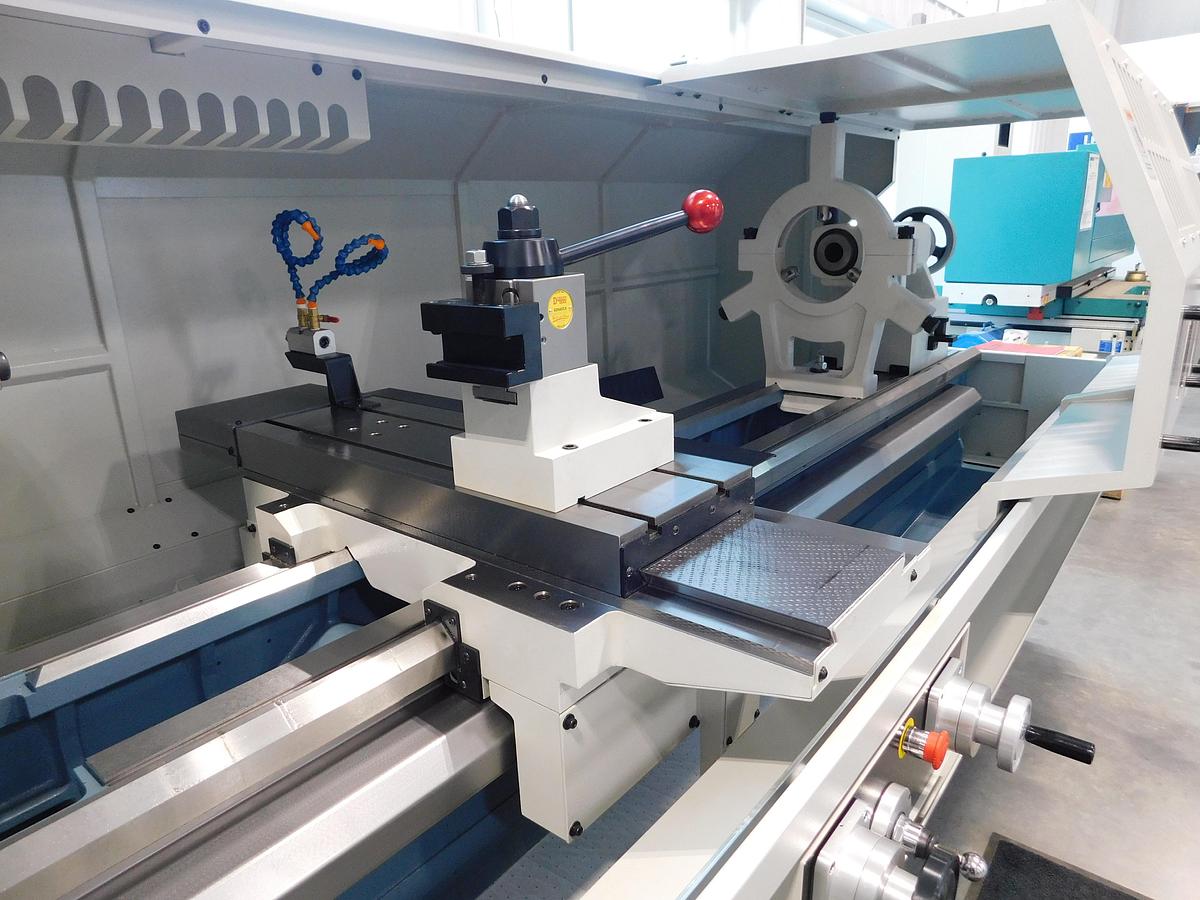

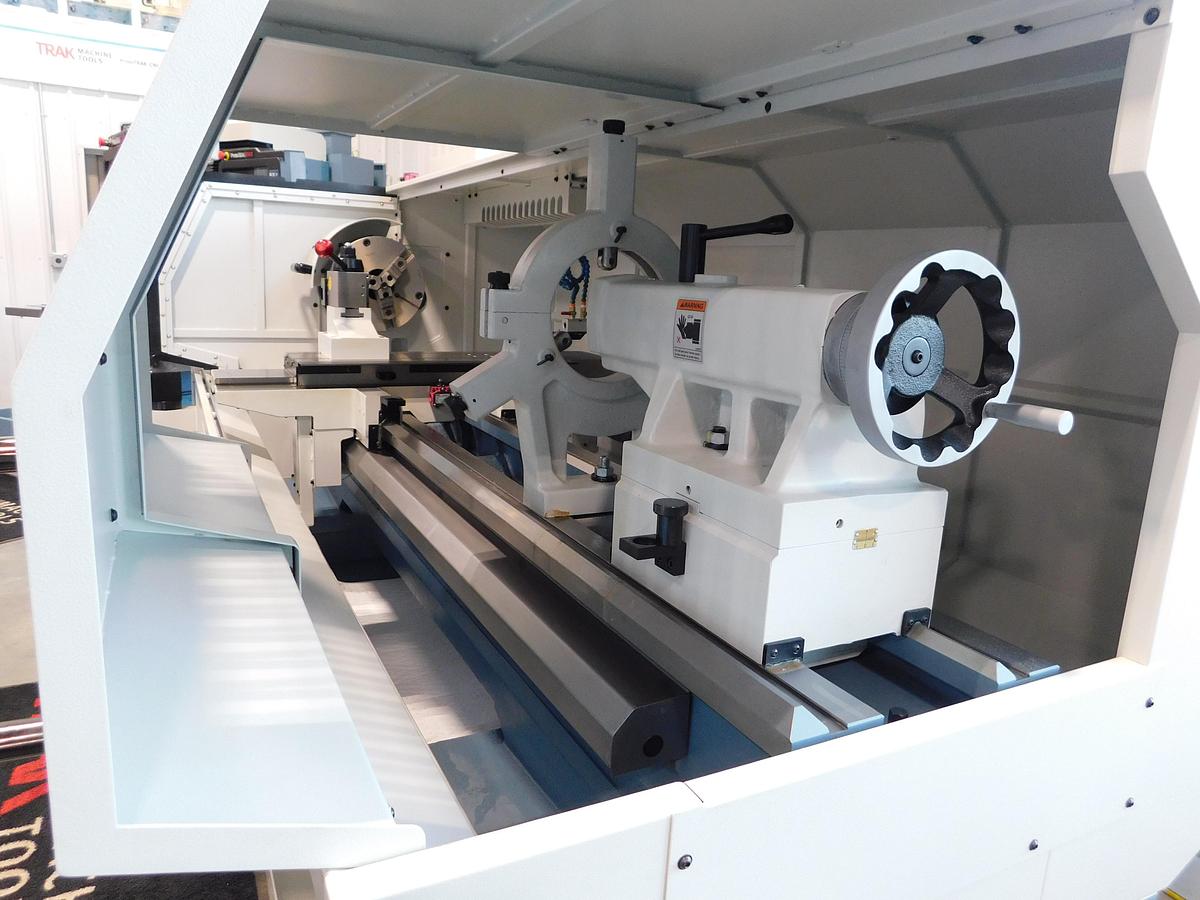

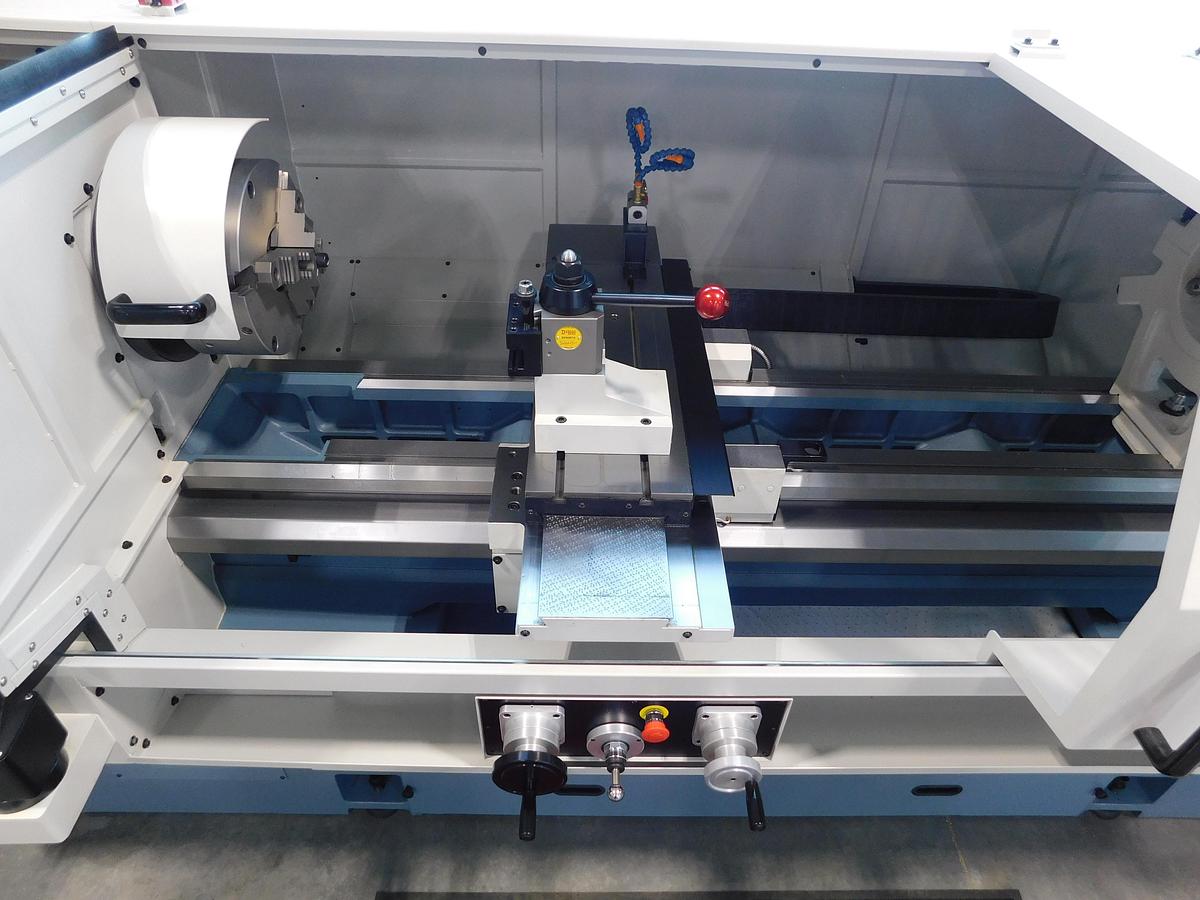

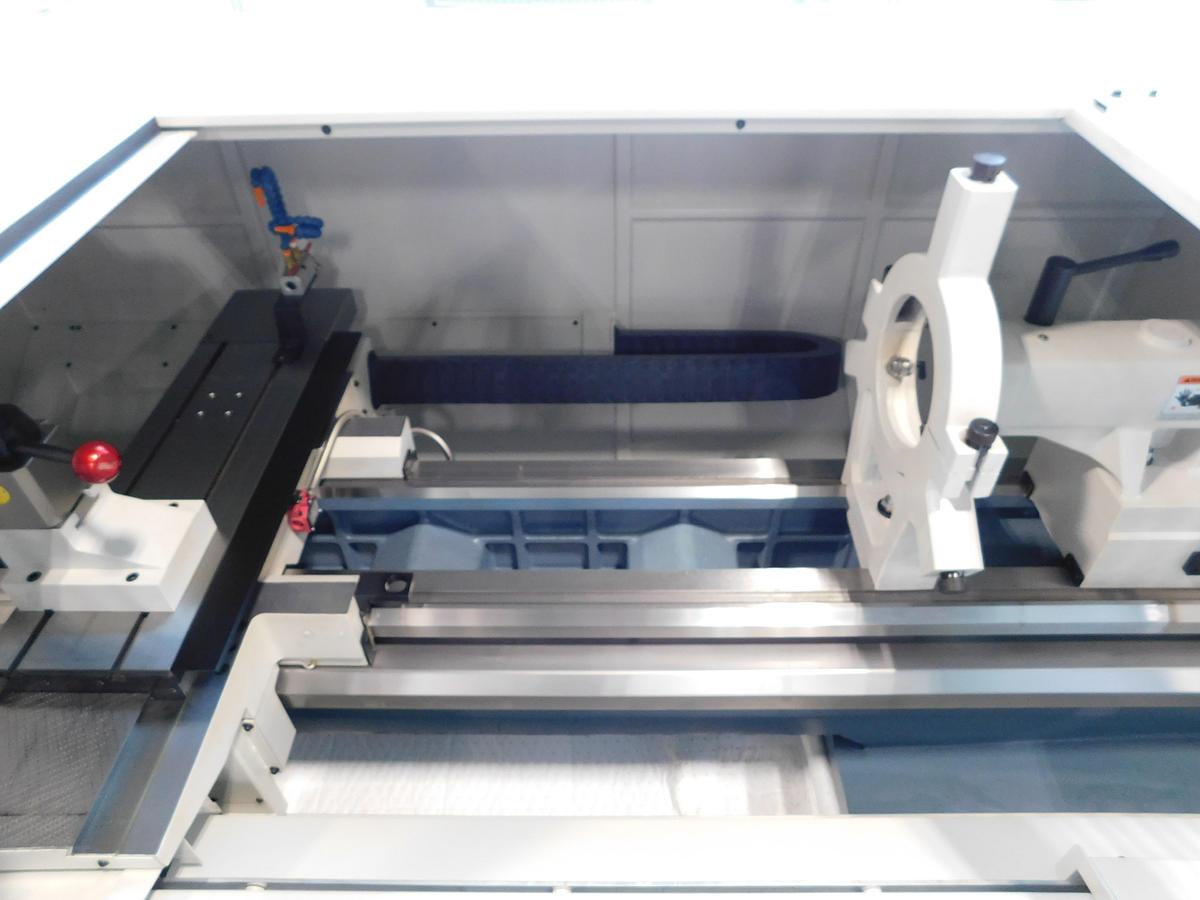

TRAK TRL2470RX CNC Lathee w/RLX Control TRL2470RX
Featured
TRAK TRL2470RX CNC Lathee w/RLX Control TRL2470RX
$99,437.73 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:
DXF converter
TRAKing software
12” Buck Chuck D8
Steady rest
Tooling kit – 1”
Limit switch
Specifications
| Manufacturer | TRAK TRL2470RX CNC Lathee w/RLX Control |
| Model | TRL2470RX |
| Condition | New |
| Serial Number | 261EH003 |
| Stock Number | 11212 |
| Height of centers | 12" |
| Distance between centers | 70" |
| Swing over bed | 24" |
| Swing over saddle wings | 24" |
| Swing over cross slide | 14.5" |
| Cross slide travel | 12.5" |
| Tool section max | 1" |
| Coolant tank capacity | 15 gallons |
| Coolant pump motor | 1/8 HP |
| Bed width | 14.57" |
| Bed height | 15" |
| Spindle nose | D1-8 |
| Spindle through hole | 4.09" |
| Spindle taper | MT#8 |
| Spindle diameter front bearing | 5.51" |
| Number of bearings | 2 |
| Number of spindle speed ranges | 2 |
| Spindle speed range | 40-670, 100-1800 RPM |
| Spindle motor | 15 HP |
| Voltage | 200-240V |
| Main motor | 200V/3PH/60Hz |
| Quill travel | 8.5" |
| Quill diameter | 3.5" |
| Quill taper | 5 MT |
| Maximum rapid | 400 IPM on Z axis |
| Machine dimensions | 129" x 60" x 77" |
| Machine weight | 6,500 LBS |
