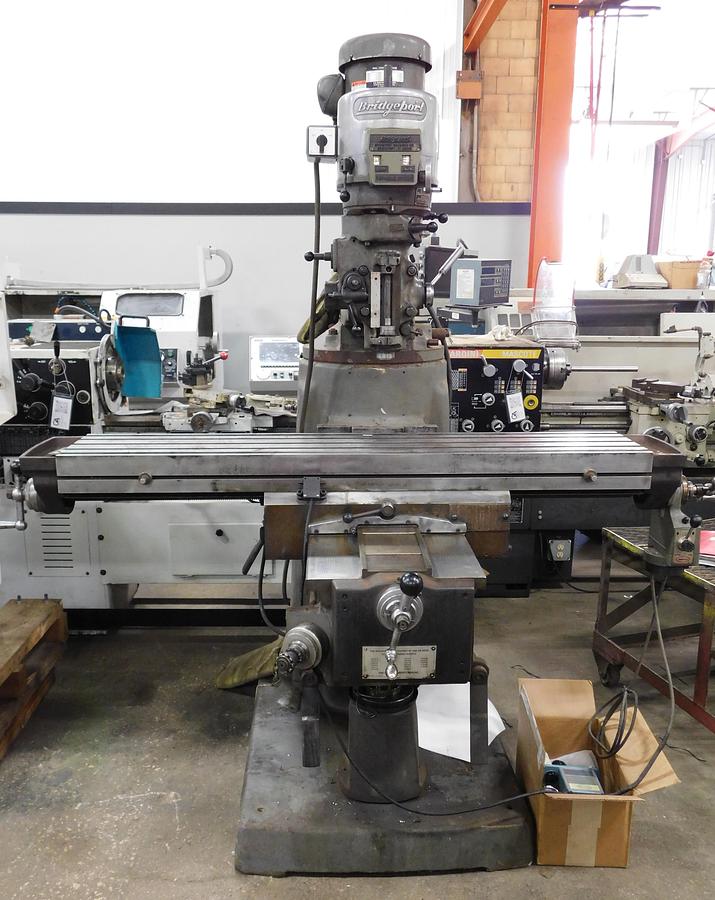

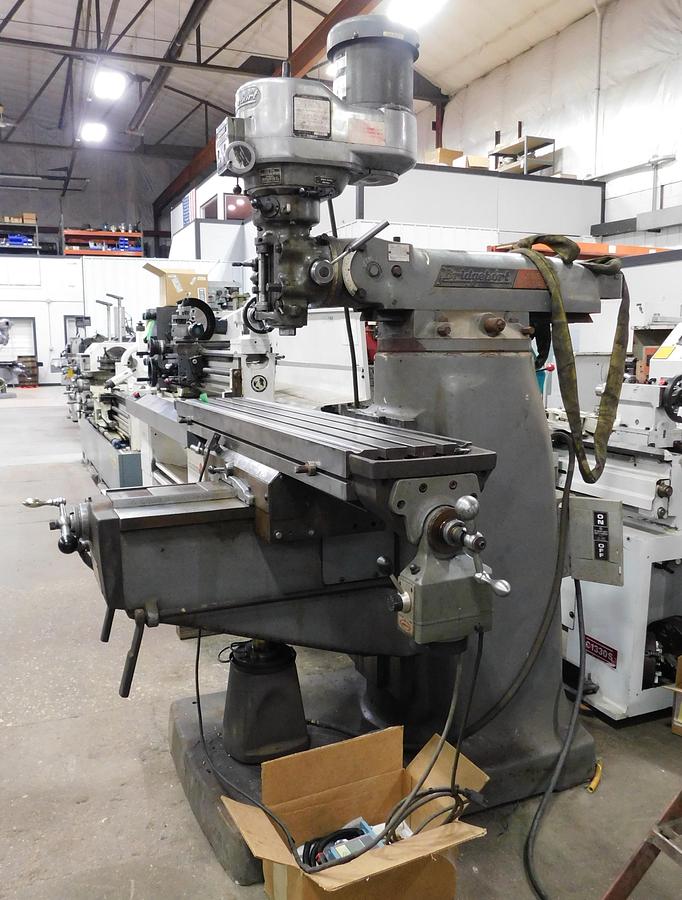

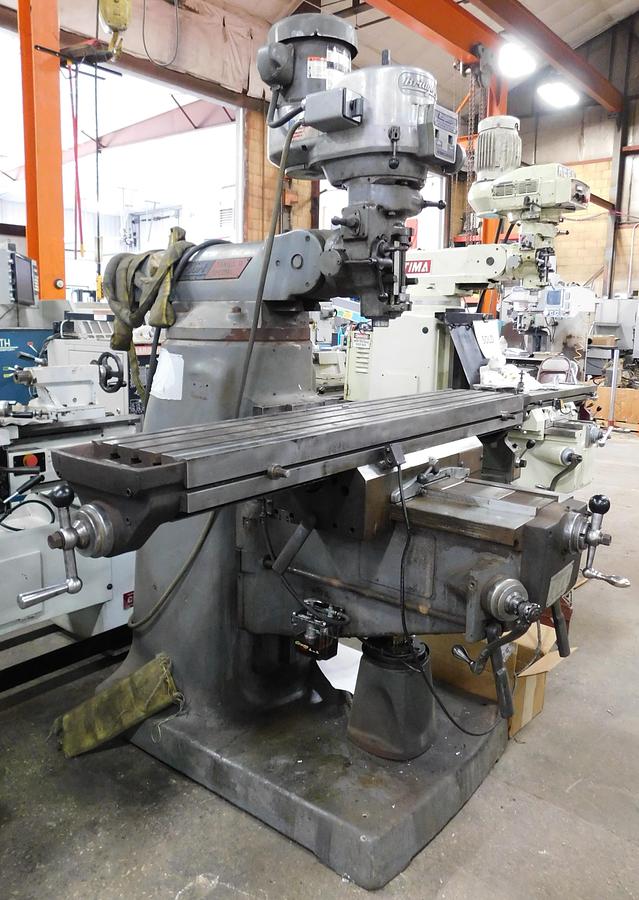

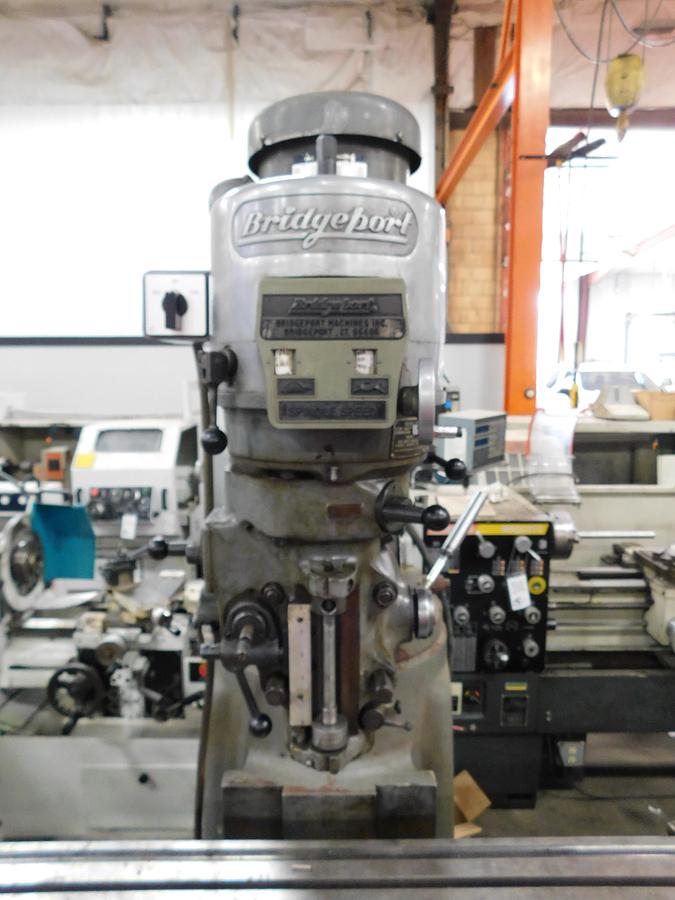

Bridgeport Series II Special Milling Machine Series II
Bridgeport Series II Special Milling Machine Series II
$8,750 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:
Servo X axis power feed
Chrome ways
Air assisted knee
One shot lubrication
Specifications
| Manufacturer | Bridgeport Series II Special Milling Machine |
| Model | Series II |
| Condition | Used |
| Serial Number | 8188S |
| Stock Number | 11228 |

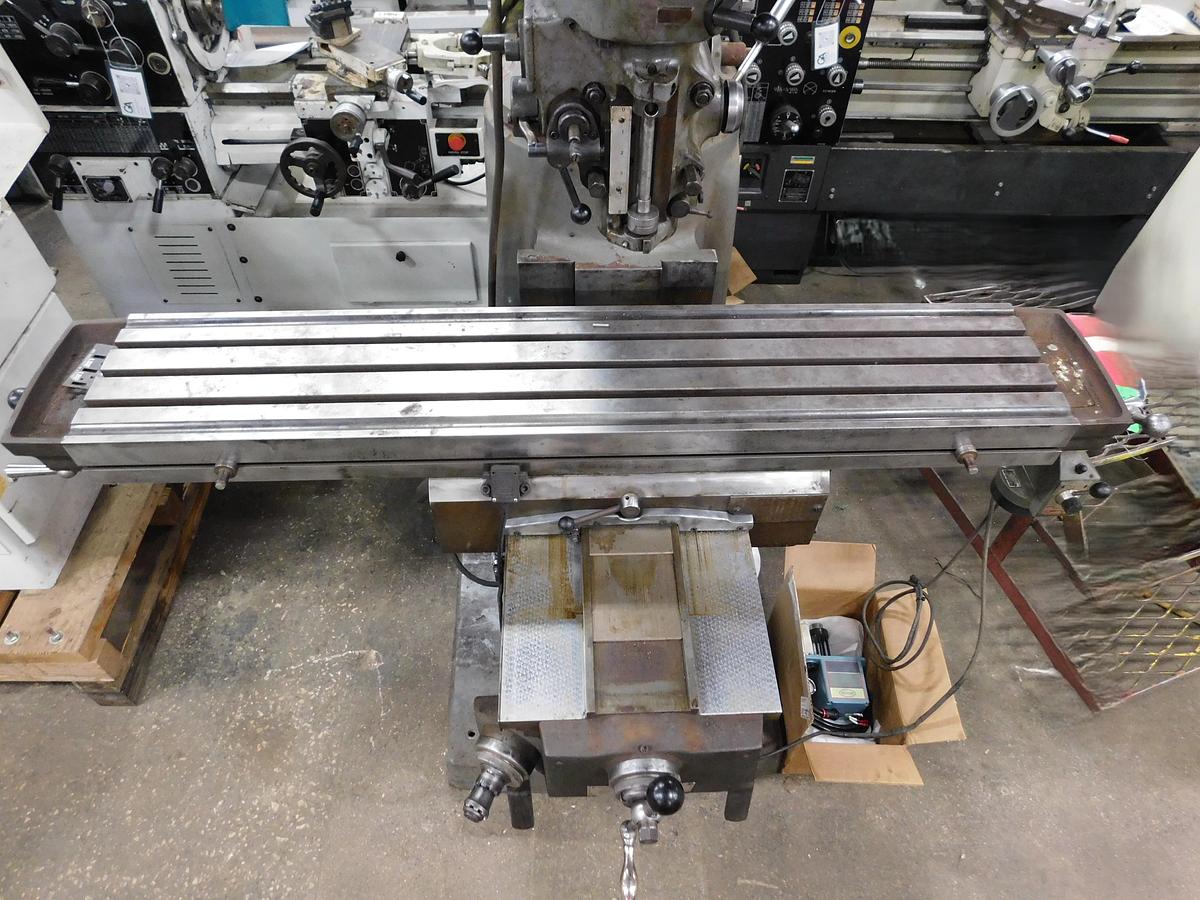

| Table size | 11" x 58" |
| Table travels | 15" x 33-1/2" |
| Knee travel | 16" |
| Main motor | 2 HP, 220/440V, 3 PH |
| Spindle speeds | 60-4200 RPM |
| Quill travel | 5" |
| Spindle taper | R-8 |
| Quill feeds | 0.0016, 0.0032, 0.006 |
| Maximum table weight | 1,500 LBS |
| Machine weight | 4,500 LBS |
