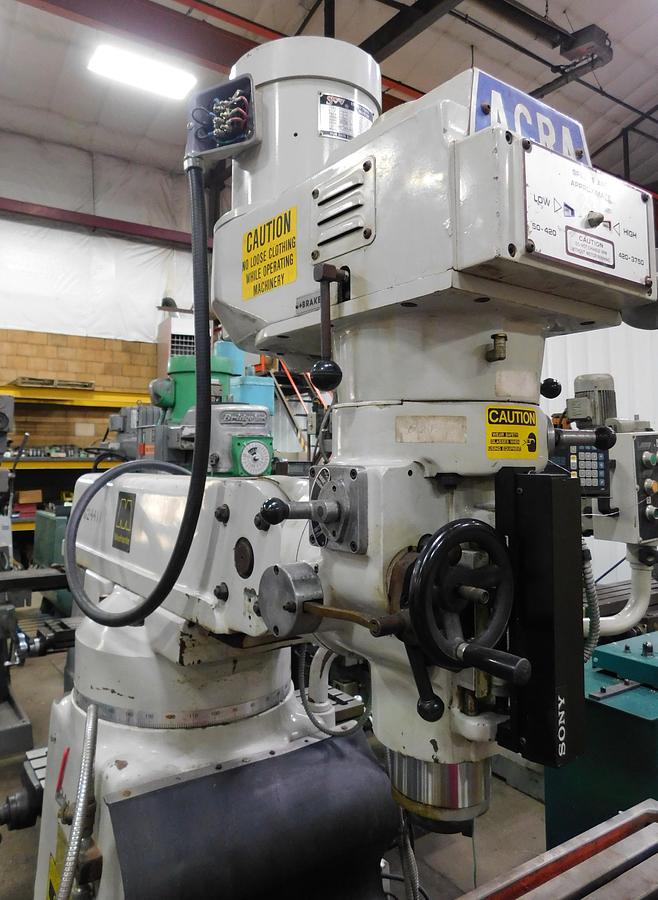

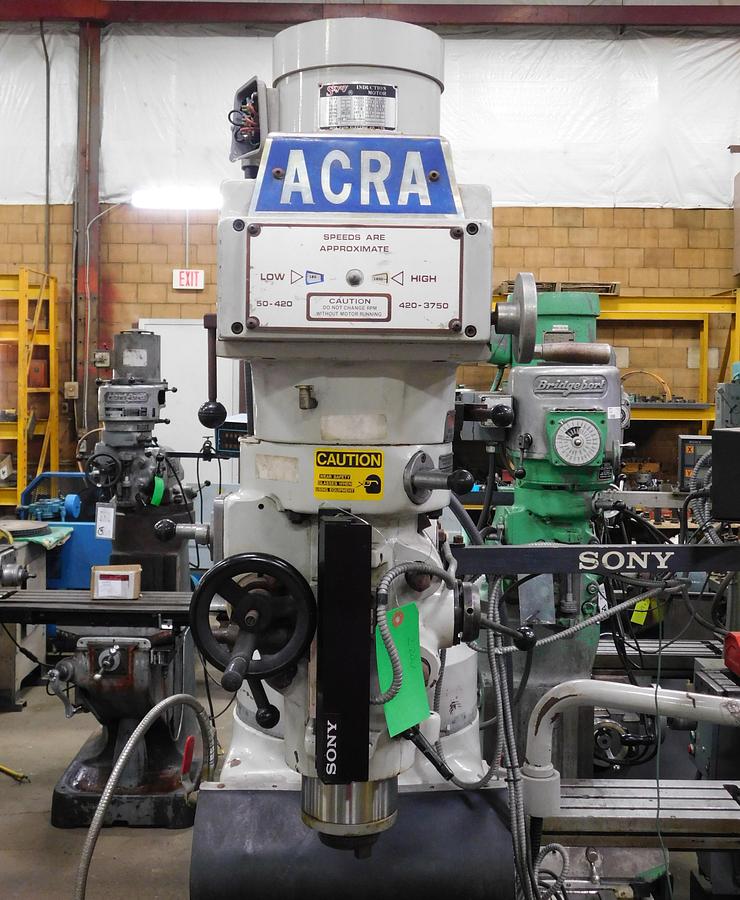

Acra HD Vertical Milling Machine AM5V
Acra HD Vertical Milling Machine AM5V
$12,500 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:

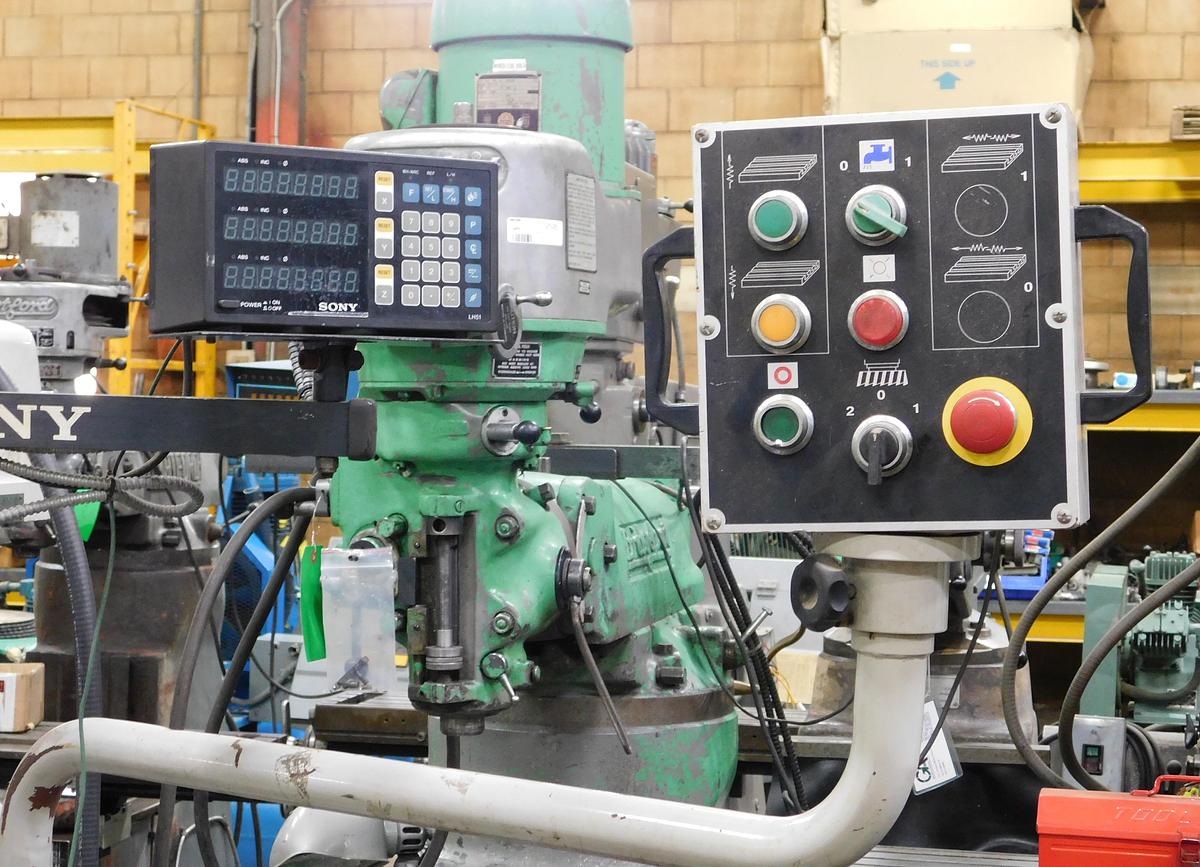

Sony 3 axis DRO
Automatic lubrication
Servo 150 power feed to X and Y
Integrated knee feed
Hardened and ground square ways
Specifications
| Manufacturer | Acra HD Vertical Milling Machine |
| Model | AM5V |
| Condition | Used |
| Serial Number | 971840 |
| Stock Number | 11230 |

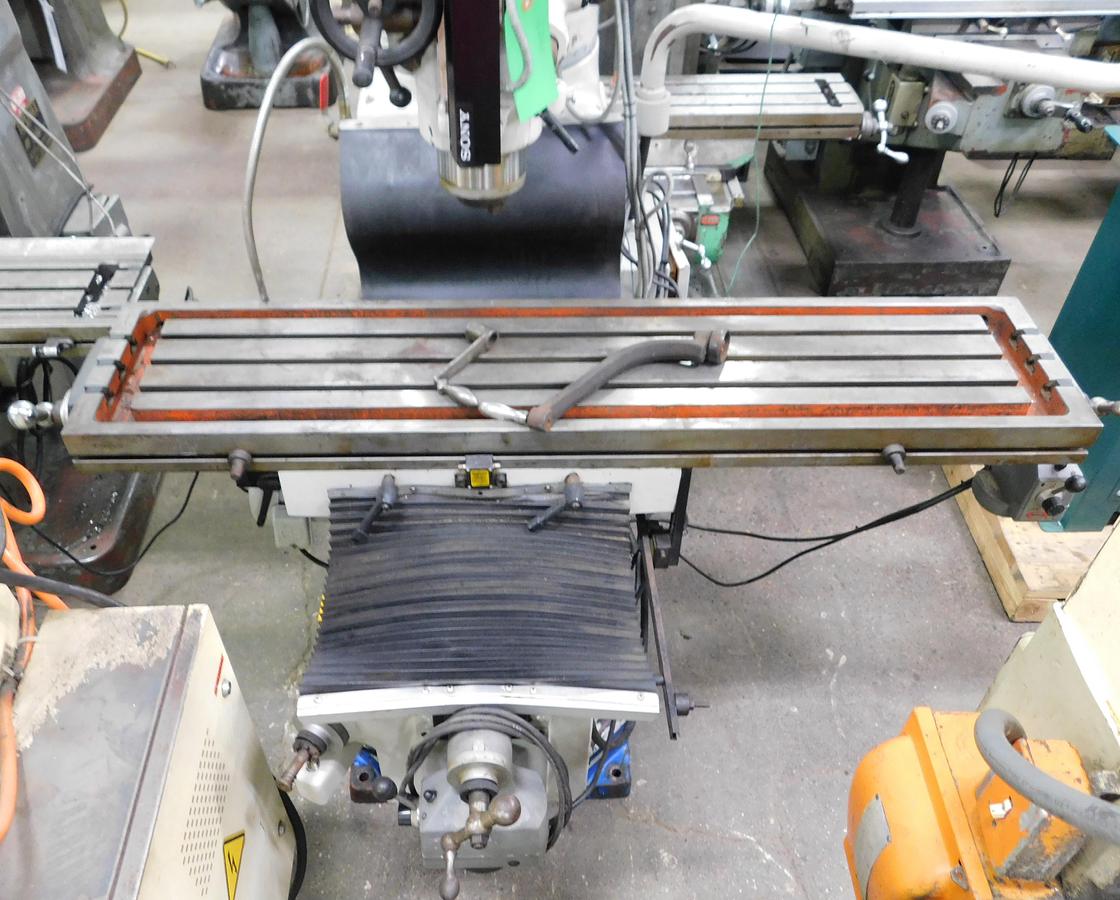

| Table size | 12-1/2" x 58" |
| Table travels | 15-1/2" x 42" |
| Knee travel | 16" |
| Main motor | 5 HP, 220/440V, 3 PH |
| Spindle taper | CAT40 |
| Spindle speeds | 50-420/420-3750 RPM |
| Quill feeds | 0.0032, 0.0017, 0.0053 |
| Machine dimensions | 6' x 6' x 7' |
| Machine weight | 4,000 LBS |
