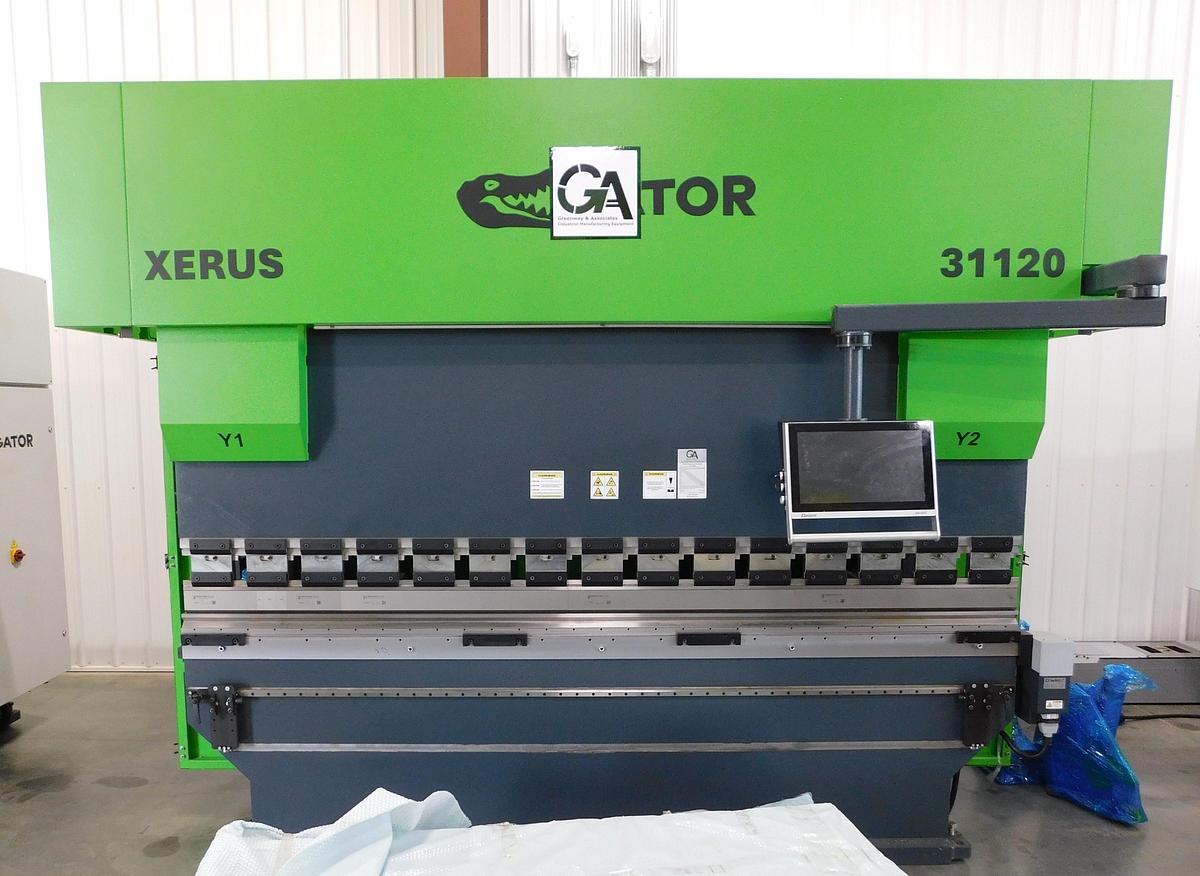

Gator 10' x 135 Ton CNC Press Brake XERUS 31120

Gator 10' x 135 Ton CNC Press Brake XERUS 31120

$134,000 (USD)

Location:Orange City, IA

or
Call 712-737-8700

Description

Equipped with:

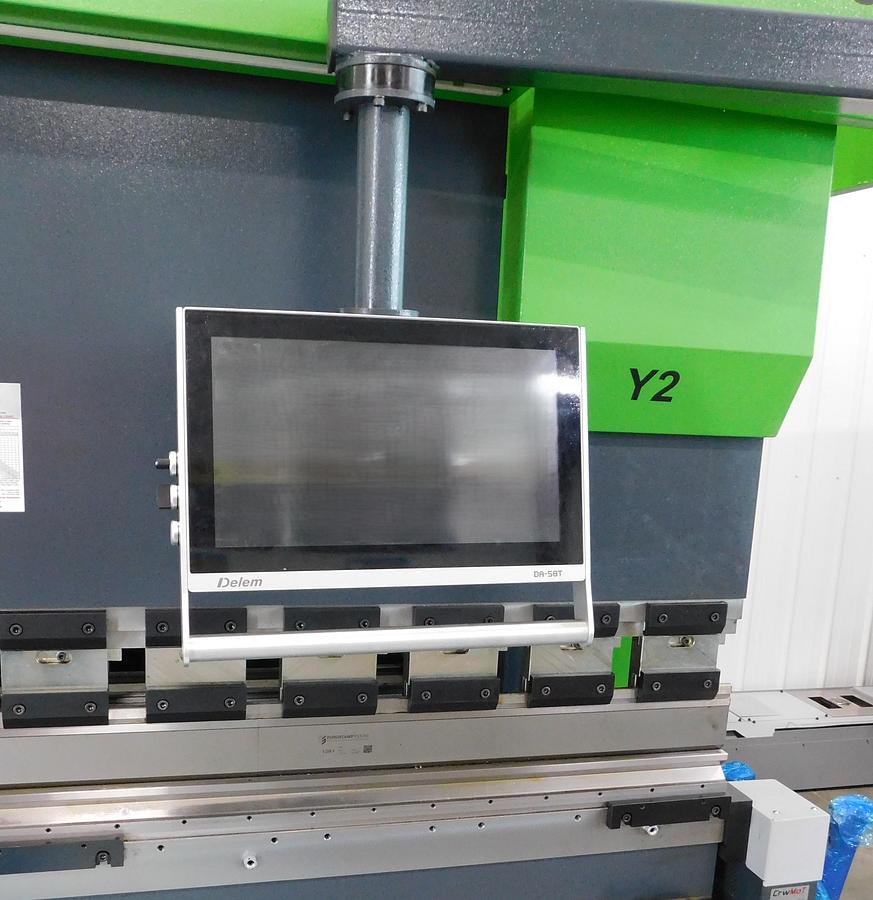

Delem DA58T Control (Y1/Y2, X, R & Crowning)        Foot pedal w/E-stop

Rexroth Hydraulic Systems                                         Side & rear guards

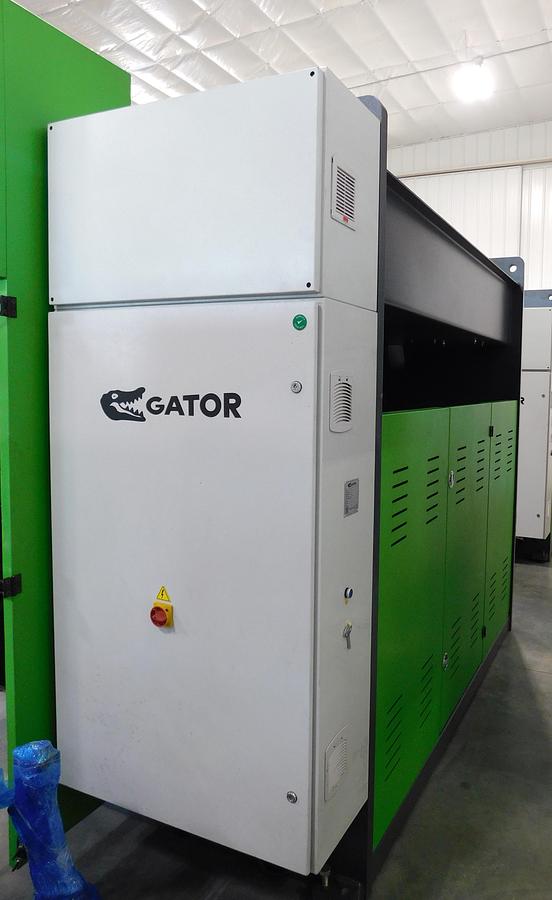

Siemens electrics                                                        DSP laser guards

(2) support arms on rail                                               Gooseneck punch Euro stamp 1281 85

Work light                                                                    4-way Vee Die Euro stamp 2067

Specifications

ManufacturerGator 10' x 135 Ton CNC Press Brake
ModelXERUS 31120
ConditionNew
Serial NumberXERUS 31120-010
Stock Number11234
Bending force135 ton
Bending length122"
Distance between housings100"
Throat gap16.1"
Maximum open height21.2"
Stroke10.2"
Ram approach speed378 IPM
Ram bending speed23.6 IPM
Ram return speed307 IPM
Table width2.36"
Bed height34.6"
Oil capacity37 gallons
Motor HP480V, 3 PH, 15 HP
Backgauge reach29.5"
R axis stroke7.9"
Machine overall dimensions144" x 80" x 111" Tall
Machine weight19,000 LBS
