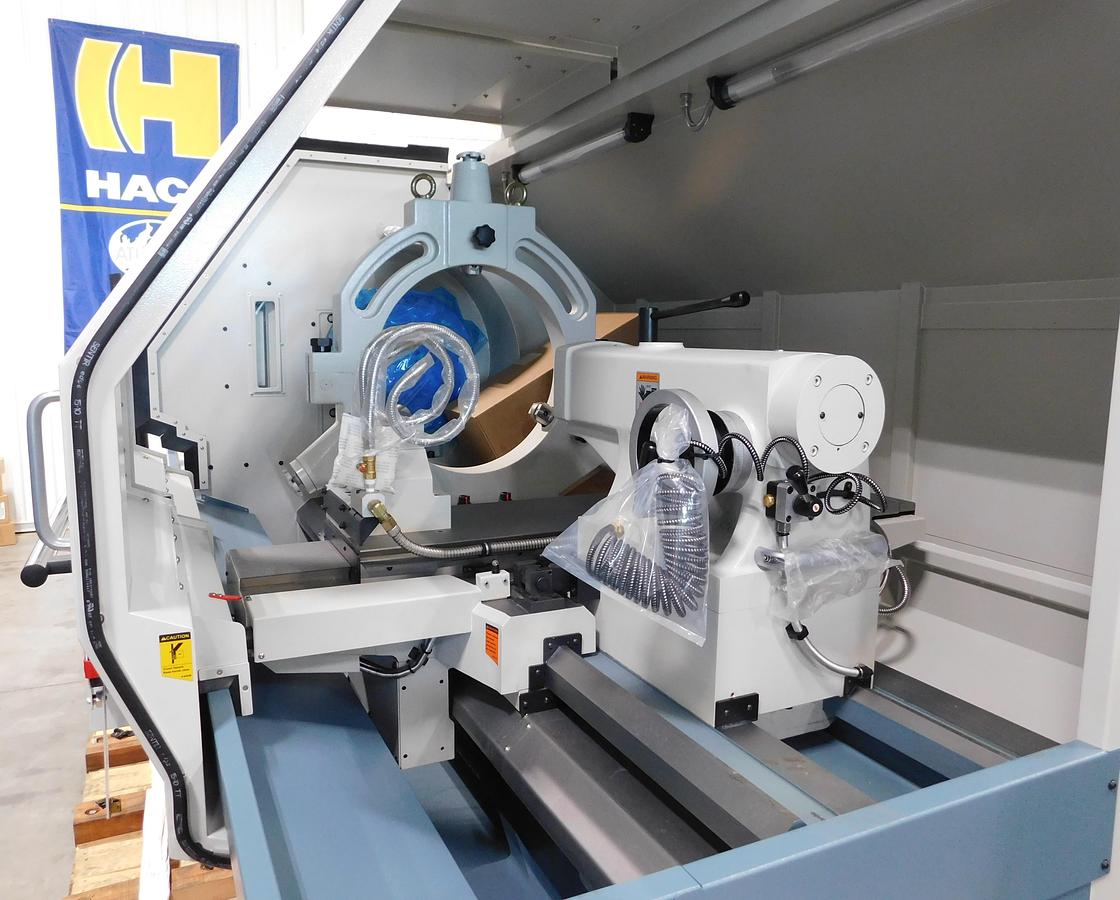

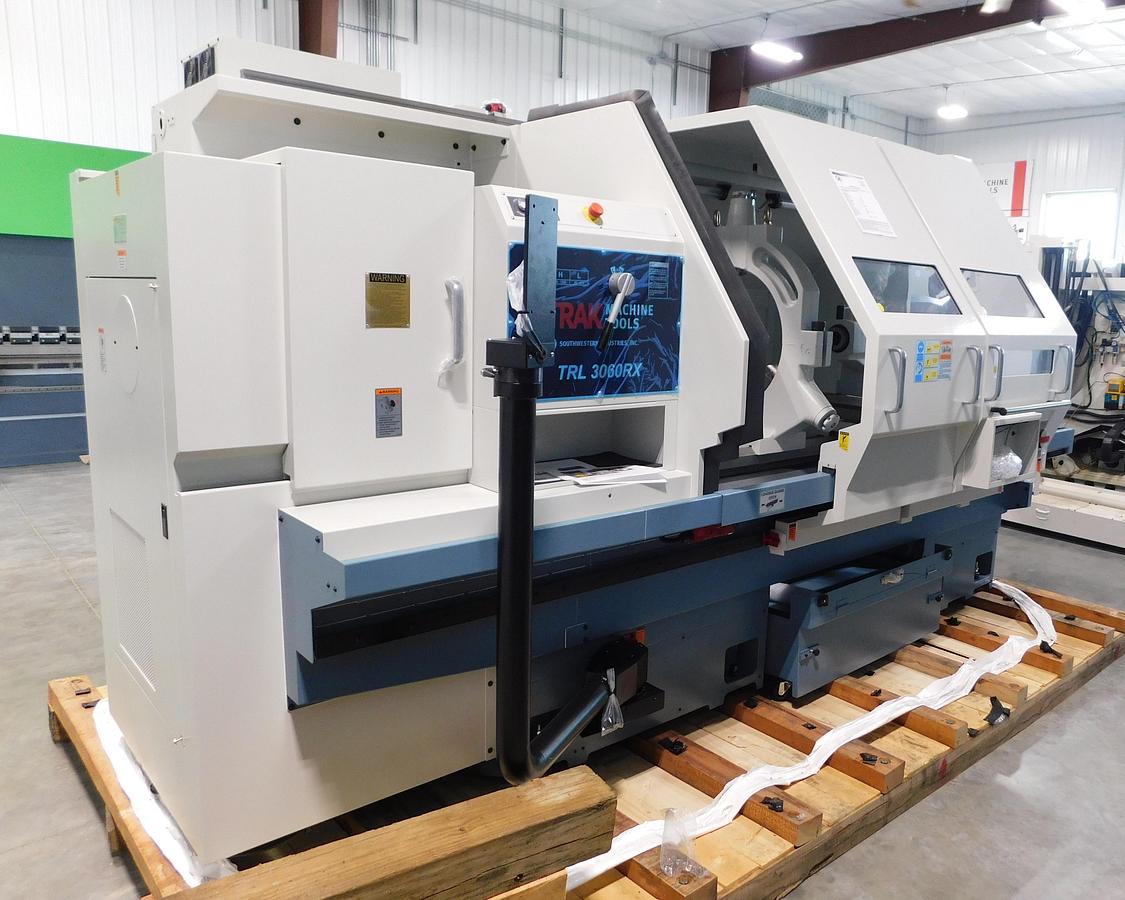

TRAK TRL 3060RX CNC Lathe w/RLX Control TRL 3060RX
Featured
TRAK TRL 3060RX CNC Lathe w/RLX Control TRL 3060RX
$205,397 (USD)
Location:Albert Lea, MN
or
Call 712-737-8700
Description
Equipped with:
Advanced features w/verify
DXF converter
TRAKing
20” Buck chuck
Rear chuck adapter
Chip conveyor
Remote stop/go switch
Steady rest
Tooling kit – 1 ¼”
Specifications
| Manufacturer | TRAK TRL 3060RX CNC Lathe w/RLX Control |
| Model | TRL 3060RX |
| Condition | New |
| Serial Number | 254EU001 |
| Stock Number | 11241 |
| Height of centers | 16.5" |
| Distance between centers | 60" |
| Swing over bed | 33" |
| Swing over saddle wings | 33" |
| Length of gap | 15.5" |
| Swing over gap | 43.5" |
| Swing over cross slide | 21.2" |
| Maximum cutting length | 60" |
| Cross slide travel | 20.5" |
| Tool section max | 1.5" |
| Coolant tank capacity | 35.6 gallons |
| Coolant pump motor | 1/4 HP |
| Bed width | 18" |
| Bed height | 15.75" |
| Spindle nose | A2-11 |
| Spindle through hole | 6.3" |
| Spindle taper | Nonstandard taper in spindle |
| Taper in reduction sleeve | MT#6 |
| Spindle diameter front bearing | 7.87" |
| Number of bearings | 2 |
| Number of spindle speed ranges | 2 |
| Spindle speed range | (L) 200-415, (H) 40-1300 RPM |
| Spindle motor | 30 HP |
| Voltage | 480 |
| Quill travel | 8" |
| Quill diameter | 4.13" |
| Quill taper | 6 MT |
| Maximum rapid | 400 IPM on Z axis |
| Machine dimensions | 150.31" x 86.61" x 85.87" |
| Machine weight | 13,970 LBS |
