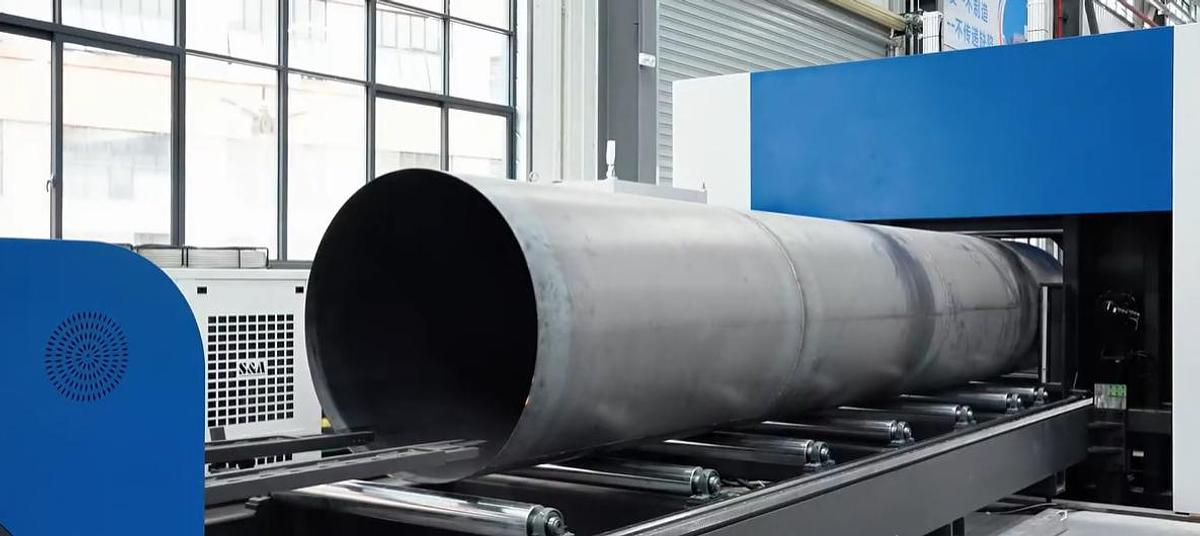

Gator Hawk 1000 5 Axis 20k Profile Laser
Featured
Gator Hawk 1000 5 Axis 20k Profile Laser
$590,000 (USD)
Location:Florida
or
Call 712-737-8700
Description
Equipped with:
Tube T or FS Cut Control
20k maximum resonator

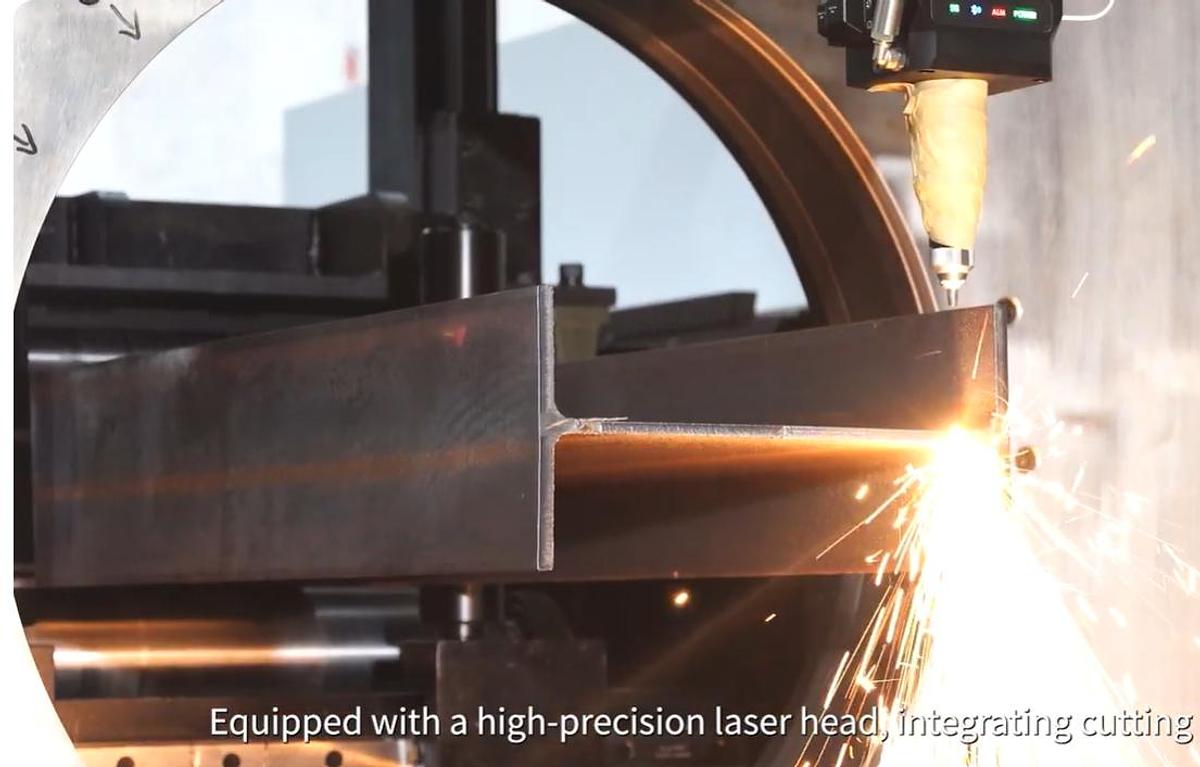

Boci or Raycus cutting head
Chiller
Nesting software
Dust collector (optional)
1 year warranty
Freight included
Specifications
| Manufacturer | Gator |
| Model | Hawk 1000 |
| Condition | New |
| Stock Number | 11258 |
| Capacity round tube | 6" to 39.4" |
| Capacity square tube | 6" x 6" to 33.5" x 33.5" |
| Capacity structural profile | Up to 33.5" |
| Maximum material infeed length | 60' |
| Maximum material weight | 11,000 LBS per tube |
| X axis travel | 41.3" |
| Y axis travel | 548" (45.7') |
| Z axis travel | 27.6" |
| B axis travel | +/- 360 degrees continuous rotation |
| A axis travel | +/- 45 degrees |
| Positioning accuracy | +/- 0.002" per 39" |
| Repeat position accuracy | +/- 0.002" |
| Minimum tube wall thickness | 0.20" |

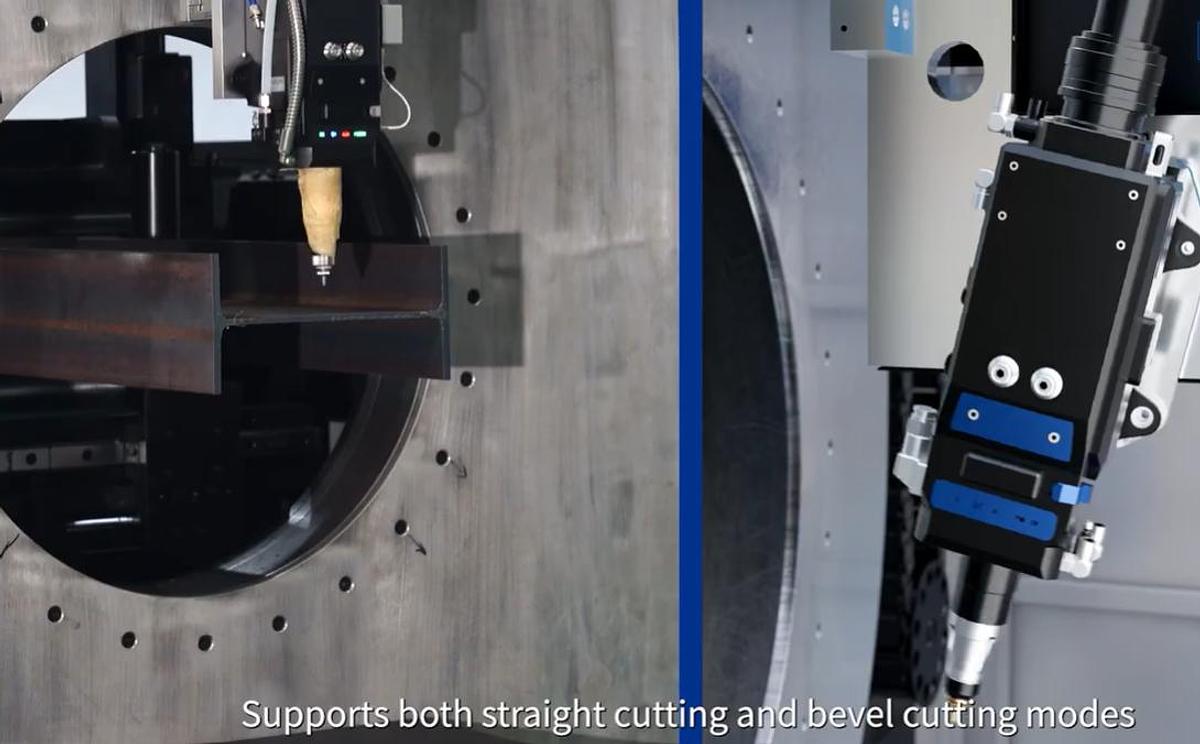

| Cutting types | Straight, bevel & contour |
| Loading method | Manual |
| Maximum acceleration | 0.2G |
| Machine dimensions | 86'L x 13.6'W x 13.1'H |
| Machine weight | 29,700 LBS |
