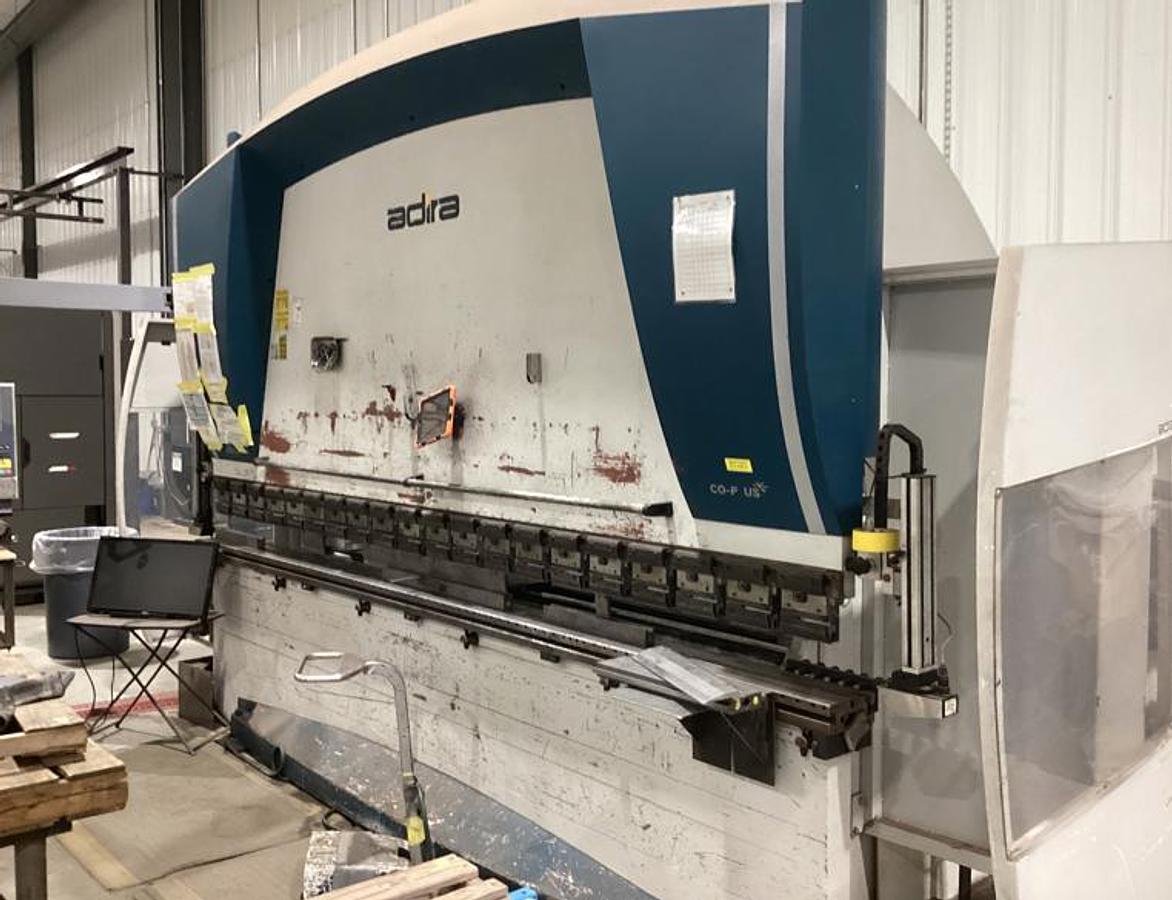

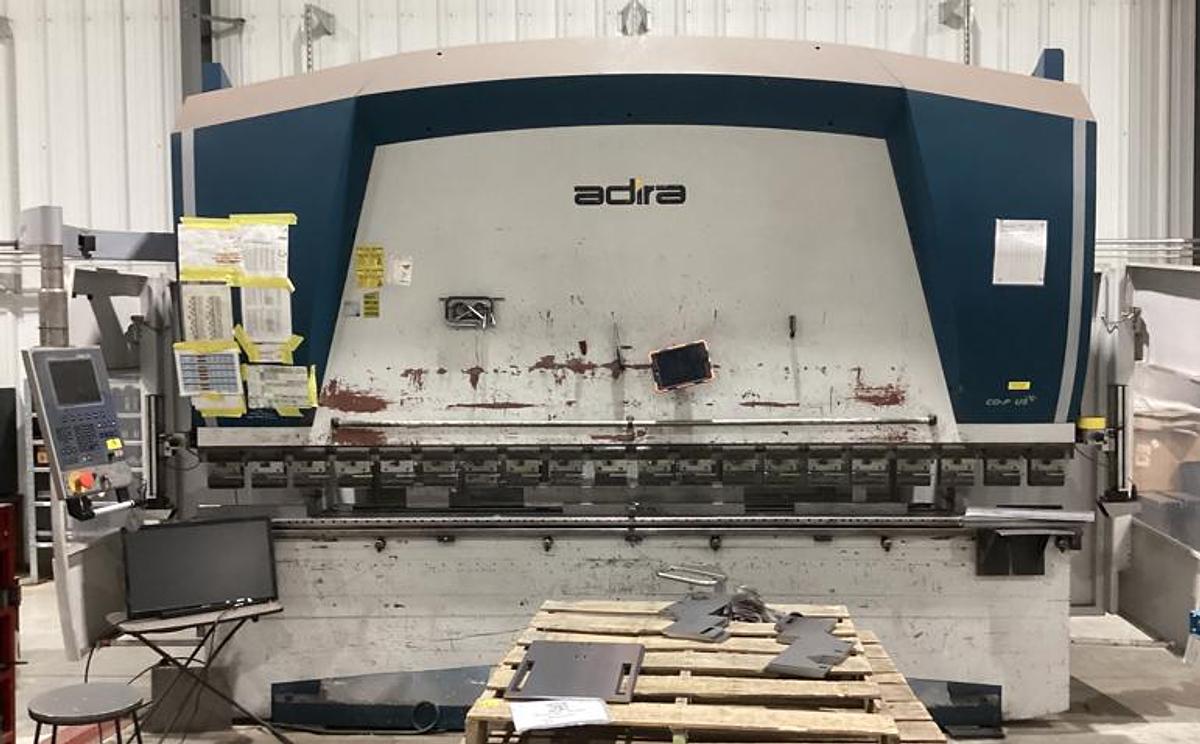

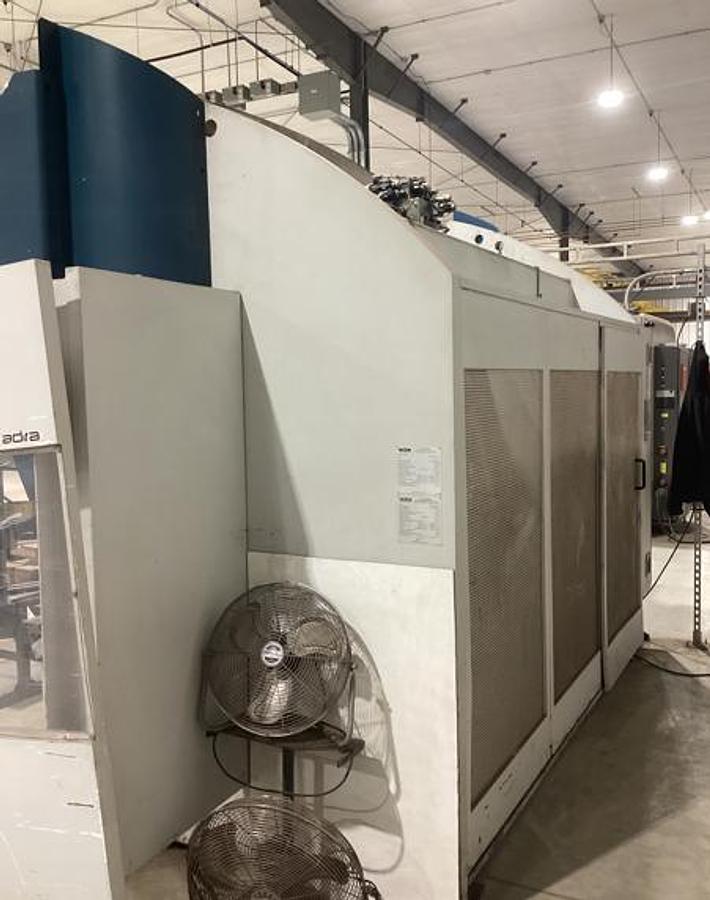

2008 Adira QIHD 22040PLS 13' x 242 Ton 7 Axis Hydraulic CNC Press Brake
2008 Adira QIHD 22040PLS 13' x 242 Ton 7 Axis Hydraulic CNC Press Brake
Contact us for price
Location:Iowa
or
Call 712-737-8700
Description
Equipped with:
Cybele Modeva 10 control
High speeds option
Wila crowning
Bend boost
Z1/Z2 CNC controlled backgauge fingers
Laser safe guarding
Specifications
| Manufacturer | Adira |
| Model | QIHD 22040PLS |
| Year | 2008 |
| Condition | Used |
| Serial Number | 7024/12980 |
| Stock Number | 11277 |
| Maximum tonnage | 242 ton |
| Bending length | 157.5" |
| Distance between housings | 124" |
| Throat depth | 12.6" |
| Maximum stroke | 7.87" |
| Maximum open height | 17.375" |
| Ram speeds (approach) | 260 IPM |
| Ram speeds (bending) | 19 IPM |
| Ram speeds (return) | 201 IPM |
| Backgauge travel | 24.8" |
| Backgauge speeds | 425 IPM |
| R axis travel | 7.87" |
| R axis speeds | 106 IPM |
| Machine dimensions | 204" x 77" x 128" |
| Machine weight | 33,000 LBS |
