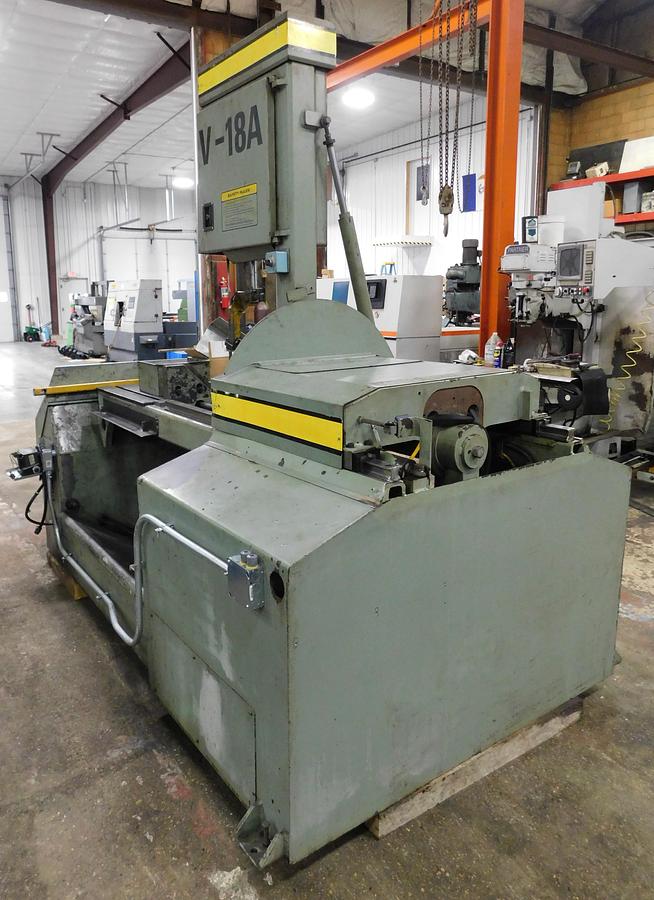

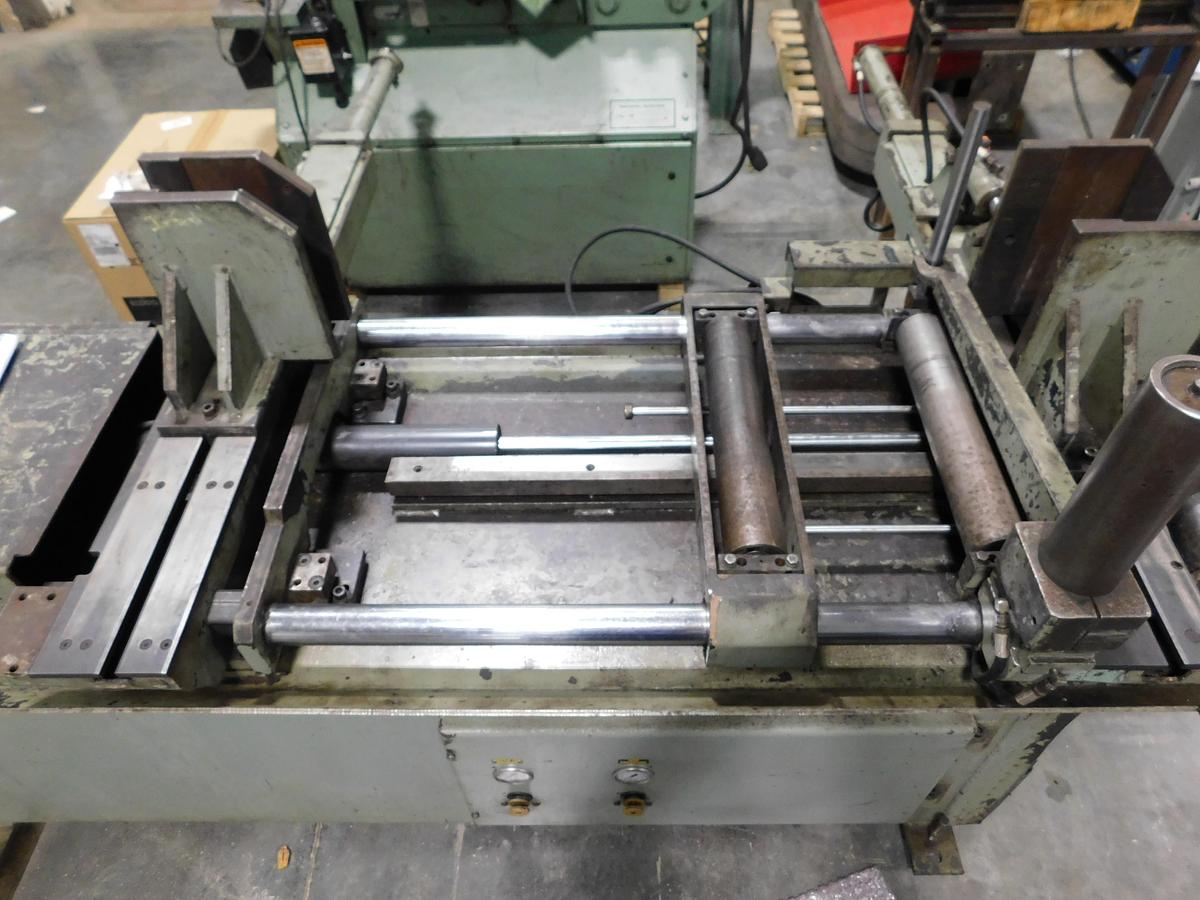

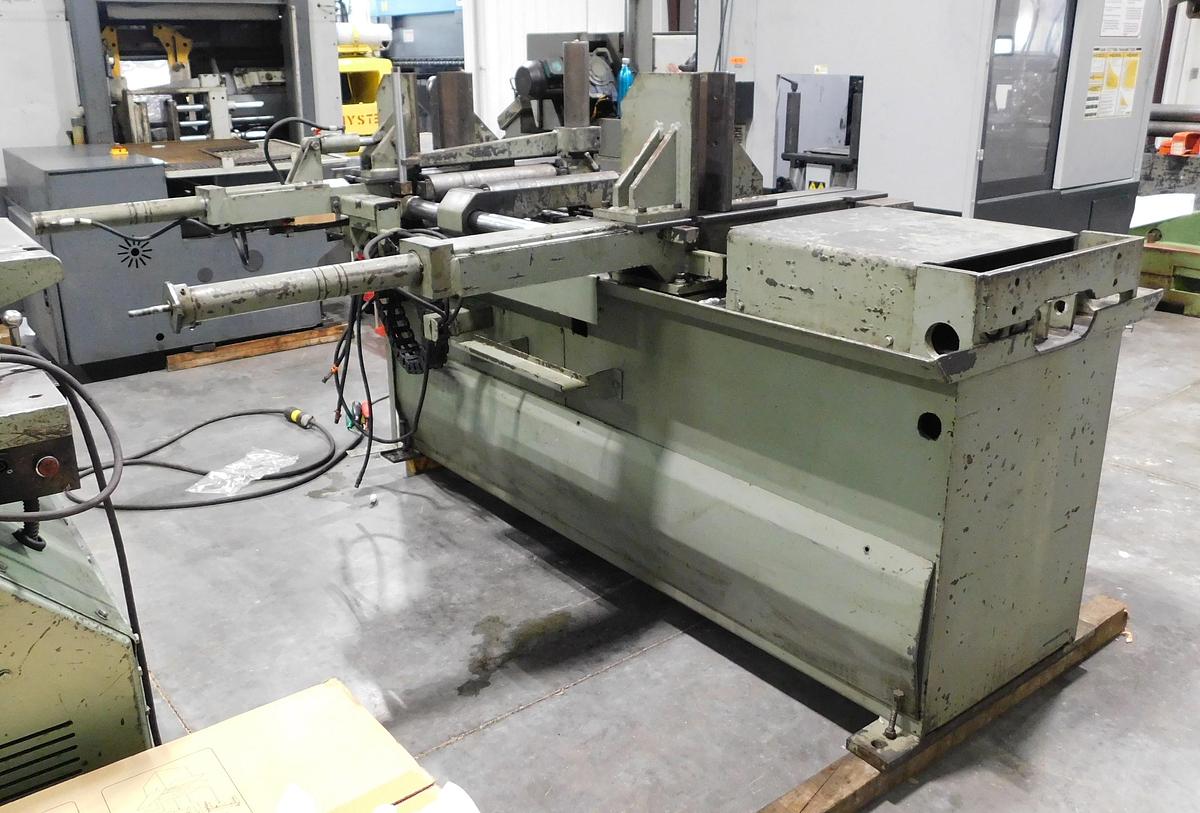

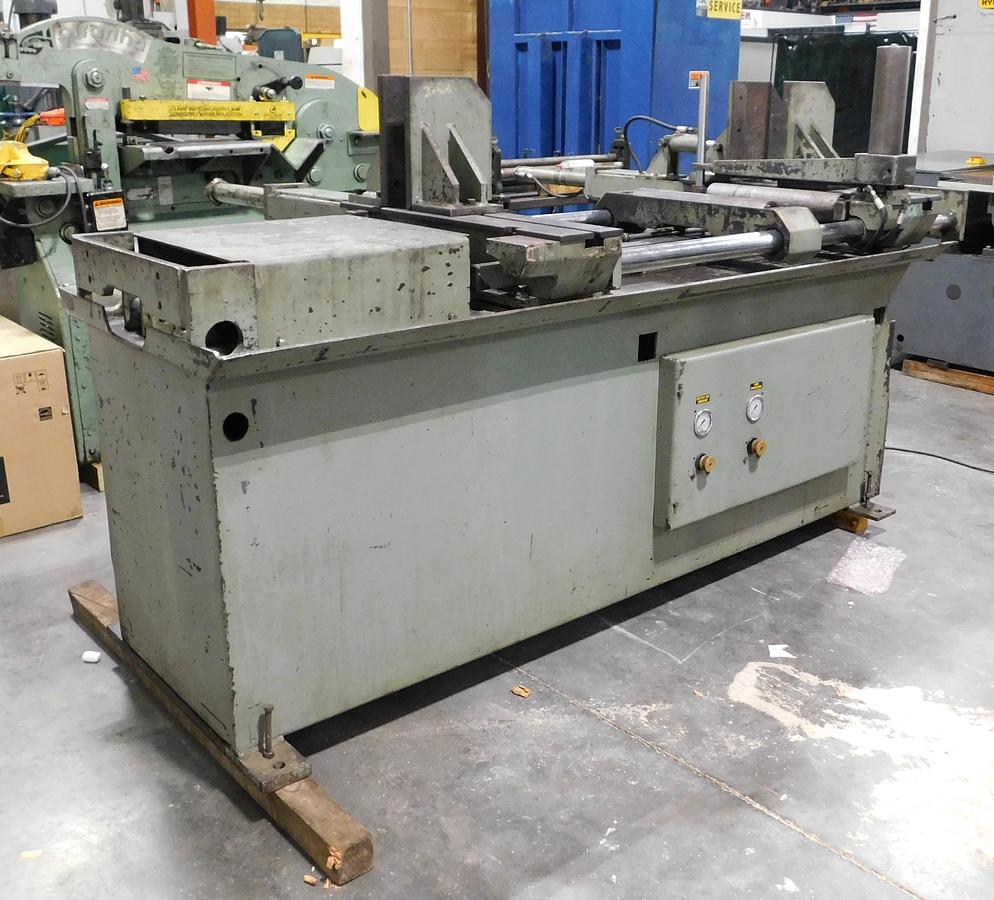

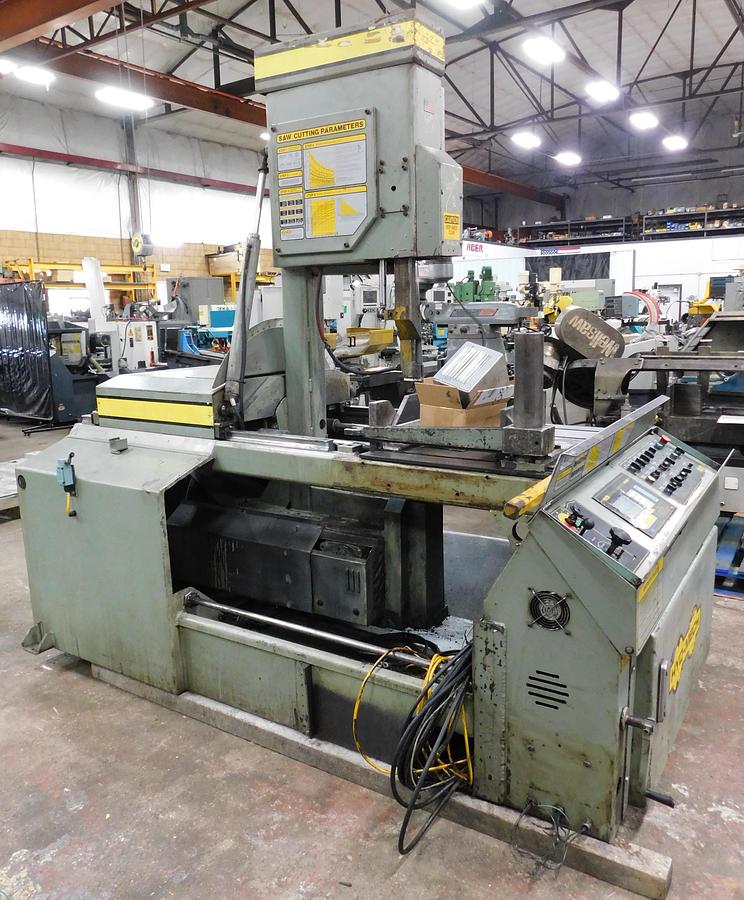

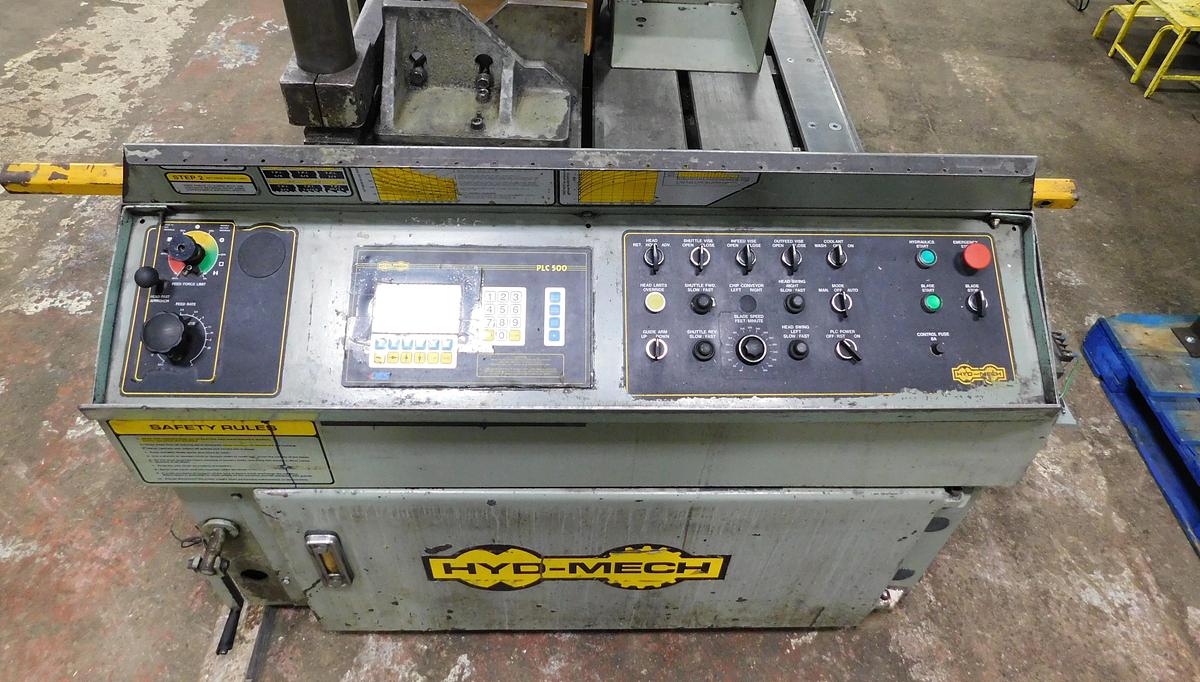

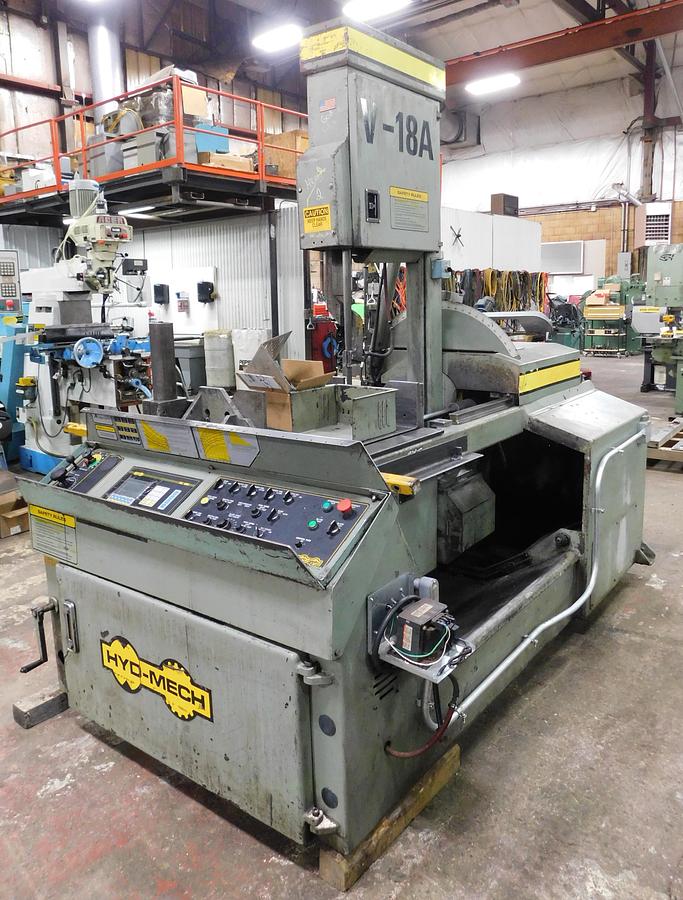

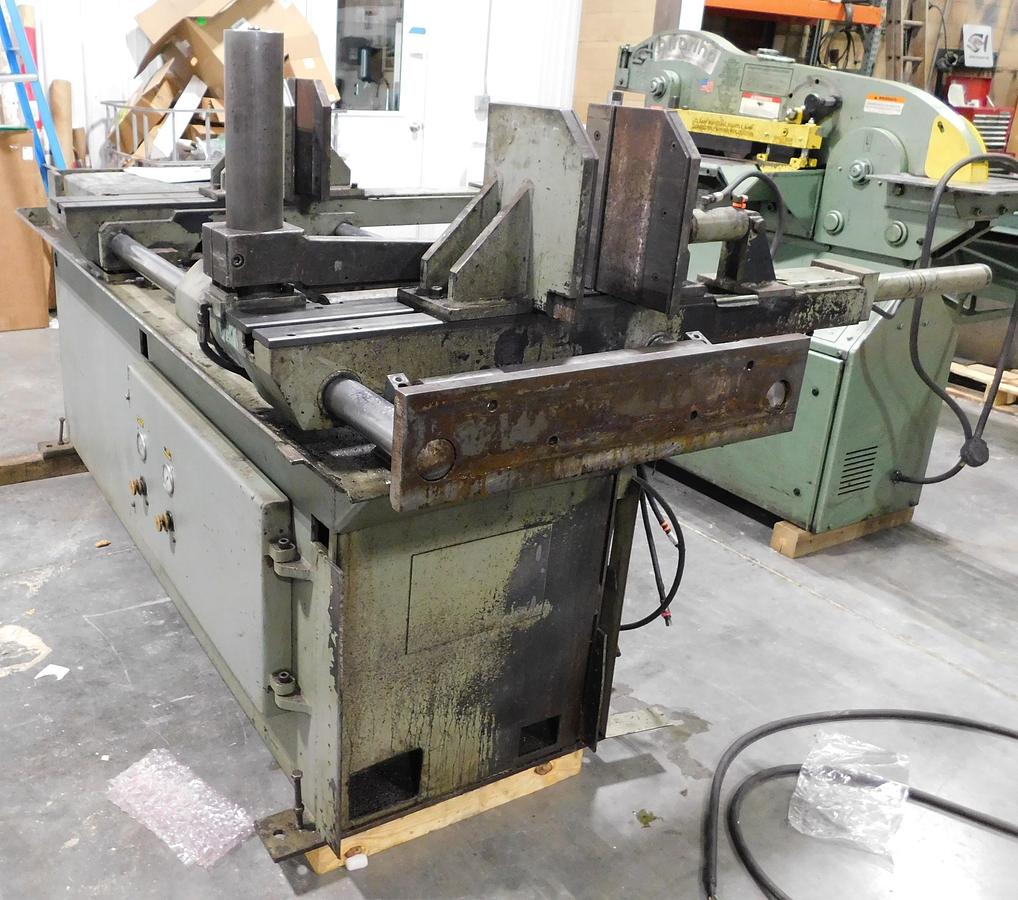

1998 Hyd-Mech V-18A 18" x 20" Vertical Automatic Bandsaw
1998 Hyd-Mech V-18A 18" x 20" Vertical Automatic Bandsaw
$25,500 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:
Hydraulic tilt
Hydraulic blade tension
Hydraulic blade guide
Bundling
Specifications
| Manufacturer | Hyd-Mech |
| Model | V-18A |
| Year | 1998 |
| Condition | Used |
| Serial Number | K0298097 |
| Stock Number | 11270 |
| Capacity | 18" x 20" |
| Capacity @ 45 degrees | 14-1/2" x 18" |
| Head miters | 45 degrees L & R |
| Blade speeds | 65-385 FPM |
| Blade size | 1.25" x 14' 11" |
| Head feed rate | 0-15 IPM |
| Feed pressure | 0-300 PSI |
| Shuttle capacity | 0-40", NC controls |
| Blade drive motor | 5 HP, 220/480V, 3 PH |
| Hydraulic motor | 5 HP, 220/480V, 3 PH |
| Machine dimensions | 102" x 117" x 104" |
| Machine weight | 8,000 LBS |
