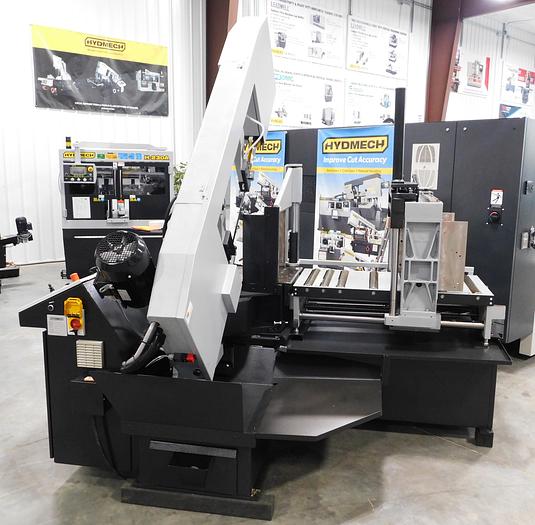

Hyd-Mech S-23A Automatic Pivot Style Bandsaw


Hyd-Mech S-23A Automatic Pivot Style Bandsaw

$52,250 (USD)

Orange City, IA


Equipped with:

Easy swing, heavy duty, cast iron saw head that can swing up to 60° in one direction

Cast iron shuttle features automatic multi-indexing up to 28.5” in a single stroke

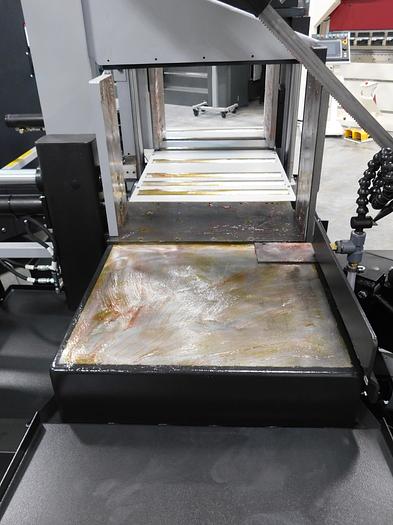

19 ¼” out feed table and 45 ¼” infeed table

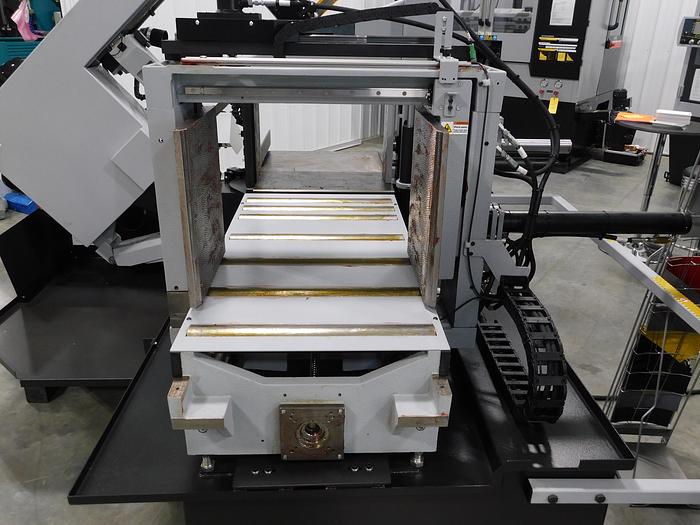

Full capacity, full stroking hydraulic vises

Cast iron band wheels

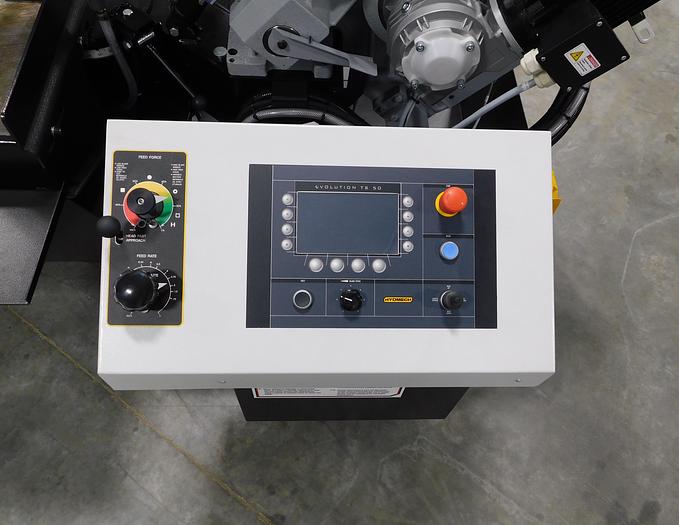

Automatic PLC touch screen control programmable up to 100 jobs w/20 in queue

Replaceable blade brush

Easy to read angle scale w/angle locking mechanism

Cast iron blade guide arms

Out of stock switch

Blade breakage switch

Mechanical band tensioning w/digital readout

Hydraulic positive down fee of sawing head

Pre-set, replaceable carbide guide inserts

Safety door interlocks

Flood coolant w/wash down hose

Laser light

Work light

Variable vise pressure


ManufacturerHyd-Mech S-23A Automatic Pivot Style Bandsaw
Serial Number10000000000772
Stock Number10670
Capacity rectangle at 90 degrees16" x 20"
Capacity round at 90 degrees16"
Capacity rectangle at 45 degrees16" x 14"
Capacity round at 45 degrees14"
Capacity rectangle at 30 degrees16" x 8-1/2"
Capacity round at 30 degrees8-1/2"
Blade size1-1/4" x 16' 10"
Blade drive8.8 HP VFD
Blade speeds75-350 SFM
Coolant tank capacity12 gallons
Work load5,000 LBS
Machine weight4,200 LBS
Table height33"
Dimensions101" x 95" x 61"
