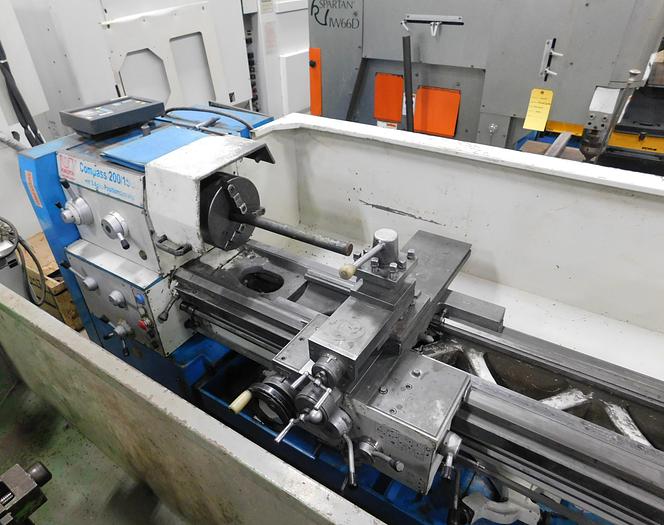

Knuth 16" x 60" Toolroom Lathe 200/1500
Sold
Knuth 16" x 60" Toolroom Lathe 200/1500
$6,250 (USD)
Location:Orange City, IA
Description
Equipped with:
3 jaw chuck
Follow rest
Steady rest
4 way tool post
Specifications
| Manufacturer | Knuth 16" x 60" Toolroom Lathe |
| Model | 200/1500 |
| Condition | Used |
| Serial Number | 9239 |
| Stock Number | 10687 |
| Actual swing over bed | 15.75" |
| Actual center distance | 59.05" |
| Cross slide travel | 12.99" |
| Top slide travel | 5.11" |
| Swing in gap | 20.86" |
| Spindle speeds (15) | 22-1800 RPM |
| Spindle mount | D1-6 |
| Spindle bore | 2.56" |
| Longitudinal feeds | 0.048"-2.280" |
| Cross feeds | 0.024"-1.140" |
| Metric threads | 0.5-28 mm |
| Threads inches | 1-56 TPI |
| Main motor | 5.5 kw |
| Machine weight | 5,000 LBS |
