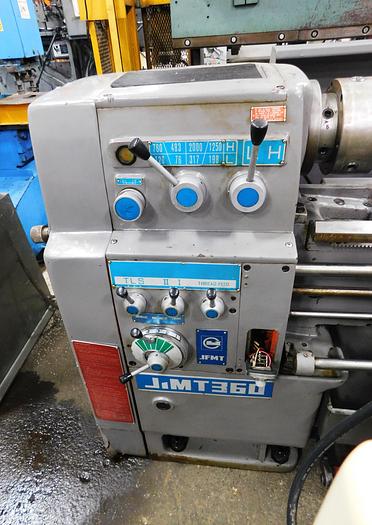

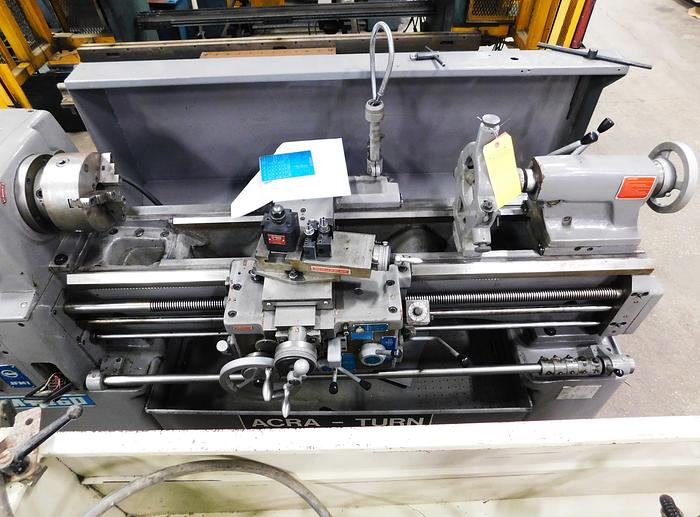

Acra-Turn 14 x 40 Toolroom Lathe JIMT360
Sold
Acra-Turn 14 x 40 Toolroom Lathe JIMT360
$6,950 (USD)
Location:Orange City, IA
Description
Equipped with:
8” 3 jaw chuck w/reversible top jaws
Dorian tool post and holders
4” diameter steady rest
Live center
Coolant
Specifications
| Manufacturer | Acra-Turn 14 x 40 Toolroom Lathe |
| Model | JIMT360 |
| Condition | Used |
| Serial Number | 78049044 |
| Stock Number | 10712 |
| Swing over bed | 14" |
| Swing over cross slide | 8-1/4" |
| Swing in gap | 19" |
| Distance between centers | 41" |
| Hole through headstock | 1-9/16" |
| Spindle nose | D1-5 |
| Spindle speeds | 76-2000 RPM |
| Feeds | 0.0015-0.0196 (48) |
| Threads (inch) | 4-48 (23) |
| Threads (metric) | 0.5-6.5 (17) |
| Taper in tailstock | 4 MT |
| Main motor | 5 HP |
| Machine weight | 3,750 LBS |
| Dimensions | 85" x 33" |
