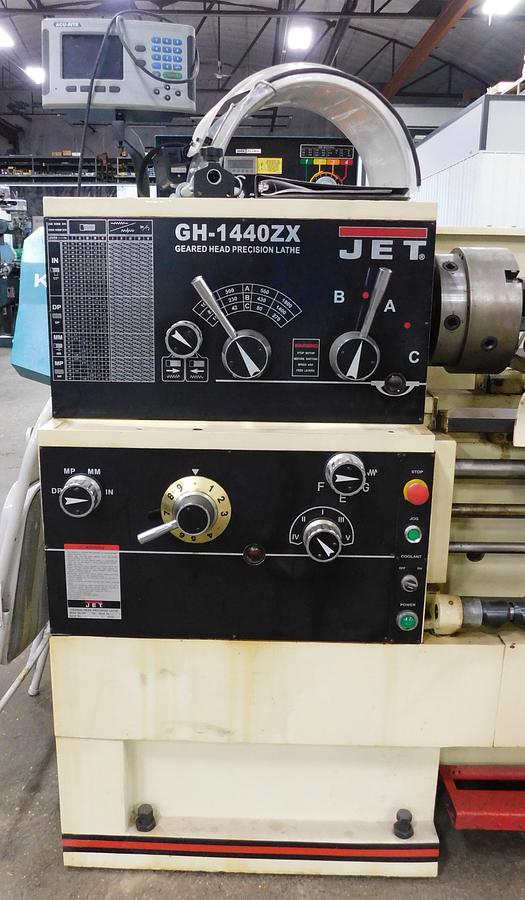

Jet 14" x 40" Toolroom Lathe GH14402X
Jet 14" x 40" Toolroom Lathe GH14402X
$19,500 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description

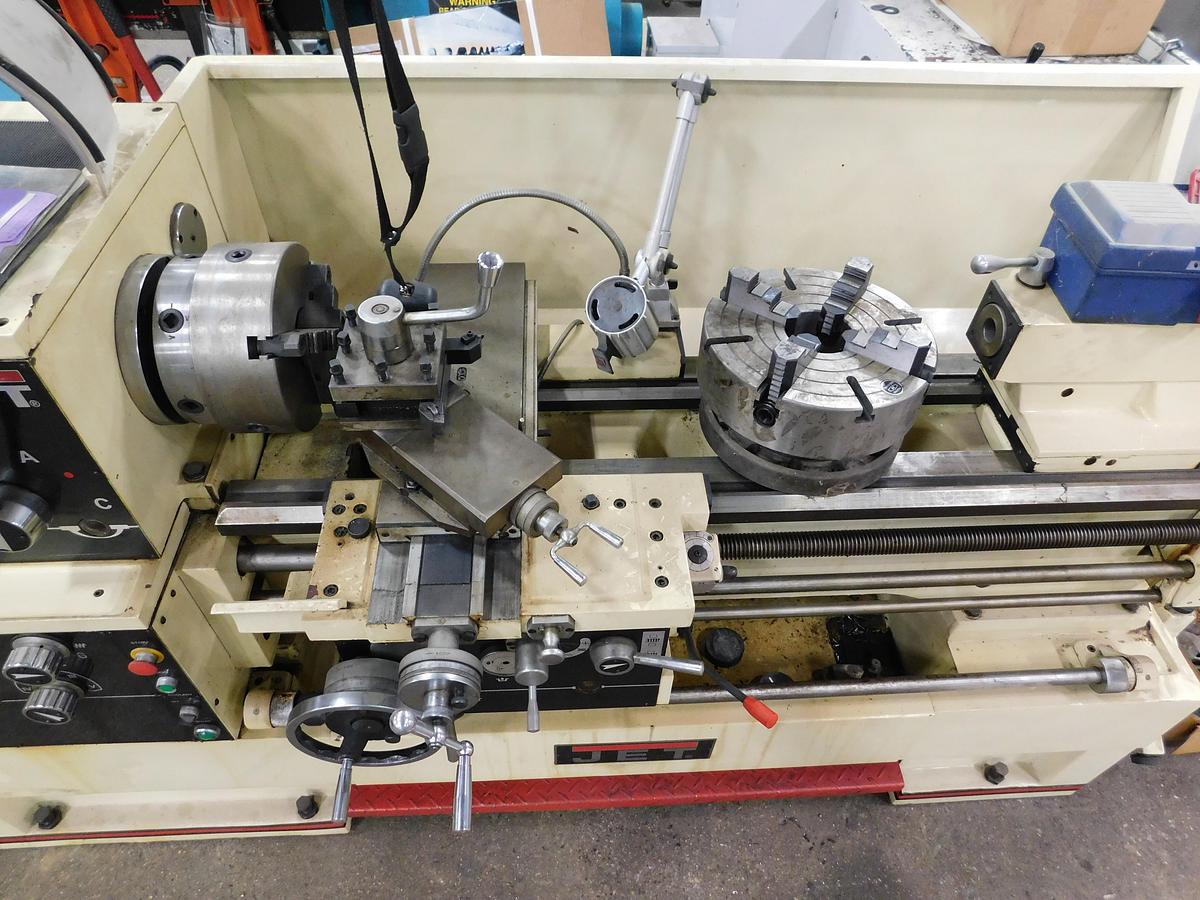

Equipped with:
10” 3 jaw chuck, 12” 4 jaw chuck
4 way tool post
12” face plate
Steady rest, Follow rest * Machine is in like new condition.
Acu-Rite 2 axis DRO
Foot brake
Back splash
Specifications
| Manufacturer | Jet 14" x 40" Toolroom Lathe |
| Model | GH14402X |
| Condition | Used |
| Serial Number | 077594 |
| Stock Number | 11119 |
| Swing over bed | 15" |
| Swing over cross slide | 7-2/3" |
| Swing in gap | 23-5/8" |
| Distance between centers | 40" |
| Hole through spindle | 3-1/8" |
| Spindle mount | D1-8 |
| Spindle speeds | 42-1800 RPM (12) |
| Feeds | 0.0015-0.0913 |
| Threads, inches | 1-5/8-72 TPI (61) |
| Threads, metric | 0.05-20 mm (24) |
| Tool size | 1" x 1" |
| Tailstock taper | 4MT |
| Main motor | 7-1/2 HP |
| Machine weight | 5,200 LBS |
