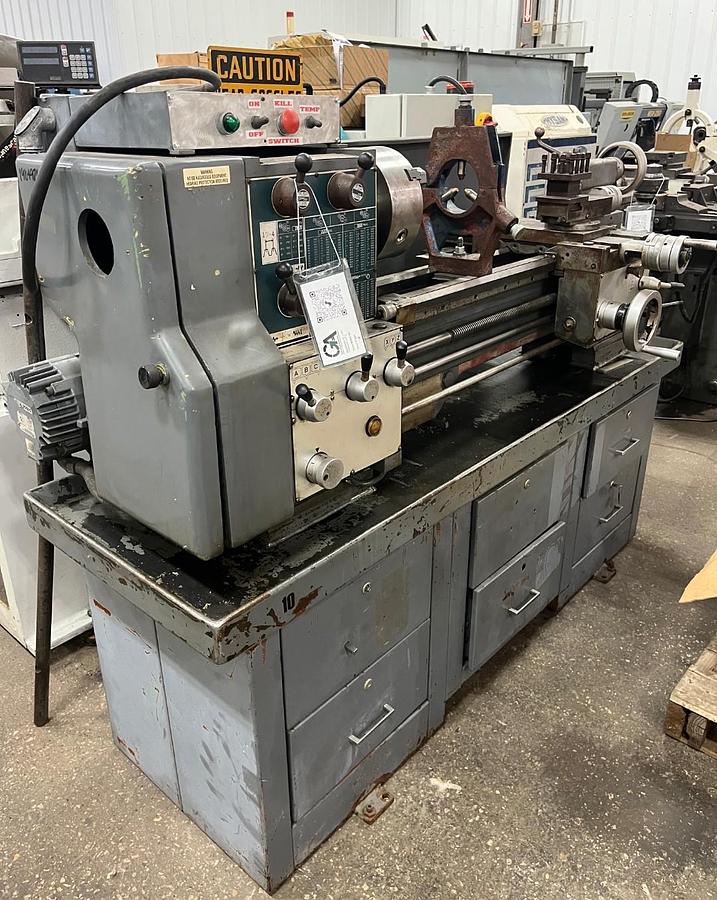

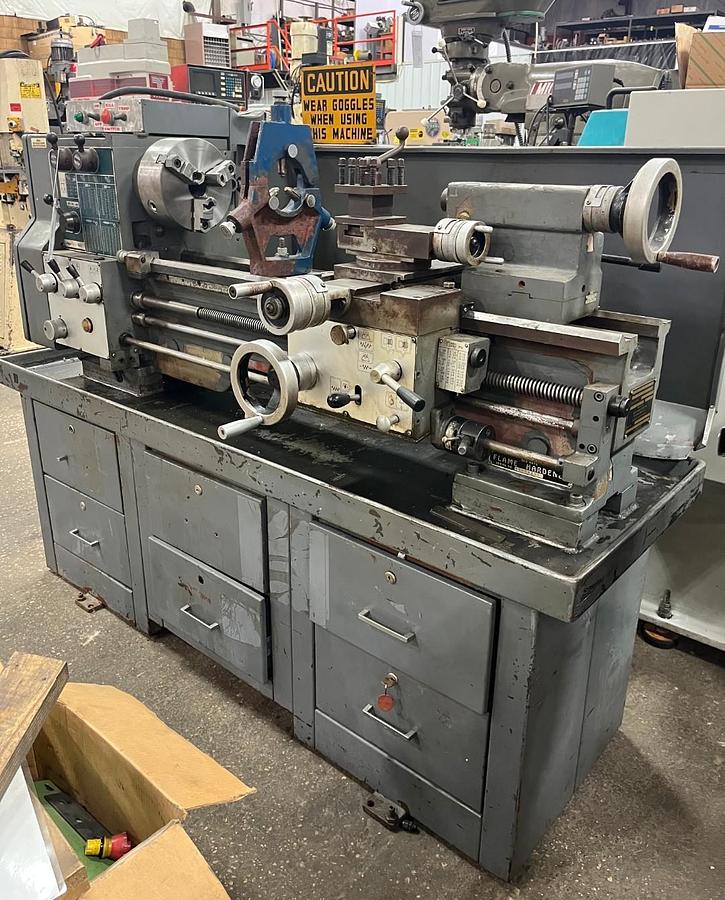

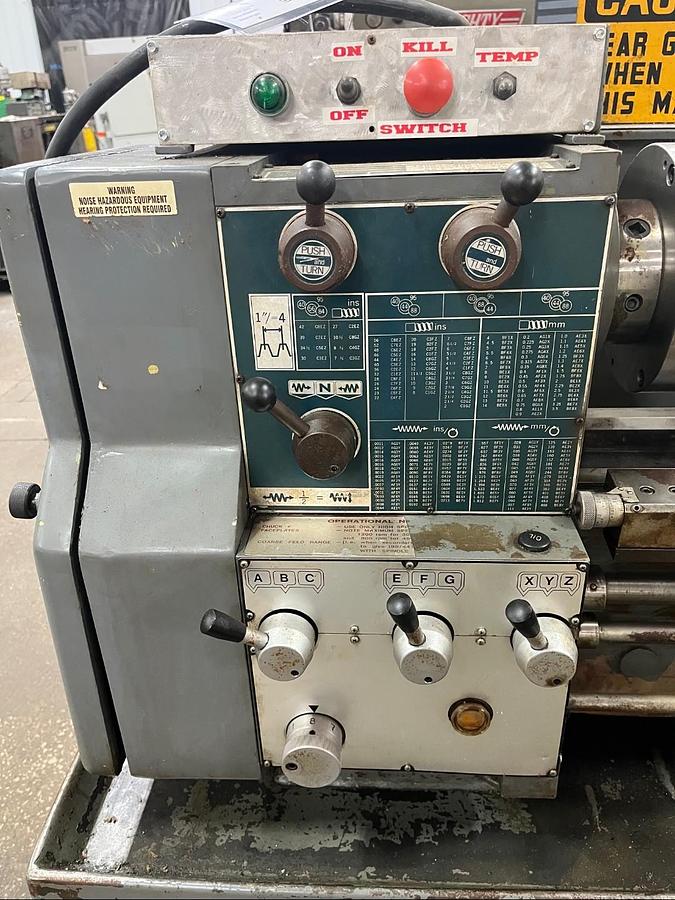

1988 Southbend 13" x 32" Toolroom Lathe 4229
1988 Southbend 13" x 32" Toolroom Lathe 4229
$4,750 (USD)
Location:Orange City, IA
or
Call 712-737-8700
Description
Equipped with:

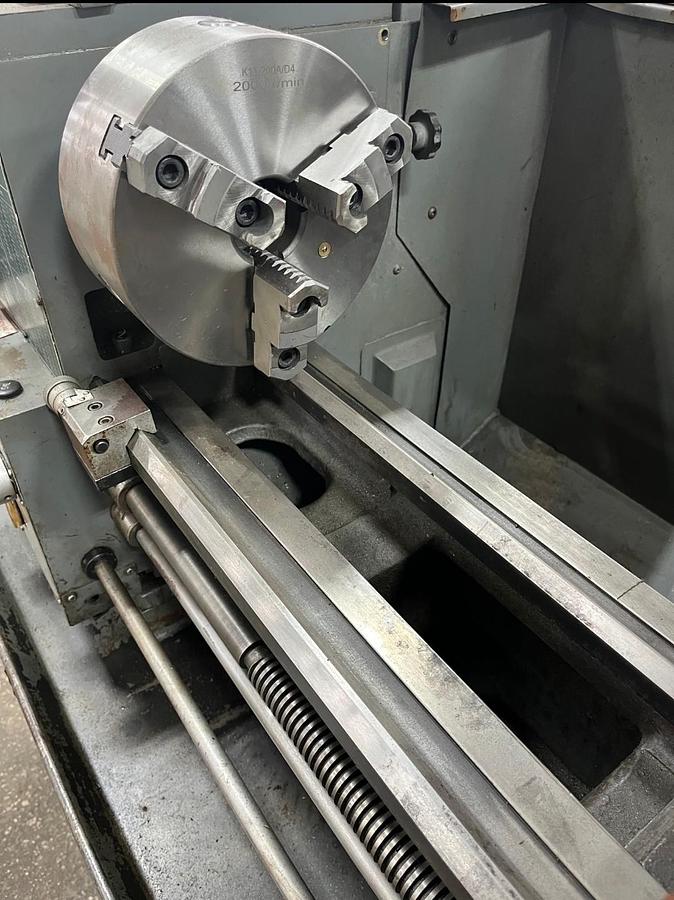

8” 3 jaw chuck w/removable jaws
Steady rest

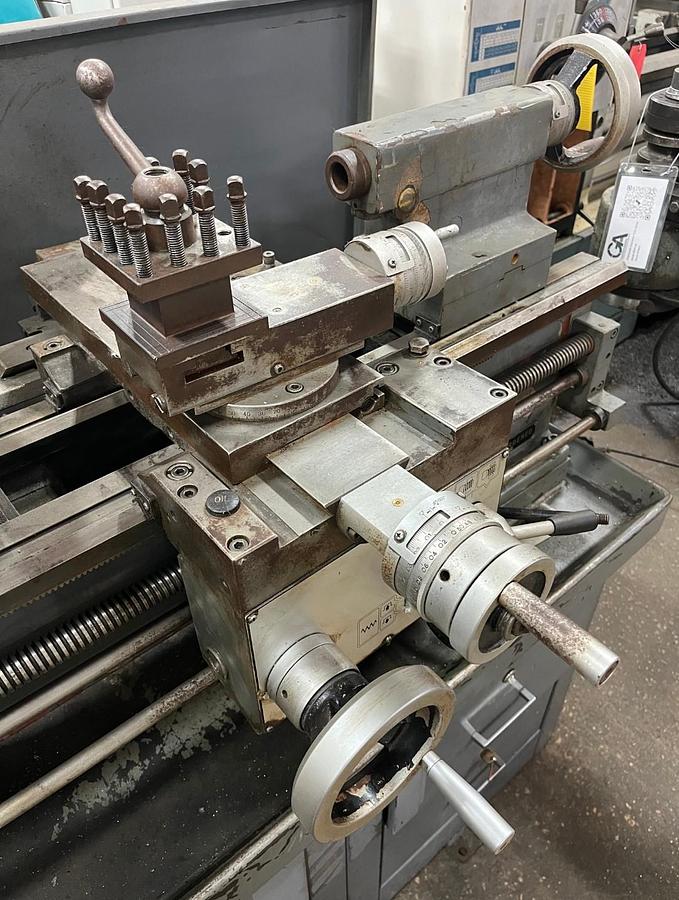

4 way tool post
Taper attachment
Thread chasing dial
Bed stop
Mounted on cabinet w/drawers
Back splash
12” face plate, 7” dog plate
Follow rest
Specifications
| Manufacturer | Southbend 13" x 32" Toolroom Lathe |
| Model | 4229 |
| Year | 1988 |
| Condition | Used |
| Serial Number | 4229 |
| Stock Number | 11125 |
| Swing over bed | 13" |
| Swing over cross slide | 8.5" |
| Distance between centers | 32" |
| Spindle speeds | 40-2500 RPM (9 steps) |
| Feeds | 0.0011-0.0713 |
| Threads, inches | 2-56 TPI |
| Threads, metric | 1.0-14 mm |
| Spindle through hole | 1.5" |
| Main motor | 3 HP, 220/440V, 3 PH |
